Horn Control & Steering Wheel: Removal

Unbolt the mounting hardware and remove the bottom cover from steering column. Remove four screws, under steering wheel spokes, holding safety pad, then remove pad. Remove steering wheel nut and washer, then fit puller and remove wheel. With wheel removed, extract directional indicator assembly.

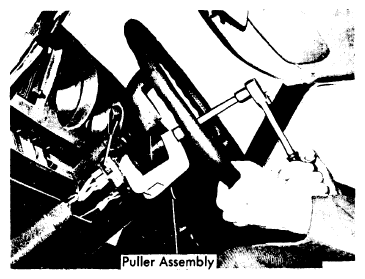

Fig 1: Using Puller Tool To Remove Steering Assembly
G09356022Courtesy of SAAB-SCANIA OF AMERICA, INC.
