Disassembly & Reassembly

Remove dust boots, pistons, cups and spring. Examine components for damage or excessive wear. Replace worn parts as required. Before reassembly, dip pistons and cups in clean brake fluid.

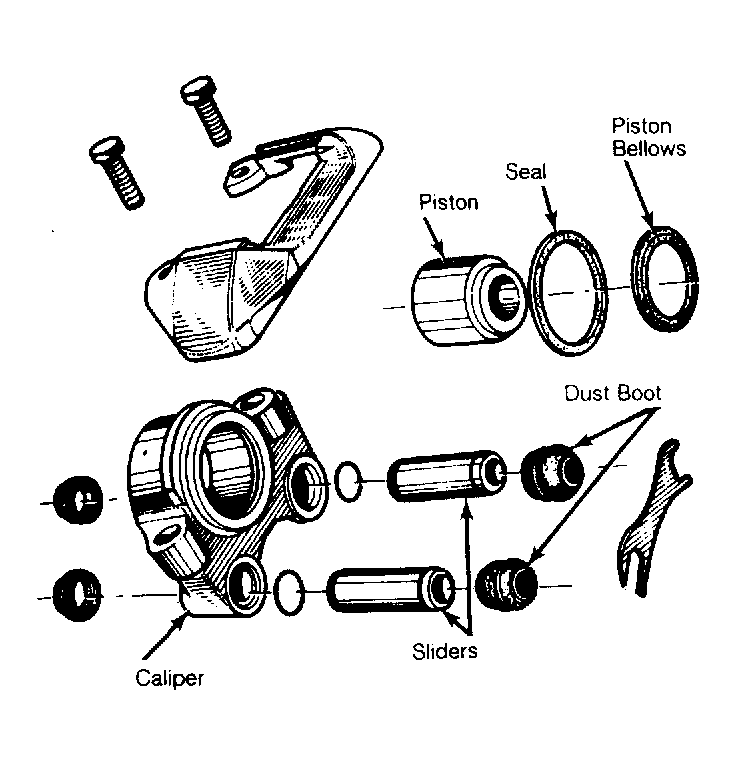

Fig 1: Exploded View of Caliper Assembly
G50136
