Horn Pad & Steering Wheel: Installation

  1. Position steering wheel on steering shaft. Install steering wheel nut and tighten.
  2. Using center punch, notch edge of steering column shaft to lock the nut in place. To complete installation, reverse removal procedure.

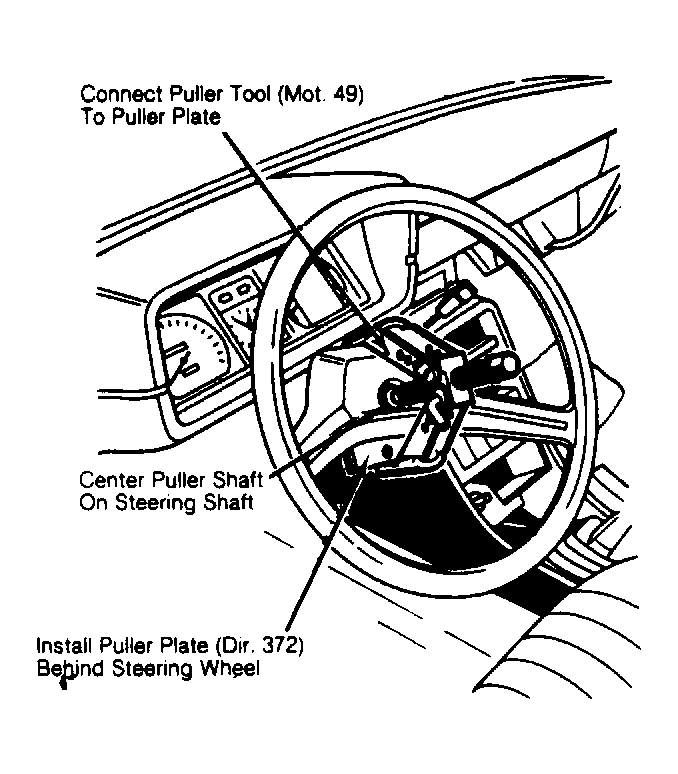

Fig 1: Removing Steering Wheel on Fuego
G50368
