Removal (Sportwagon)

Disconnect battery ground. Remove steering wheel and column covers. Remove holding bolt and screw. Unplug wiring and pull switch off. Light switch can be separated from the wiper/turn signal assembly by driving out the pivot pin. To install, reverse removal procedure.

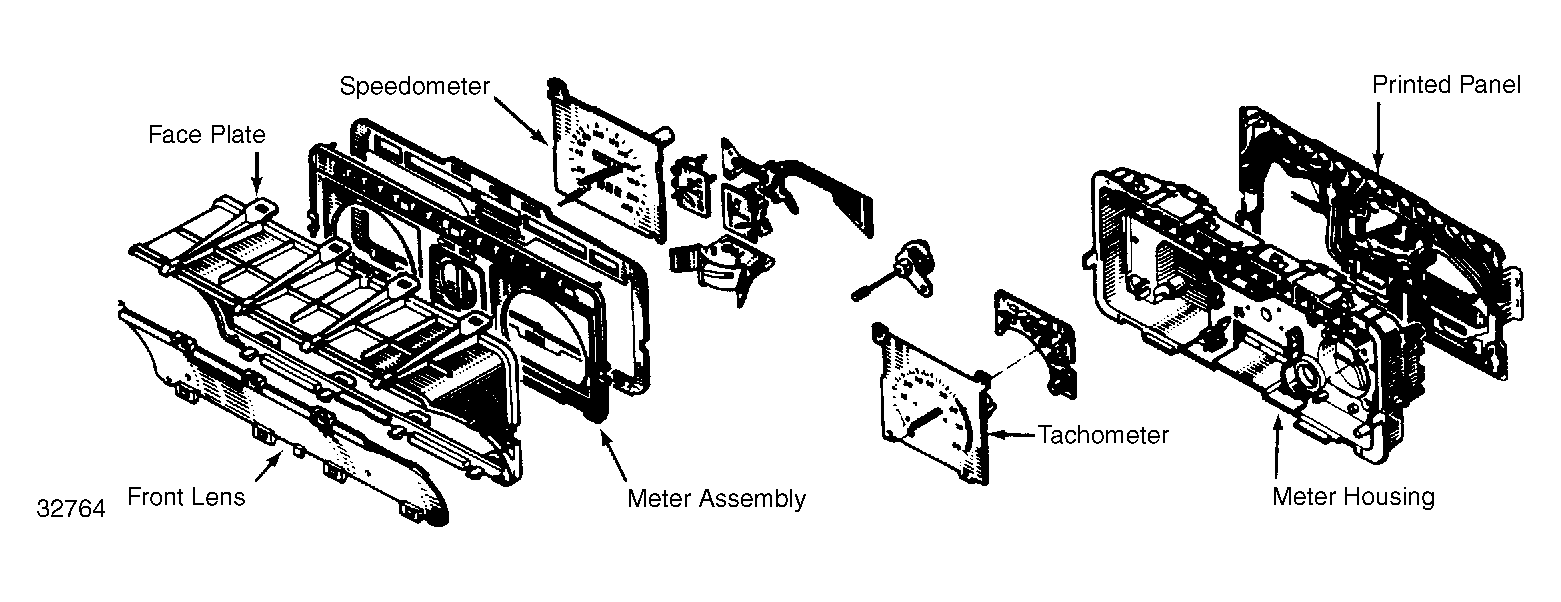

Fig 1: Exploded View Of Renault Instrument Panel
G32764
