Removal & Installation

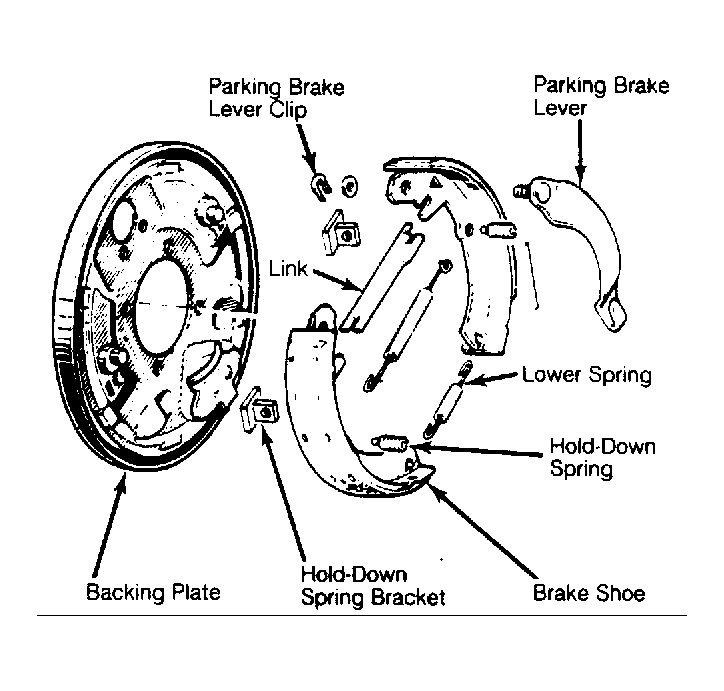

- Remove wheel, and brake drum from vehicle. Install wheel cylinder clamp, then remove upper brake shoe return spring.
- Disconnect parking brake cable from actuator lever. Remove parking brake actuator link, and lower return spring.
- Unhook shoe hold-down springs, and remove brake shoes. To install, reverse removal procedure.
