Suspension - Rear: Description

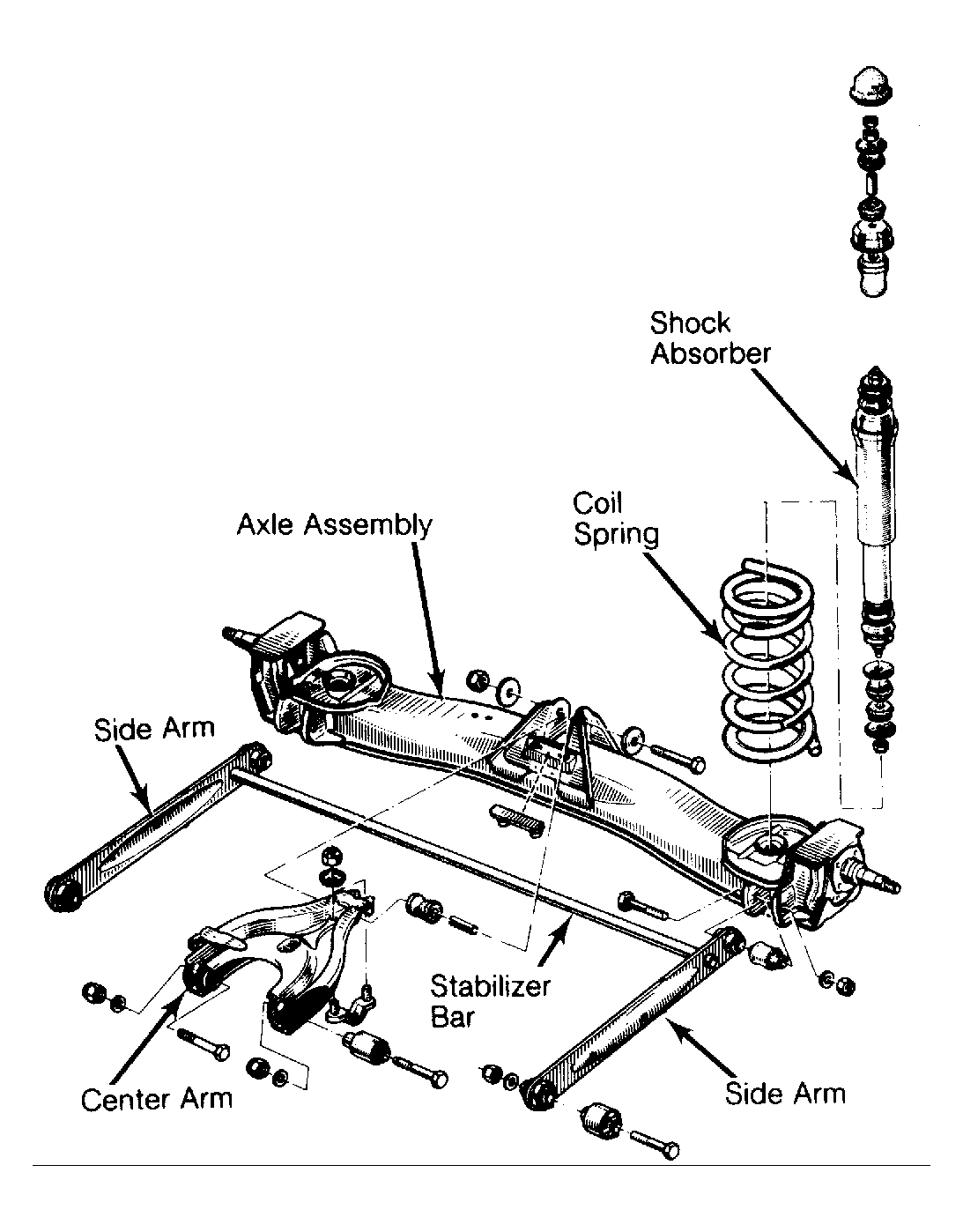

The trailing axle shaft used on rear suspension is supported by a center arm and 2 side arms. The pivot points are mounted in rubber bushings. A stabilizer bar is welded at each end to the side arms. Coil springs surround the shock absorbers.
