Ignition Switch/Column Lock: Removal

  1. Disconnect battery ground cable. Remove shroud from around switch assembly. Disconnect electrical connections. Turn ignition switch to "G" (Garage) and remove switch.

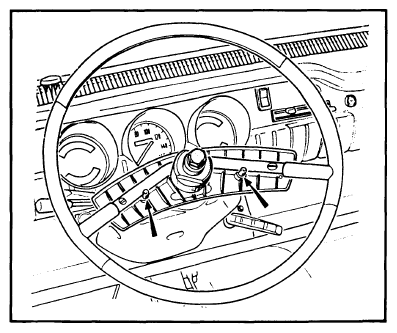

    Fig 1: Top View of Steering Wheel with Detail of Horn Pad Mounting Pins
    G09356561Courtesy of AMERICAN MOTORS/RENAULT CORP.
  2. Remove set screw and press in retaining catch with a small punch. Push switch body from rear to release it. See  Figure .
