Wiring Diagrams

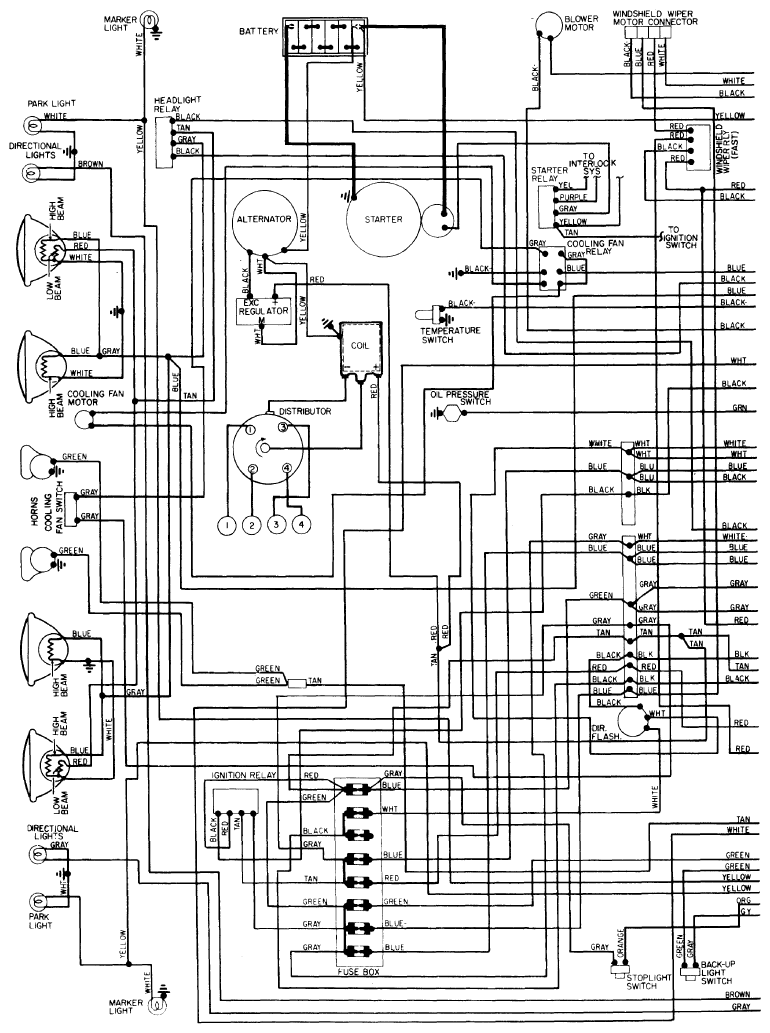

Fig 1: Wiring Diagrams - R-15 & R-12TL (1 of 2)

G09302862

Courtesy of AMERICAN MOTORS/RENAULT CORP.

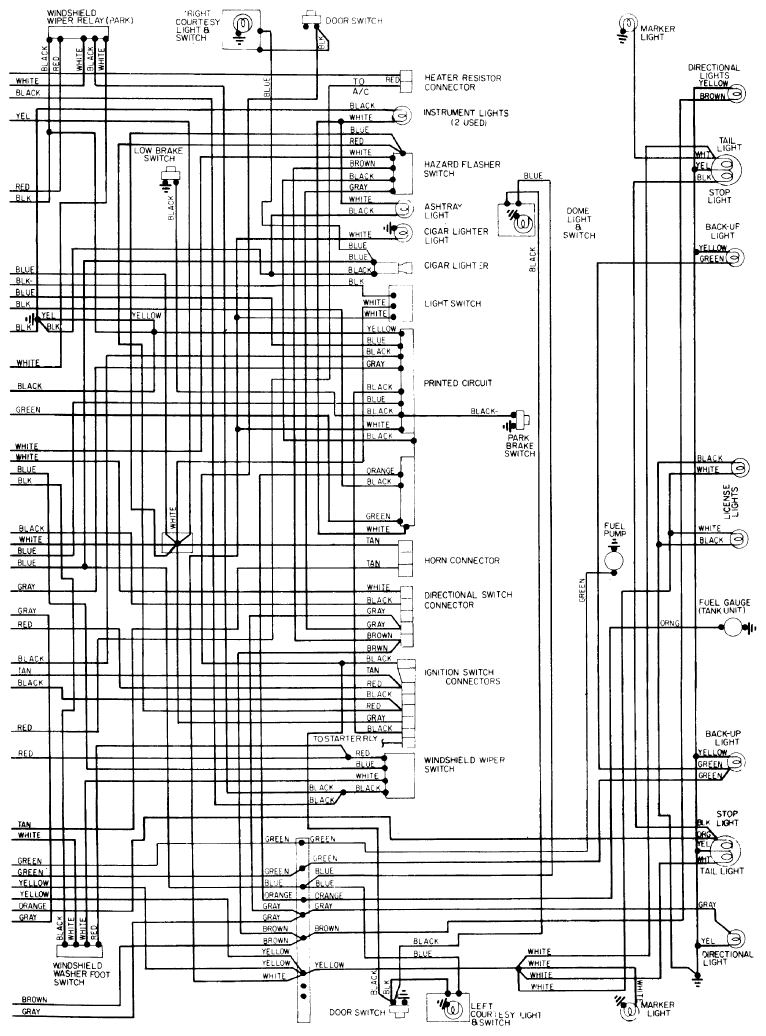

Fig 2: Wiring Diagrams - R-15 & R-12TL (2 of 2)

G09302863

Courtesy of AMERICAN MOTORS/RENAULT CORP.
