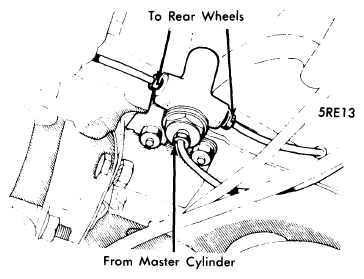

Brake Pressure Limiting Valve (Single Acting): Removal
Disconnect brake lines which feed brake pressure limiting valve and those that leave limiter to feed rear wheels. Remove nut securing limiter valve to rear crossmember and remove limiter. Limiting valve cannot be disassembled if found defective it must be replaced. The correct setting for limiter is stamped on one of the six flats of the input union hexagon.
