Brake Pressure Limiting Valve (Single Acting): Inspecting

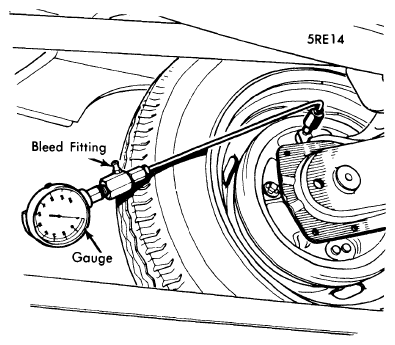

Using suitable pressure gauge, as shown in illustration, check limiter valve. Attach gauge to caliper being checked. Bleed all four wheel cylinder pistons. The wheel with gauge attached may be bled through bleeder provided in gauge. Gently press pedal downward and record pressure. If pressure is not approximately 1066 psi valve is defective and should be replaced.
