Master Cylinder Dual Piston (Tandem): Reassembly

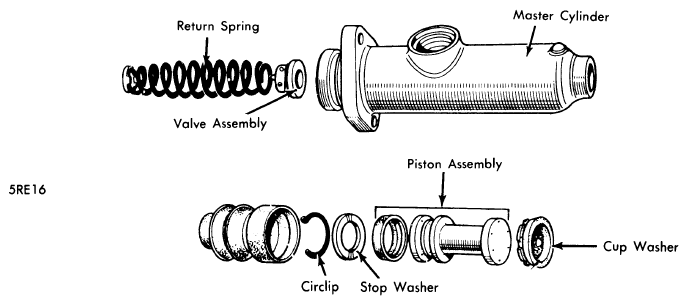

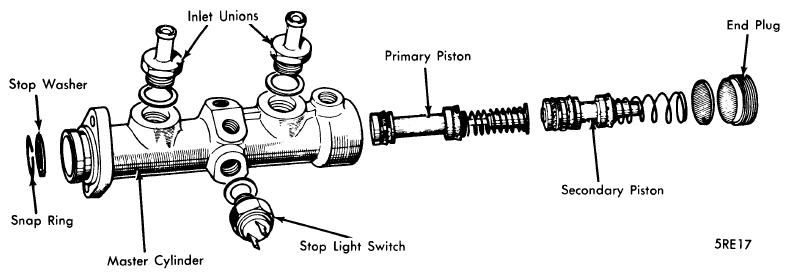

Smear bore and all reusable components with brake fluid. Refit in order: stop washer, snap ring, primary piston, and secondary piston. Fit new copper seal and screw in end plug. Assemble stop light switch and inlet unions. After reinstallation, bleed hydraulic system.
BRAKE SPECIFICATIONS
| Application | Measurement | |||
|---|---|---|---|---|
| Rotor Diameter (All Models) | 10.25" (260 mm) | |||
| Rotor Thickness (All Models) | 256--.262" | |||
| Friction Pad Thickness (All Models) | 406" (10 mm) | |||
| Master Cylinder Diameter | ||||
| 1094, 1095, 1130 & 1132 | 867" (22 mm) | |||
| 1131, 1133, 1190 & 1192 | (1)813" (20.6 mm) | |||
| Wheel Cylinder (All Models) | ||||
| Front | 1.496" (38 mm) | |||
| Rear | 1.260" (32 mm) | |||
|
||||
TIGHTENING SPECIFICATIONS
| Application | Ft. Lbs. |
|---|---|
| Caliper Inlet Hose | 15 |
| Piston Shaft Nut | 10 |
| Caliper Bracket Mounting Nuts | 15-25 |
| Hub-to-Rotor | 25-40 |
| Deflector Nuts | 15-25 |
| Axle-to-Axle Tube | 35-40 |
