Removing Transmission Speed Sender

  1. Remove speed sender -1-  .

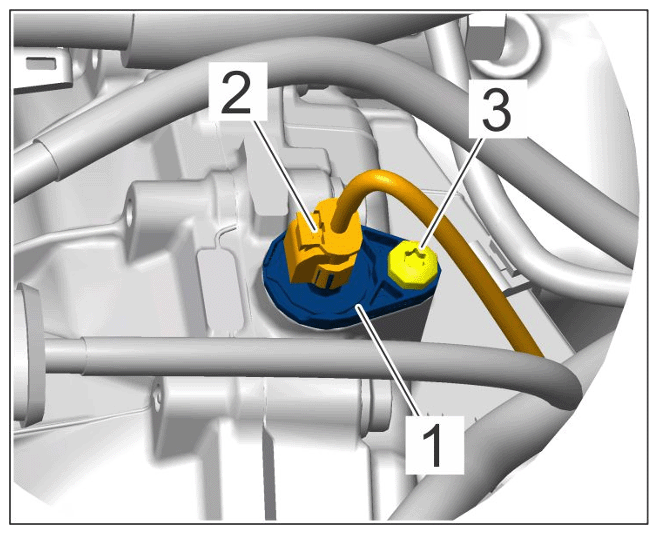

    G15552224Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission speed sender

    1. 1.1 Release and disconnect cable plug -2-  .
    2. 1.2 Unscrew screw -3-  .
    3. 1.3 Loosen speed sender -1-  using a small plastic wedge and pull it out.
  2. Replace O-ring.
