Installing Transmission Speed Sender

1. Grease O-ring with a light coating of Kluber Syntheso Glep.
2. Install speed sender -1-  with a new O-ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

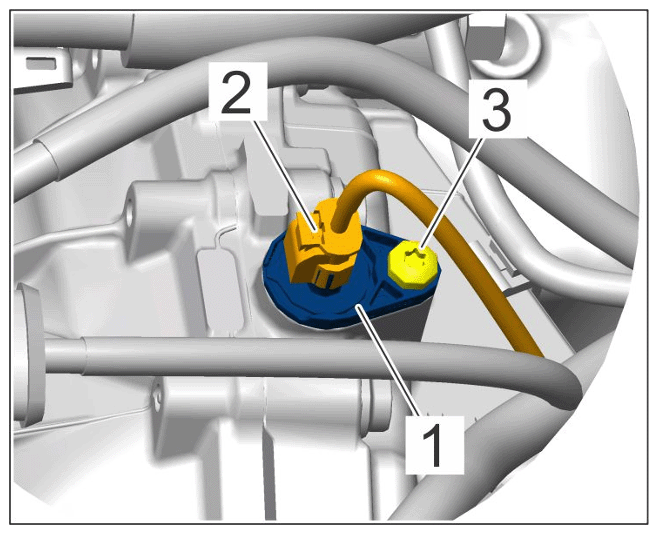

Transmission speed sender

1. 2.1 Fit and tighten screw -3-  .

   > Tightening torque 8 Nm (3 ftlb.)

2. 2.2 Connect and lock cable plug.
