Removing Air Pipe (Suction Hose)

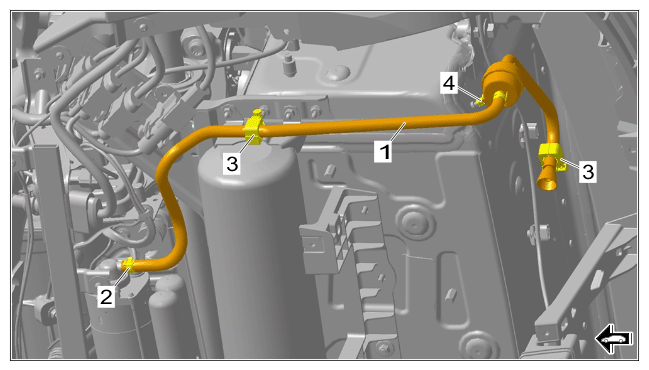

1. 1.1 Loosen spring band clamp -2-  using > VAS 6890 - Spring Band Clamp Pliers  and disconnect air pipe -1-  from compressor.
2. 1.2 Unclip clips -3-  .
3. 1.3 Pull off holder -4-  and remove air pipe -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air pipe
