Trim Panel

Location	Description	Type	Basic value	Tolerance
Trim panel	Trim panel to footwell outlet vent (on driver's side)	Tightening torque	1.5 Nm (1 ftlb.)

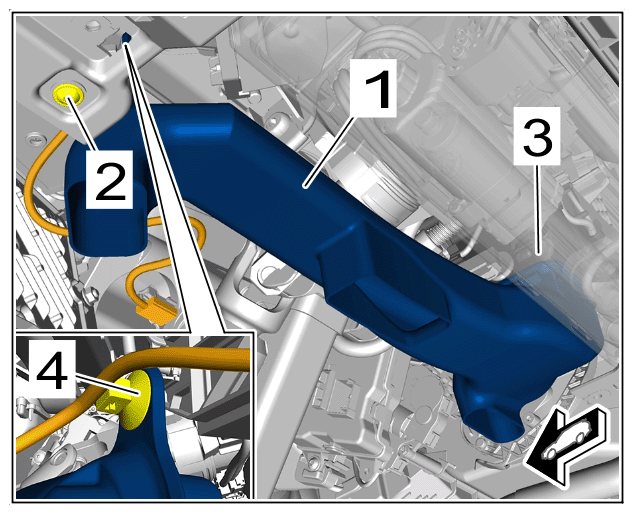

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front footwell outlet vent (on driver's side)

1	Front footwell outlet vent (on driver's side)
2	Screw
3	Air conditioner
4	Clip
