Technical Values For Dashboard

Location	Description	Type	Basic value

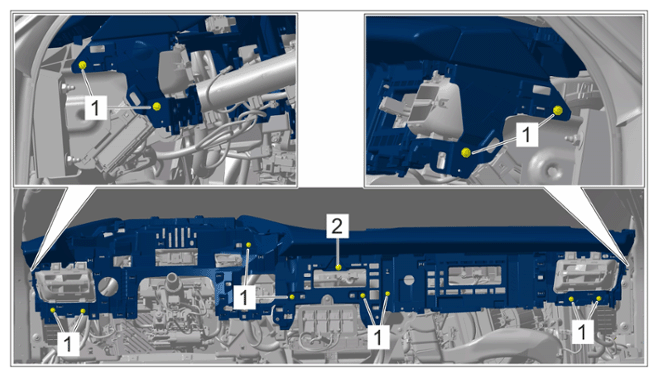

Screws securing dashboard to mounting bracket, centre console holder and air vent	Item 1	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

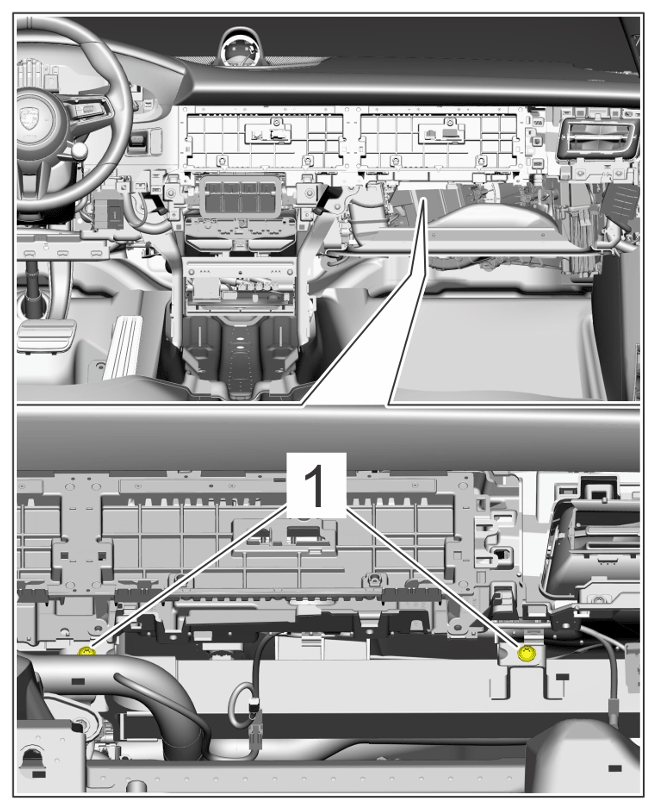

Screw securing dashboard to mounting bracket	Item 2	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw securing dashboard to mounting bracket	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

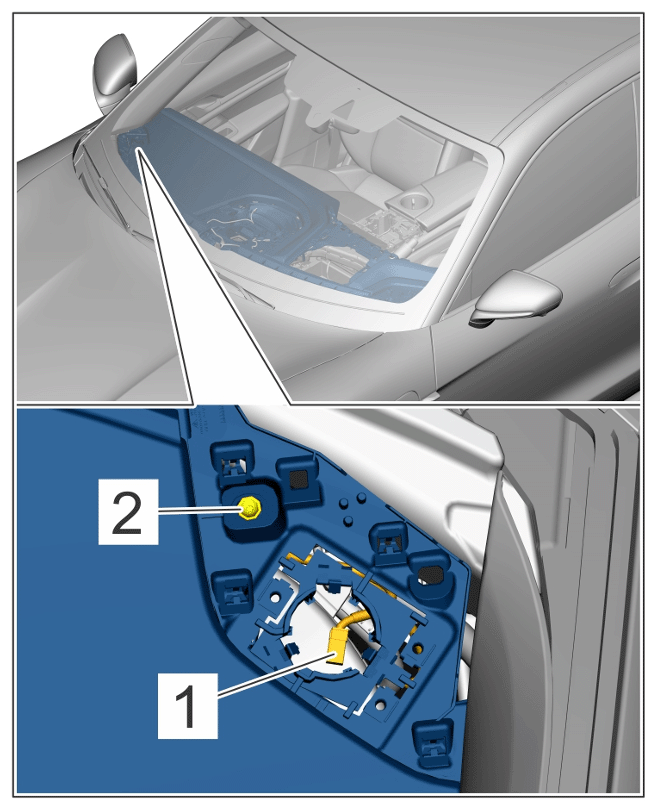

Screws securing dashboard airbag holder	Item 1 Safety-relevant screws must always be replaced	Tightening torque	9.7 Nm (7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
