Windscreen And Rear Window

Location	Description	Type	Basic value	Tolerance
Windscreen to A-pillar	Dimension A	Gap dimension	2.5 mm	+/- 0.7 mm

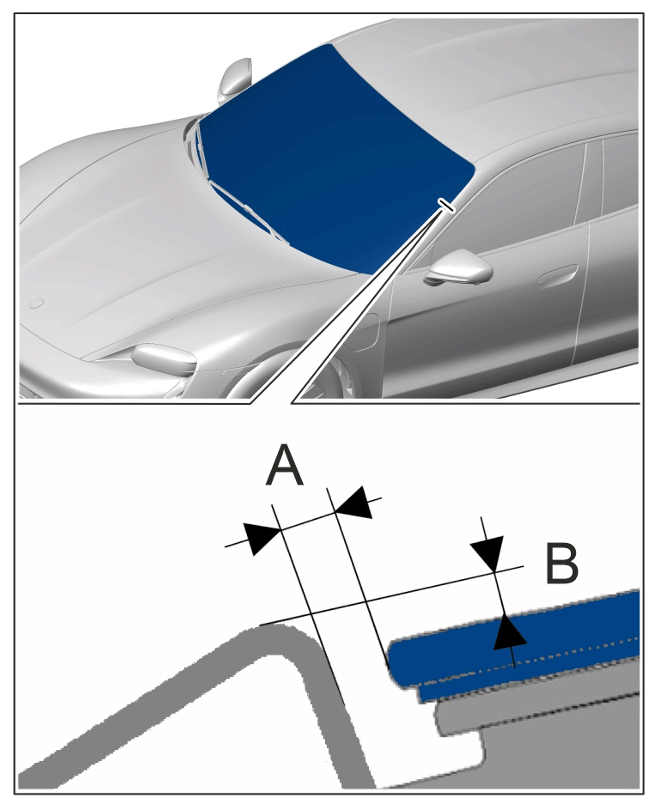

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Windscreen to A-pillar
Windscreen to A-pillar	Dimension B	Offset	- 2.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Windscreen to A-pillar
Rear window to rear side panel	Dimension A	Gap dimension	2.5 mm	+/- 0.7 mm

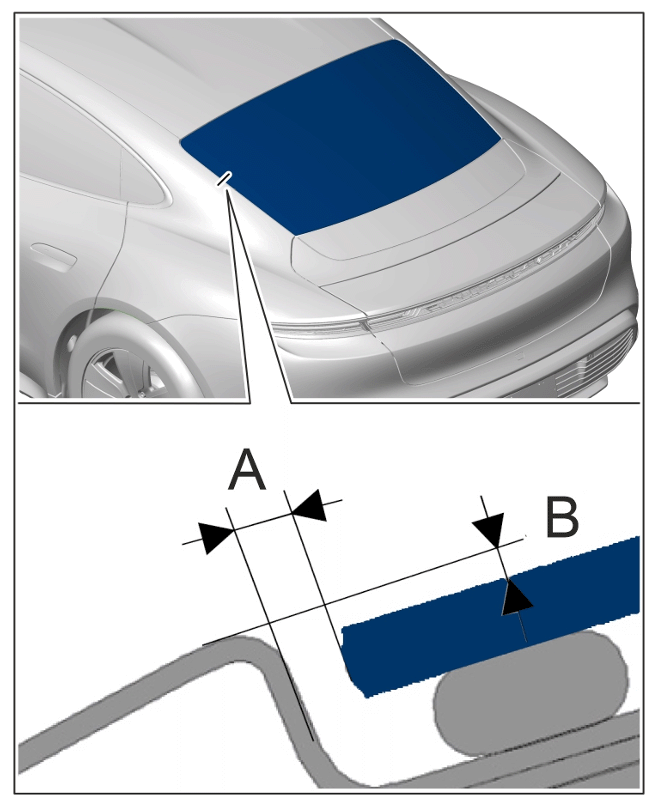

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear window to rear side panel
Rear window to rear side panel	Dimension B	Offset	- 1.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear window to rear side panel
