Rear Apron

Location	Description	Type	Basic value	Tolerance
Rear apron to rear lid	Dimension A	Gap dimension	3.5 mm	+/- 1.0 mm

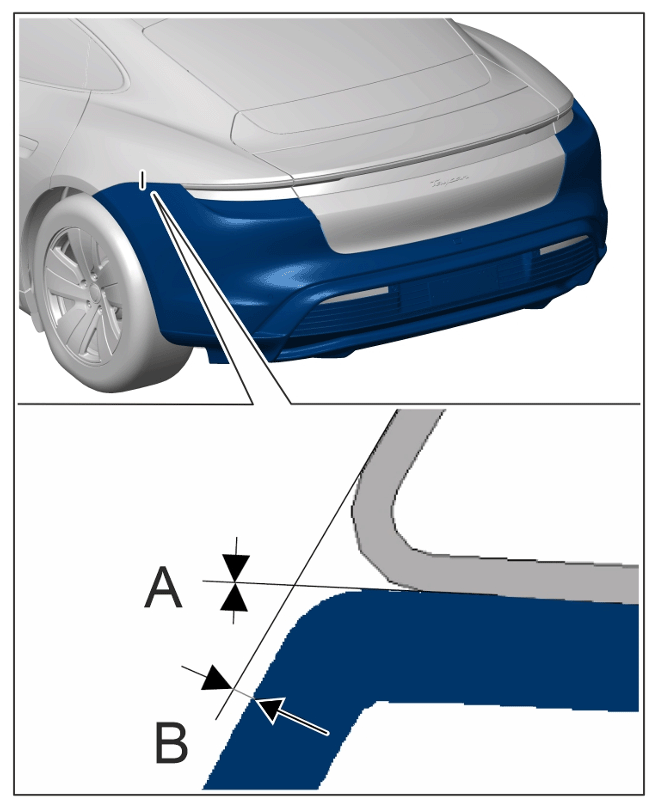

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate to rear apron
Rear apron to rear lid	Dimension B	Offset	2.5 mm	+/- 1.1 mm

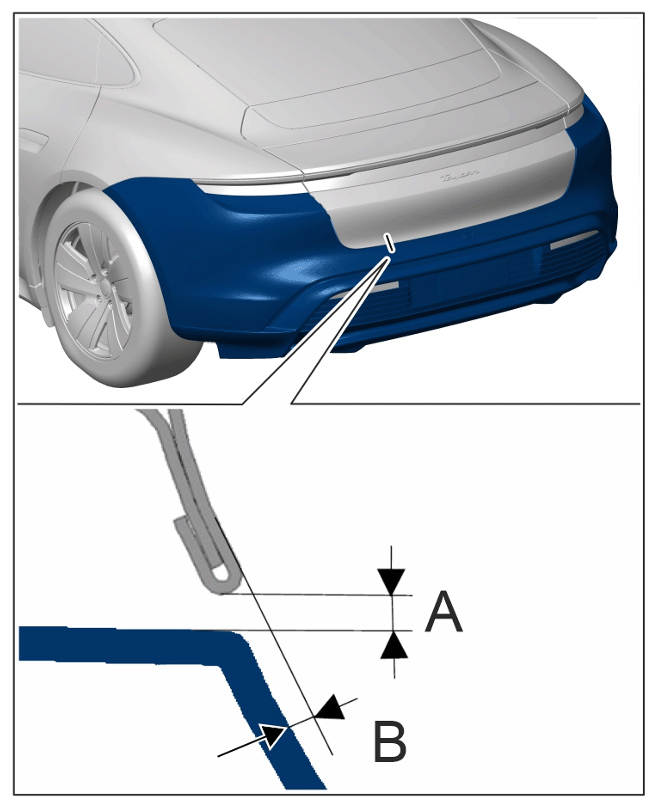

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear apron to rear lid
Rear apron to rear lid	Dimension A (dynamic joint line, gap gets smaller at the bottom)	Gap dimension	4 mm	+/- 0.9 mm

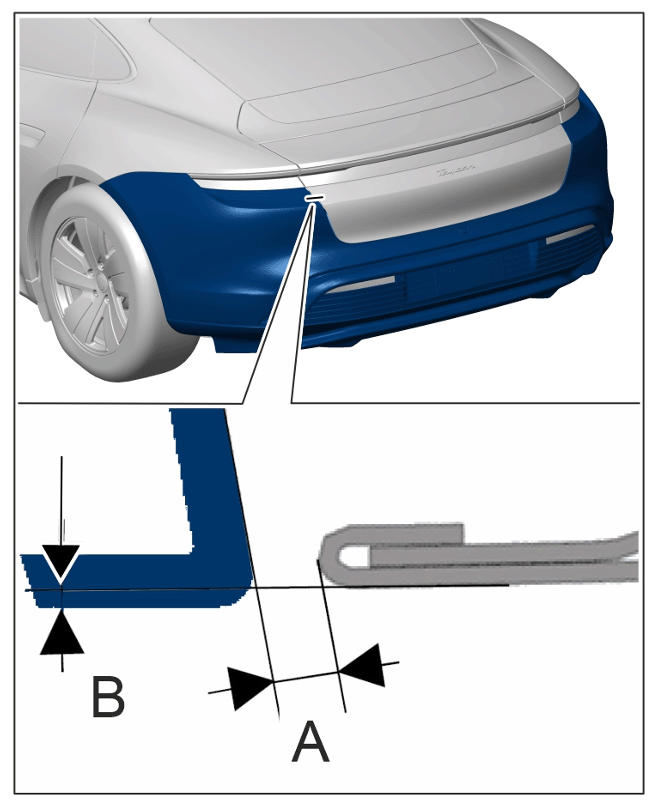

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear apron to rear lid
Rear apron to rear lid	Dimension B	Offset	1 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear apron to rear lid
Rear apron to rear side panel	Dimension A	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear apron to rear side panel
Rear apron to rear side panel (H30)	Dimension B	Offset	0.5 mm	+ 0.5 mm - 0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear apron
