Front Wing

Location	Description	Type	Basic value	Tolerance
Front wing to front lid	Dimension A	Gap dimension	3 mm	+/- 0.6 mm

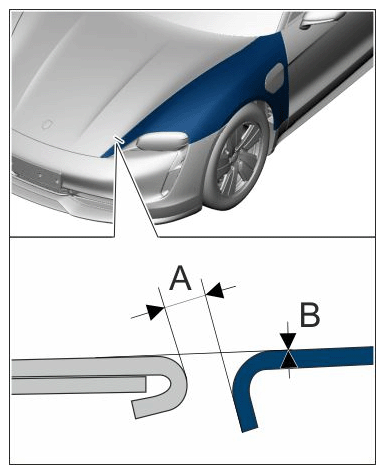

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to front lid
Front wing to front lid	Dimension B	Offset	0 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to front lid
Front wing to front lid	Dimension A	Gap dimension	3 mm	+/- 0.6 mm

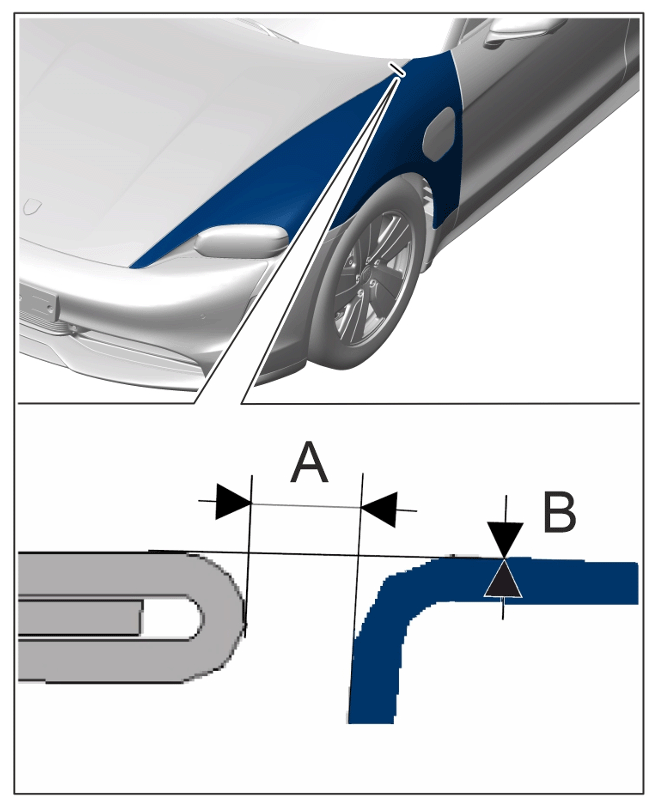

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to front lid
Front wing to front lid	Dimension B	Offset	1 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to front lid
Front wing to front lid	Dimension A	Gap dimension	3 mm	+/- 0.6 mm

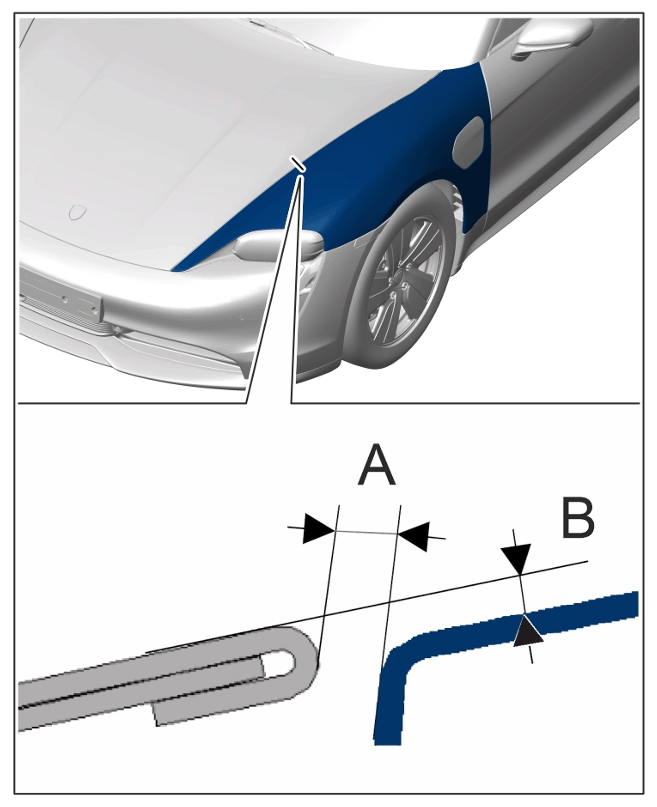

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to front lid
Front wing to front lid	Dimension B	Offset	0 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to front lid
