Front Door Window

Location Description Type Basic value Tolerance
Front door window to rubber seal on door (on body side) Dimension A Gap dimension 3.6 mm +/- 1.0 mm

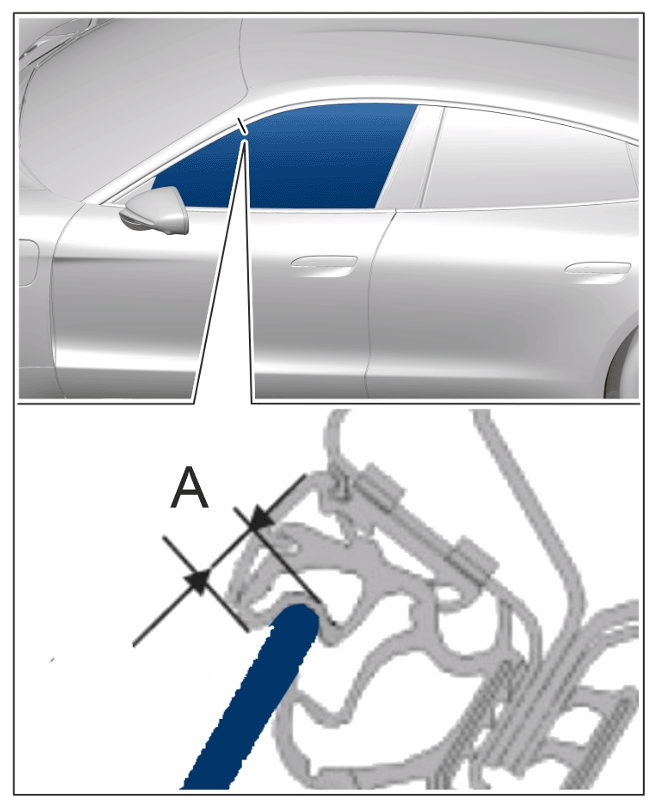

G15564854Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door window to rubber seal on door (on body side)
Front door window to rubber seal on door (on body side) Dimension A Gap dimension 5.2 mm +/- 1.0 mm

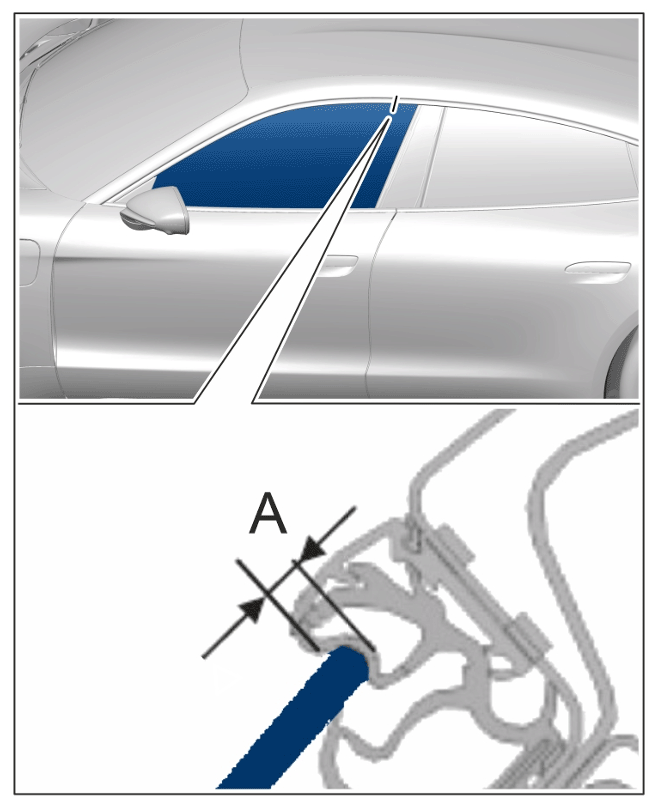

G15564855Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door window to rubber seal on door (on body side)
Front door window to B-pillar trim Dimension A Gap dimension 9 mm +/- 0.7 mm

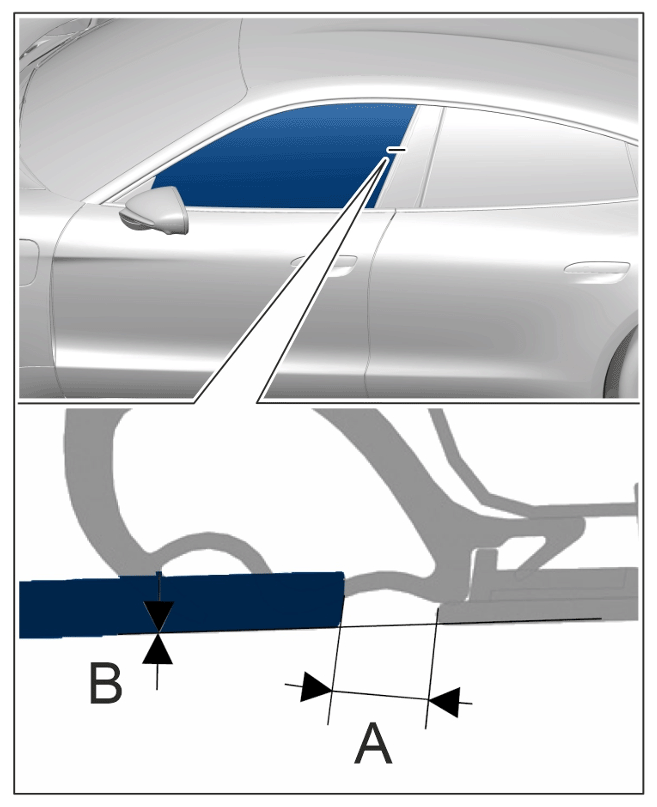

G15564856Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door window to B-pillar trim
Front door window to B-pillar trim Dimension B Offset 0 mm +/- 1.0 mm
G15564857Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door window to B-pillar trim
