Removing Mechanical Power Supply Flap (Lid)

  1. Open up mechanical power supply flap (module).
  2. Release mechanical power supply flap (lid) -1-  (-arrow A-  ) and remove it -arrow B-  .

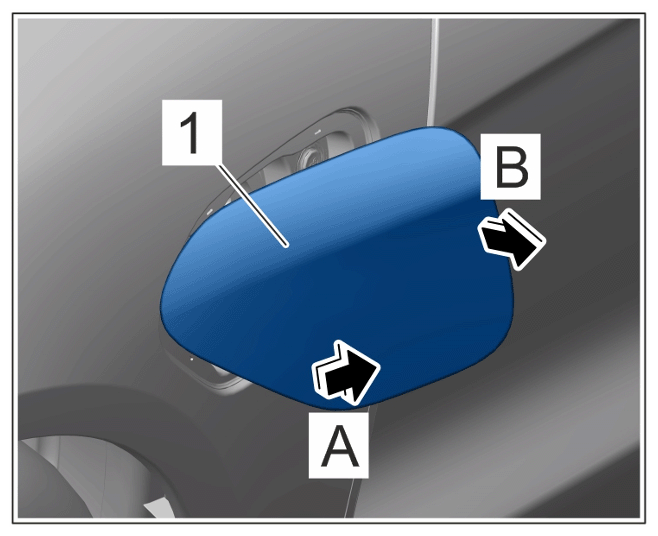

    G15563326Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mechanical power supply flap (lid)
