Technical Values

Location Description. Type Basic value Tolerance 1 Tolerance 2
Screw securing Bluetooth control unit to holder Item 2 Tightening torque 4 Nm (3 ftlb.)

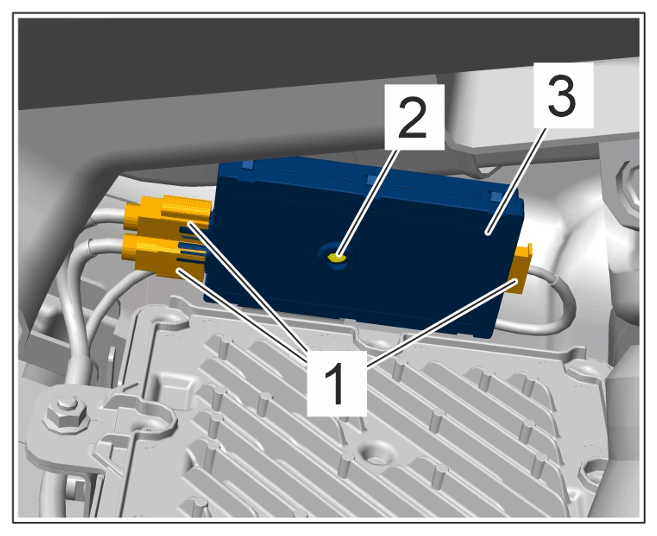

G15566625Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bluetooth control unit
