Antenna Cable Topology (Left Antenna Amplifier (Rear Window Antenna) To Central Computer PCM Control Unit)

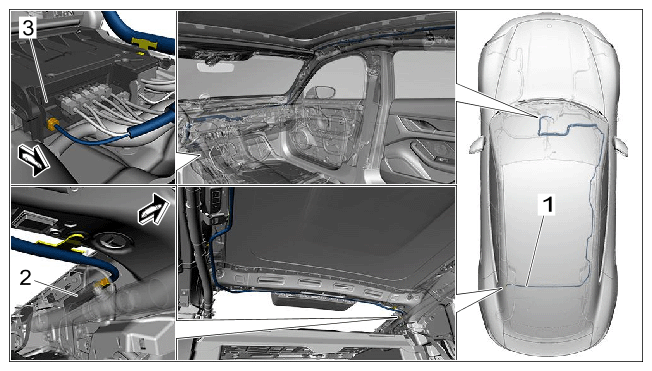

Fig 1: Antenna Cable (Left Antenna Amplifier (Rear Window Antenna) To Central Computer PCM Control Unit) Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna cable (left antenna amplifier (rear window antenna) to central computer PCM control unit)

1	Antenna cable (left antenna amplifier (rear window antenna) to central computer PCM control unit)
2	Antenna amplifier, left (rear window antenna)
3	Central computer PCM control unit
