Repairing Antenna Cable In The Centre Dashboard Connection Point Area

Disconnect antenna cable -1- in center dashboard connection point area -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

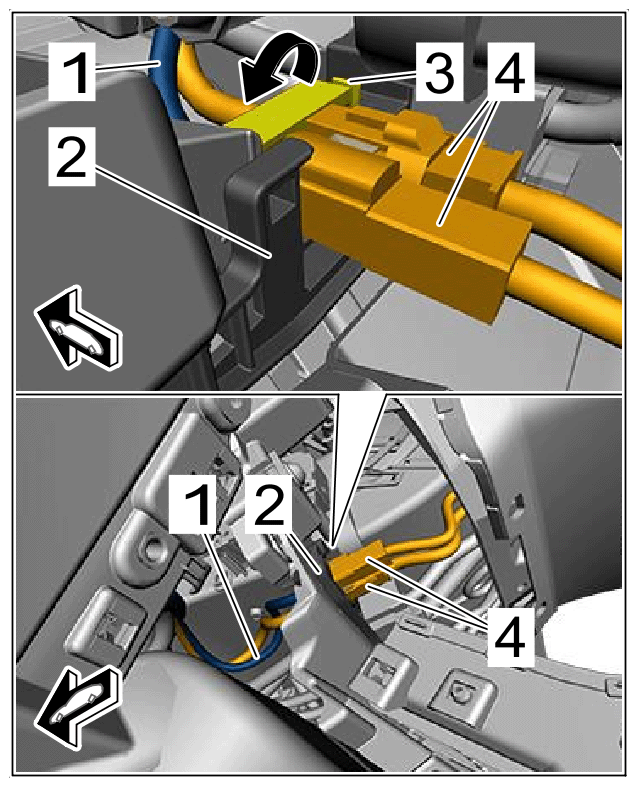

Antenna cable in the center dashboard connection point area
1. 1.1 Open holder -3- in -Arrow direction- and unclip electric plug connections to center dashboard connection point -4- from the holder.
2. 1.2 Unlock and pull off electric plug connections to center dashboard connection point -4- .
3. 1.3 Expose the damaged area of antenna cable -1- in the electrical wire harness.
Repair antenna cable.
> 912841 REPAIRING ANTENNA CABLE
Installation is performed in reverse order. Pay particular attention to the following:
1. 3.1 Push on the electric plug connections until you feel them lock.
