Repair The Antenna Cable In The Left Rear Bumper Connection Point Area (Rear Surround View Camera)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

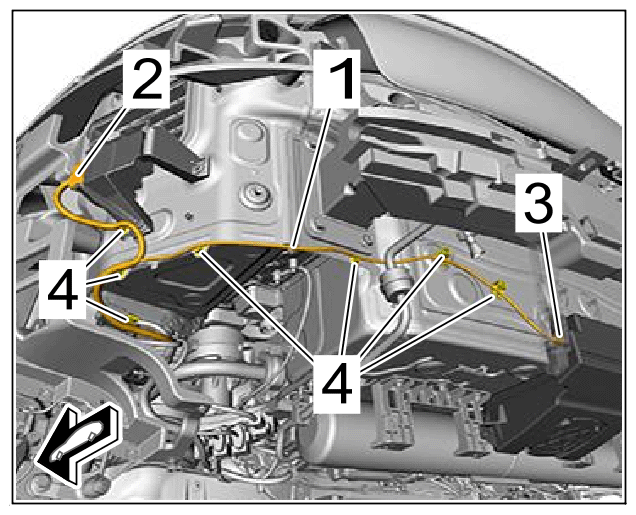

Electrical wire harness on rear end body

1. 1.1  Unlock and pull off electric plug connection to Lane Change Assist control unit -2-  .
2. 1.2 For vehicles with E-Sound generator:

   Unlock and pull off electric plug connection to E-Sound Generator -3-  .

3. 1.3  Unclip clips -4-  with a plastic spatula and put electrical wire harness -1-  to one side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

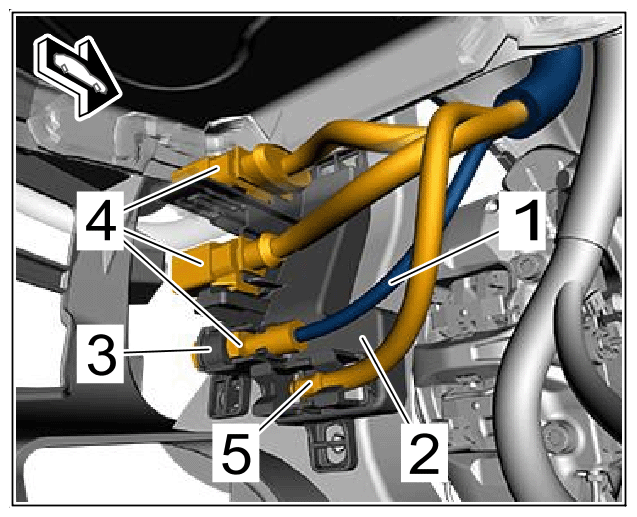

Antenna cable in the left rear bumper connection point area

1. 2.1  Unlock and open holder -3-  .
2. 2.2  Unclip electrical plug connections to left rear bumper connection point -4-  and splash water hose -5-  .
3. 2.3  Expose the damaged area of antenna cable -1-  in the electrical wire harness.

> 912841 REPAIRING ANTENNA CABLE

1. 4.1  Push on the electric plug connections until you feel them lock.
