Repairing Antenna Cable In Telephone Control Unit Area

  1. Disconnect antenna cable -1-  in the telephone control unit -2-  area.

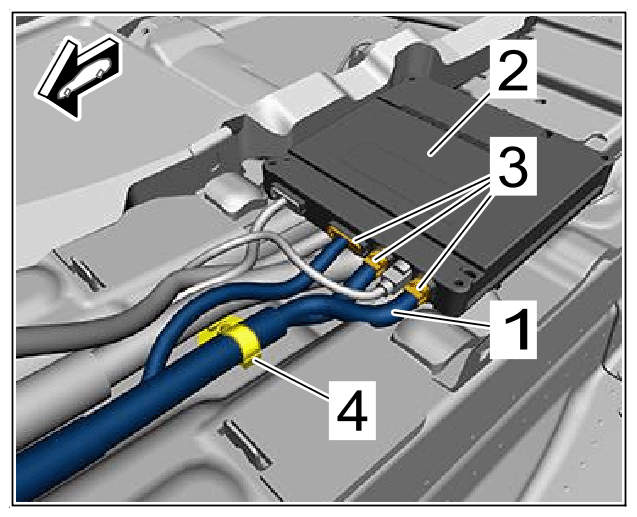

    G15566295Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable in telephone control unit area

    1. 1.1  Release and disconnect electric plug connection telephone control unit -3-  .
    2. 1.2  Loosen tie-wrap -4-  .
    3. 1.3  Disconnect damaged area of the antenna cable -1-  .

      Information

      Antenna cable with a multi-pin electric plug connection -2-  cannot be repaired. A repair wire harness must be -1-  used for this.

      The repair wire harness is routed up to the possible connection points for the affected antenna cables and repaired at the connection points.

      Multi-pin connector -3-  must not be opened at plug lock -A-  . The connector is damaged when opened.

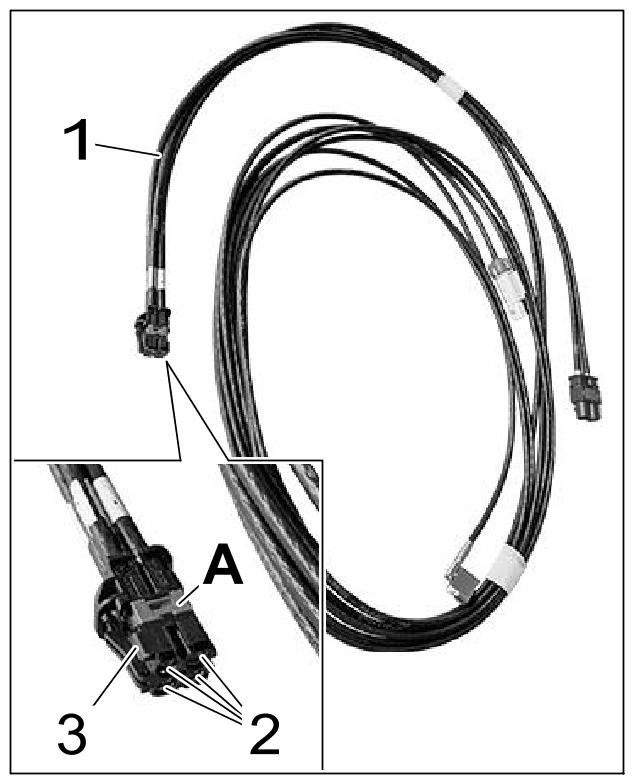

      G15566296Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Repair wire harness for antenna cable

      Information

      The specified disconnection points are recommendations for a possible area that enables disconnection and repair.

  2. For Limousine

    Prepare the repair wire harness for repairing the antenna cable.

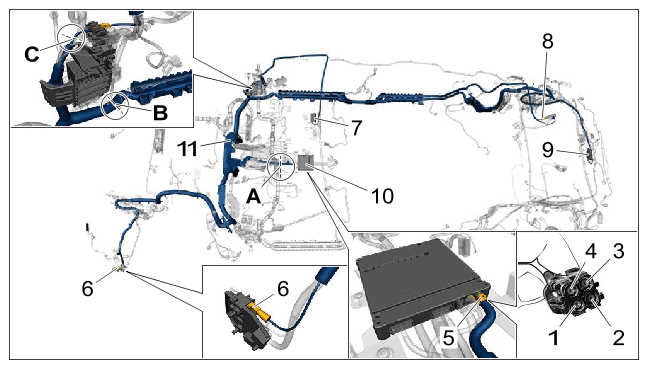

    G15566297Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connection points for antenna cable

    1  Pin 1 = Antenna cable for LTE antenna 2 (rear shelf)
    2  Pin 2 = Antenna cable for LTE antenna 4 (tailgate)
    3  Pin 3 = Antenna cable for LTE antenna 3 (mirror base)
    4  PIN 4 = LTE antenna cable 1 (connection point on front left bumper)
    5  Electric plug connection
    6  LTE antenna 1 (connection point front left bumper)
    7  LTE aerial 3 (mirror base)
    8  LTE antenna 2 (rear shelf)
    9  LTE antenna 4 (tailgate)
    10  Telephone control unit
    11  Main wire harness
    1. 2.1  On the main wire harness -11-  at the marked area -A-  , wind up the sleeve. If necessary, the sleeve can also be wound up at the cutting areas -B-  or -C-  .
    2. 2.2  Determine the associated antenna cable by performing a continuity test via the shields and mark the antenna cables, paying attention to the pin assignment.
      • Disconnect LTE antenna 1 (connection point front left bumper) -6-  .
      • Disconnect LTE antenna 2 (rear shelf) -8-  .
      • Disconnect LTE antenna 4 (tailgate) -9-  .
      • Disconnect connection point for LTE antenna 3 (mirror base) -7-  .
    3. 2.3  Secure repair wire harness along the main wire harness and shorten it to the required lengths.

      Information

      Antenna cable with a multi-pin electric plug connection -2-  cannot be repaired. A repair wire harness must be -1-  used for this.

      The repair wire harness is routed up to the possible connection points for the affected antenna cables and repaired at the connection points.

      Multi-pin connector -3-  must not be opened at plug lock -A-  . The connector is damaged when opened.

      G15566298Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Repair wire harness for antenna cable

      Information

      The specified disconnection points are recommendations for a possible area that enables disconnection and repair.

  3. For Sport Turismo or CUV:

    Prepare the repair wire harness for repairing the antenna cable.

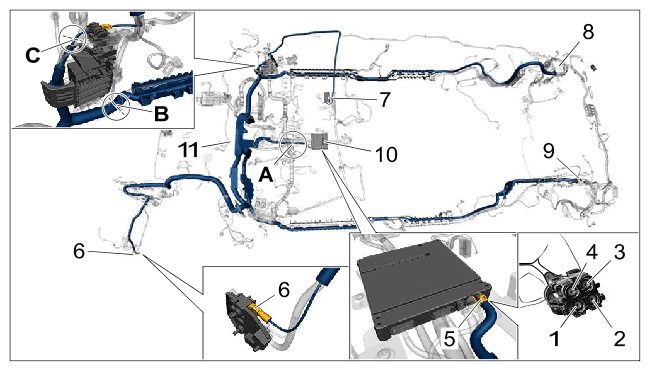

    G15566299Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connection points for antenna cable

    1  Pin 1 = LTE antenna cable 2 (luggage compartment cover, right side)
    2  Pin 2 = LTE antenna cable 4 (luggage compartment cover, left side)
    3  Pin 3 = Antenna cable for LTE antenna 3 (mirror base)
    4  PIN 4 = LTE antenna cable 1 (connection point on front left bumper)
    5  Electric plug connection
    6  LTE antenna 1 (connection point front left bumper)
    7  LTE aerial 3 (mirror base)
    8  LTE antenna 2 (luggage compartment cover, right side)
    9  LTE antenna 4 (luggage compartment cover, left side)
    10  Telephone control unit
    11  Main wire harness
    1. 3.1  On the main wire harness -11-  at the marked areas -A-  , wind up the sleeve. If necessary, the sleeve can also be wound up at the cutting areas -B-  or -C-  .
    2. 3.2  Determine the associated antenna cable by performing a continuity test via the shields and mark the antenna cables, paying attention to the pin assignment.
      • Disconnect LTE antenna 1 (connection point front left bumper) -6-  .
      • Disconnect LTE antenna 2 (luggage compartment cover at the right side) -8-  .
      • Disconnect connection point for LTE antenna 3 (mirror base) -7-  .
      • Disconnect LTE antenna 4 (luggage compartment cover at the left side) -9-  .
    3. 3.3  Secure repair wire harness along the main wire harness and shorten it to the required lengths.
  4. Fit socket connector and pin connector on antenna cable and repair wire harness.

    > 912841 REPAIRING ANTENNA CABLE

  5. Installation is performed in reverse order. Pay particular attention to the following:
    1. 5.1  Connect electric plug connections until plugs lock perceptibly.
    2. 5.2  Secure antenna cable with a new  tie-wrap.
