Antenna Cable Topology (Front Camera To Driver Assistance Systems Control Unit)

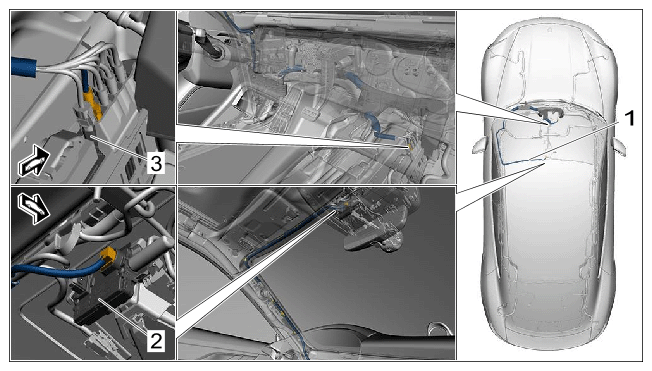

Fig 1: Antenna Cable Topology (Front Camera To Driver Assistance Systems Control Unit) Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna cable from front camera to driver assistance systems control unit

1	Antenna cable (front camera to driver assistance systems control unit)
2	Front camera
3	Driver assistance systems control unit
