Preparing Connection Areas Of Body For Installing Side Section Lower Part

  1. Align the sealing surface and connections of the body.
  2. De-burr connection points and prepare them for bonding.

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.

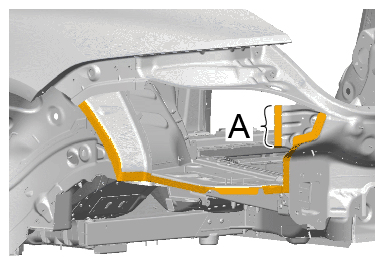

  3. Only for Panamera Saloon

    Prepare the marked area -A-  for joining.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

    G16370639

    Connection areas of body

  4. Prepare the marked areas for joining.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

    G16370640

    Connection areas of body

    G16370641

    Connection areas of body

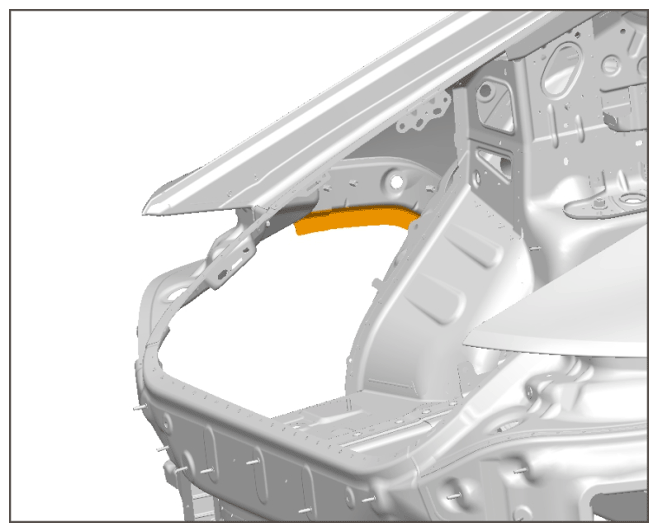

    G16370642

    Connection areas of body
