Installing Side Section Lower Part
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
- Install side section lower part and check that it fits perfectly.
- Only for Panamera Saloon

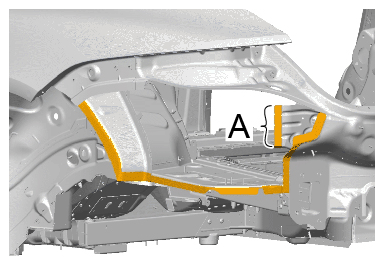

Apply adhesive on the joint area -A- of the body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm
Bonding areas

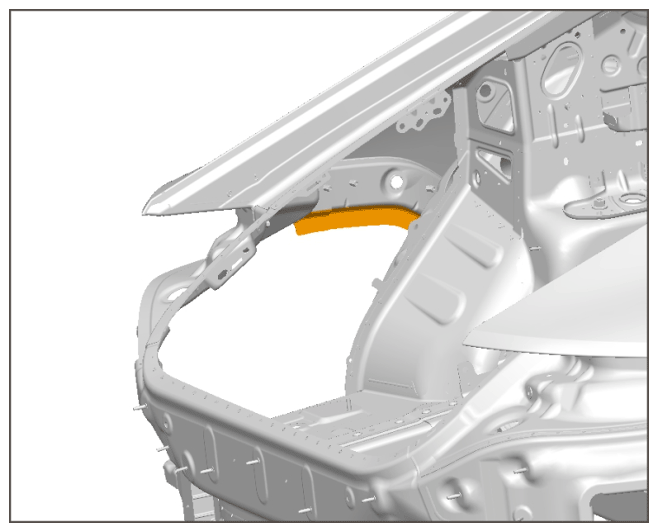

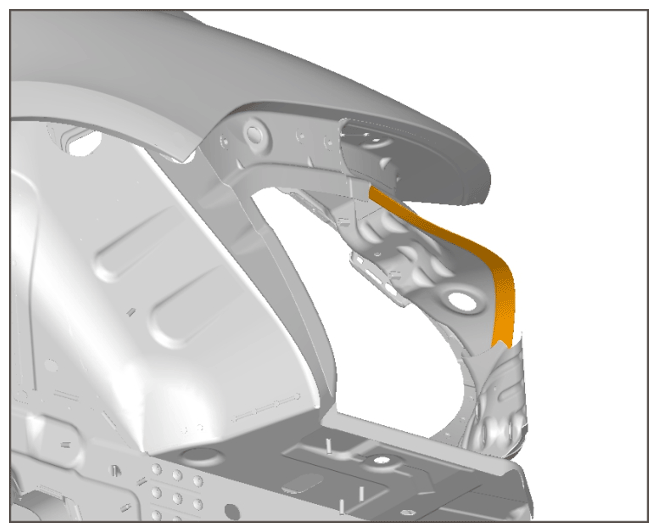

- Apply adhesive on the joint areas of the body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm
Bonding areas
Bonding area
Bonding area
- Only for Panamera Saloon

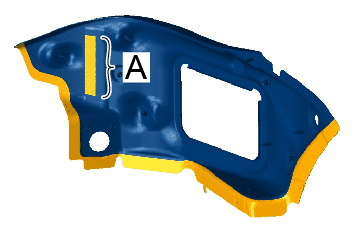

Apply adhesive on the joint area -A- of side section lower part.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
- 4.1 Apply adhesive evenly over the entire bonding surface -A- . > Application depth 0.5 mm
- 4.2 Also apply a bead of adhesive all around the bonding surface -A- . > Application depth 3 mm
Bonding areas
- Apply adhesive to the side section lower part.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
- 5.1 Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm
- 5.2 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm
Bonding areas
- Only for Panamera Saloon

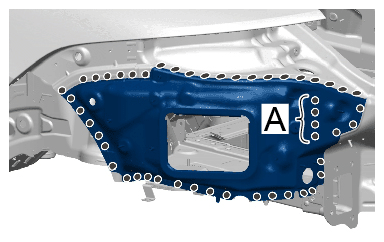

Rivet in the side section lower part in area -A- . > BLIND RIVETS 999.190.229.01
Side section lower part
- Rivet in side section lower part. > BLIND RIVETS 999.190.229.01
Side section lower part
