Underbody Protection

Information

• In the event of repairs, after painting or before fitting units, restore standard stone guard/underbody protection according to the following illustrations.
• The surfaces must be dry and free of grease and dirt before applying underbody protection. Clean the areas with cleaning solution and a lint-free cloth.
• Only apply underbody protection to primed panels.
• The seam seal can be painted over when a skin has formed (about 15 - 30 minutes at 20°C, 50% relative air humidity. Higher air humidity or dampening with water accelerates the hardening process).
• Hardening can be checked by a nail test. Press your finger nail gently into the hardened material; if this causes no damage to the surface, the material can be painted.
• Paint over underbody protection within 3 days.

Information

• The sealing compound  > SEALING COMPOUND 000.043.207.67  can be applied as underbody protection by spraying it on using > VAS 6648 - Pneumatic Gun, 18 bar  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of underbody protection

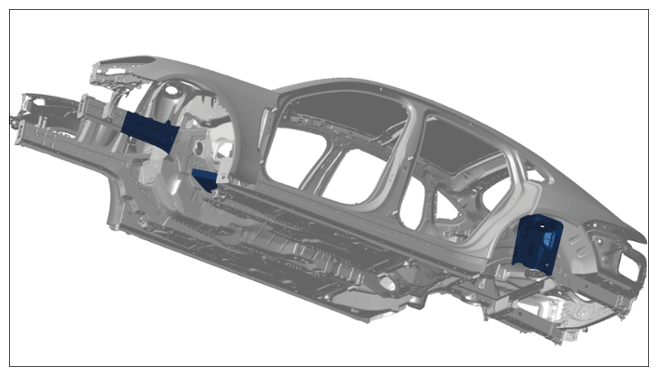

1. Apply underbody protection in the marked area.

   Location	Description	Type	Basic value	Tolerance
   Front side member		Application depth	0.3 mm

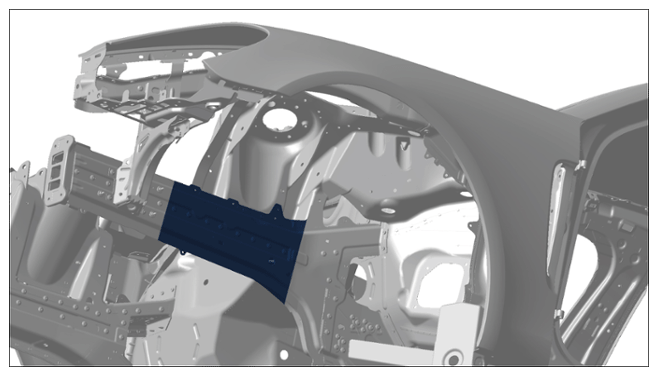

   Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underbody protection for front side member

2. Apply underbody protection in the marked area.

   Location	Description	Type	Basic value	Tolerance
   Front gusset piece		Application depth	0.3 mm

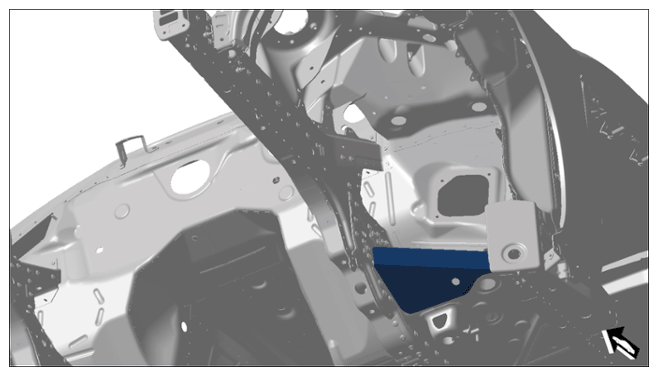

   Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front gusset piece

3. Apply underbody protection in the marked area.

Location	Description	Type	Basic value	Tolerance
Rear spring strut mount		Application depth	0.3 mm

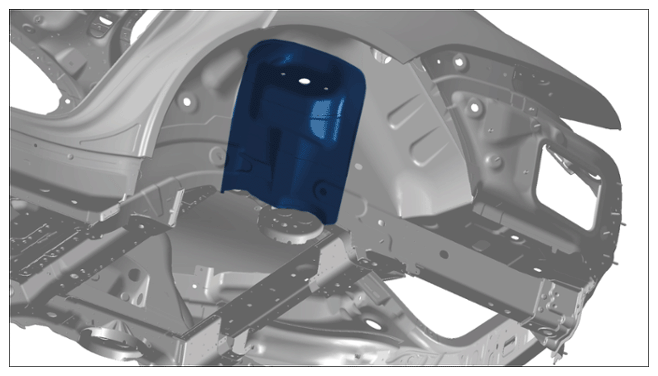

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underbody protection for rear spring strut mount
