Technical Values - Dashboard Bracket

TIGHTENING TORQUE SPECIFICATIONS

Location	Description	Type	Basic value

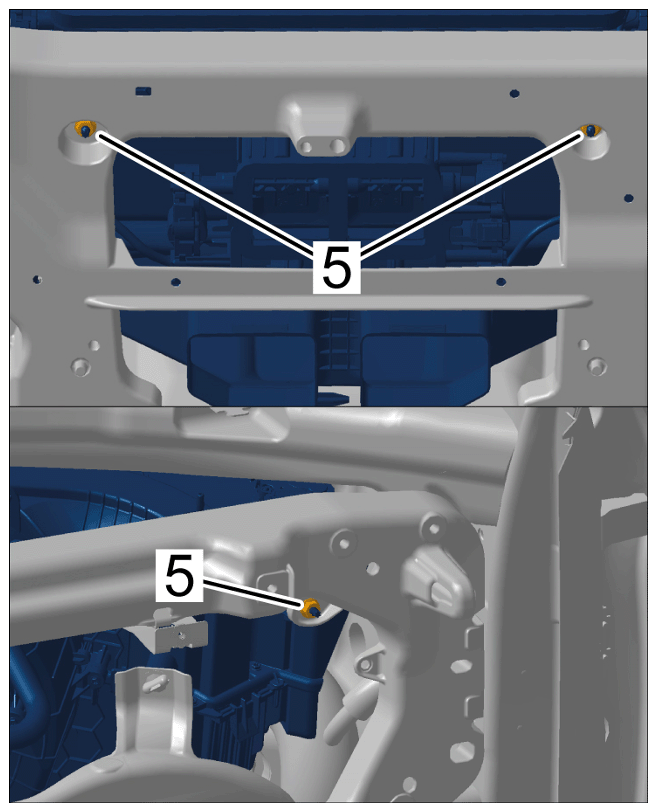

Nuts securing heating/fresh-air unit to dashboard bracket	Item 5	Tightening torque	8 Nm ((6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts securing heating/fresh-air unit to dashboard bracket

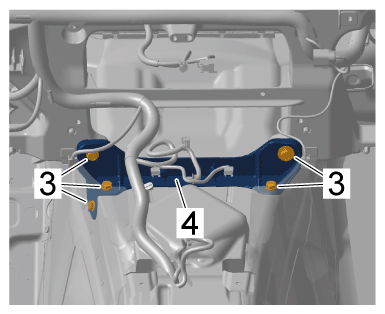

Screw securing centre support to dashboard bracket	Item 3	Tightening torque	20 Nm ((15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing centre support to dashboard bracket

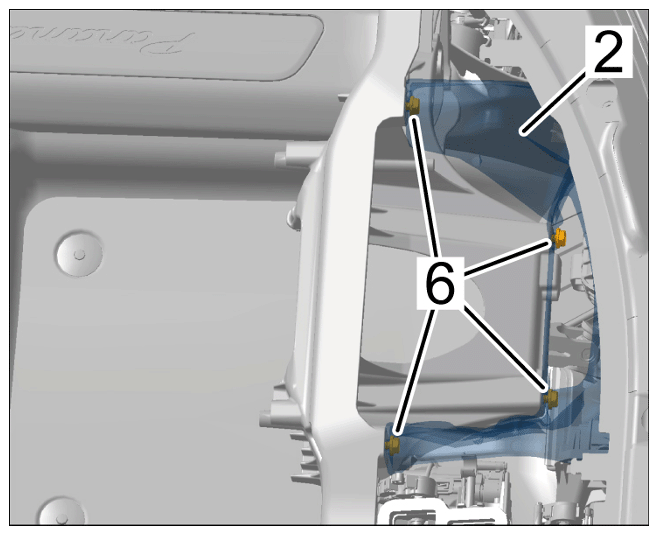

Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket)	Item 6	Tightening torque	20 Nm ((15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket)

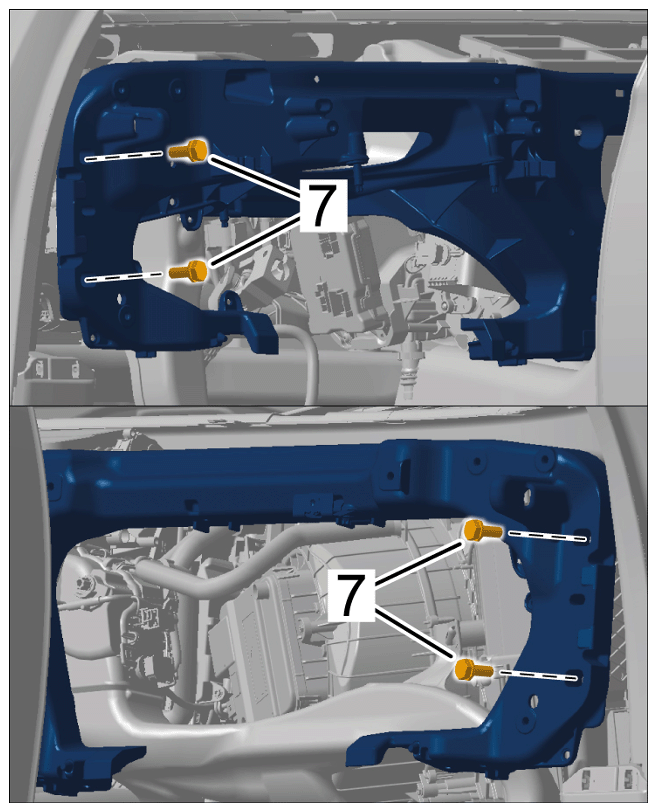

Screw on dashboard bracket (main bracket)	Item 7	Tightening torque	13 Nm ((9.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on dashboard bracket (main bracket)

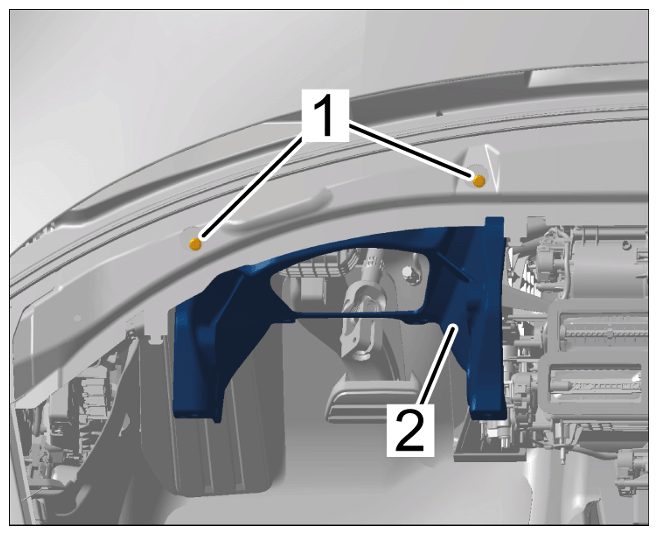

Screw on dashboard bracket (front bracket)	Item 1	Tightening torque	16 Nm ((12 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on dashboard bracket (front bracket)
