TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...	Toleranc...

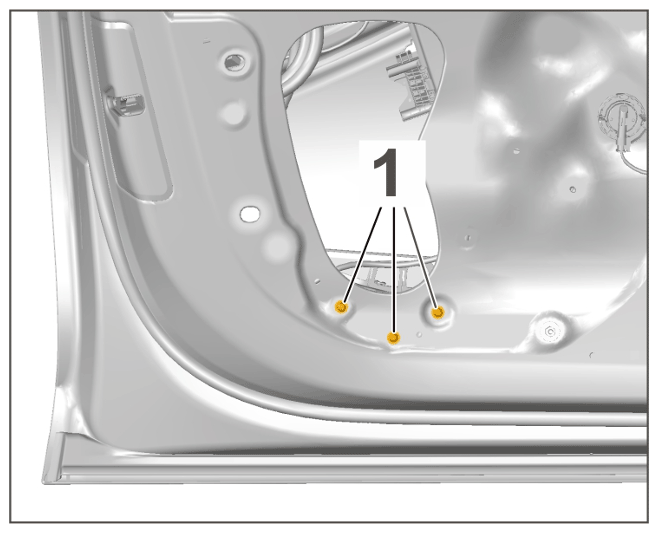

Fastening screws for door hinge	Item 2	Tightening torque	27 Nm ((20 ftlb.)	+/- 3.5 Nm ((2.5 ftlb.)

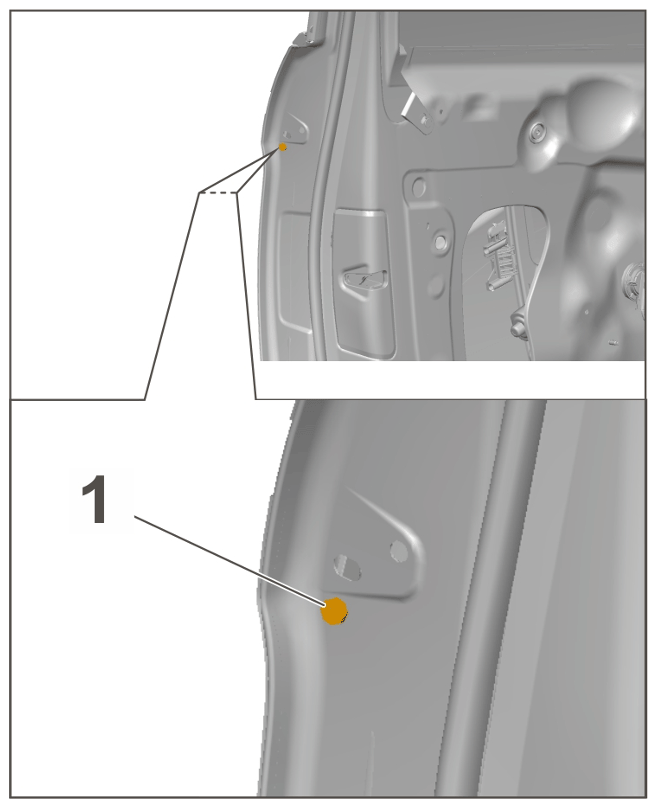

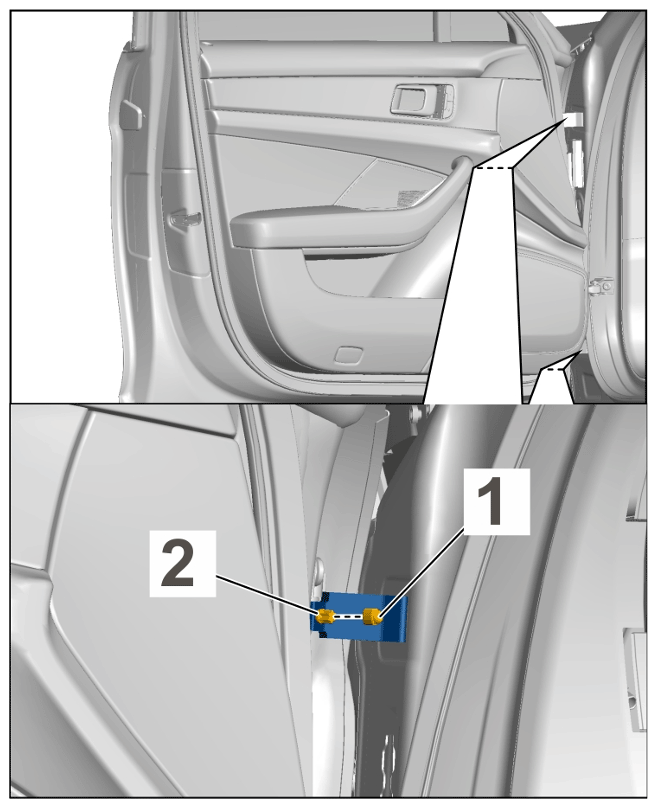

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for door hinge

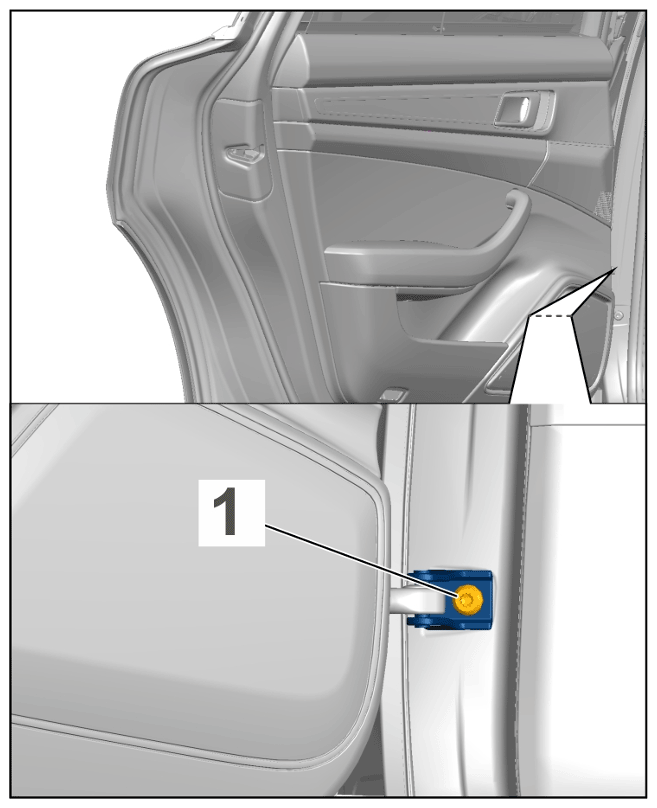

Fastening screw for door arrester	Item 1	Tightening torque	33 Nm ((24 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for door arrester
Door opener	Item 1	Tightening torque	2.3 Nm ((2 ftlb.)	+/- 0.5 Nm ((0.3 ftlb.)

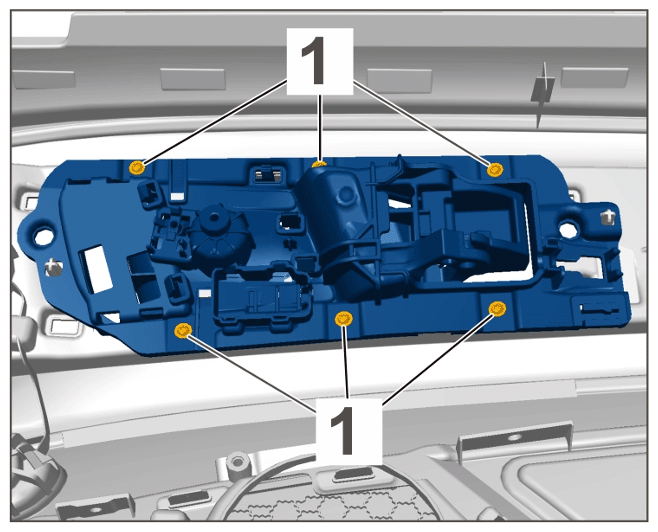

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door opener
Closing aid to basic door frame	Item 1	Tightening torque	3.5 Nm ((2.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for closing aid

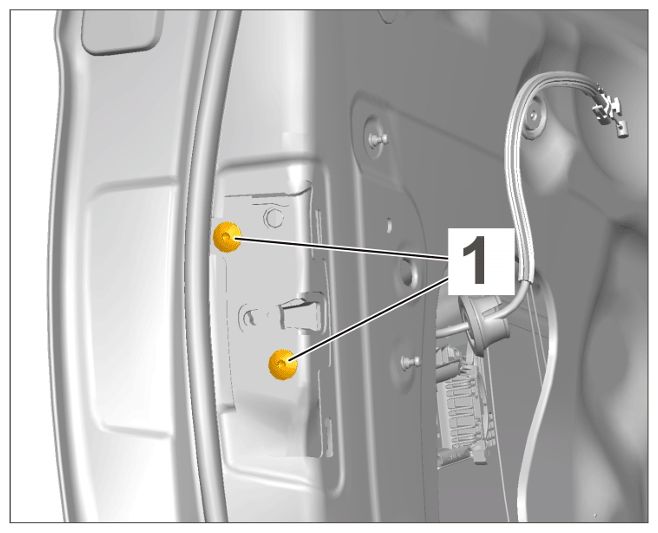

Door lock to bodyshell	Item 1	Tightening torque	20 Nm ((15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Door lock to guide rail	Item 1	Tightening torque	2.5 Nm ((1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

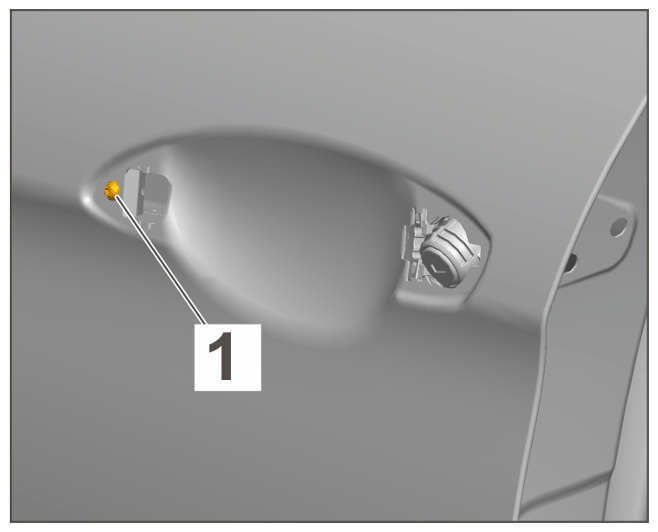

Fastening screw door handle	Pos. 1	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

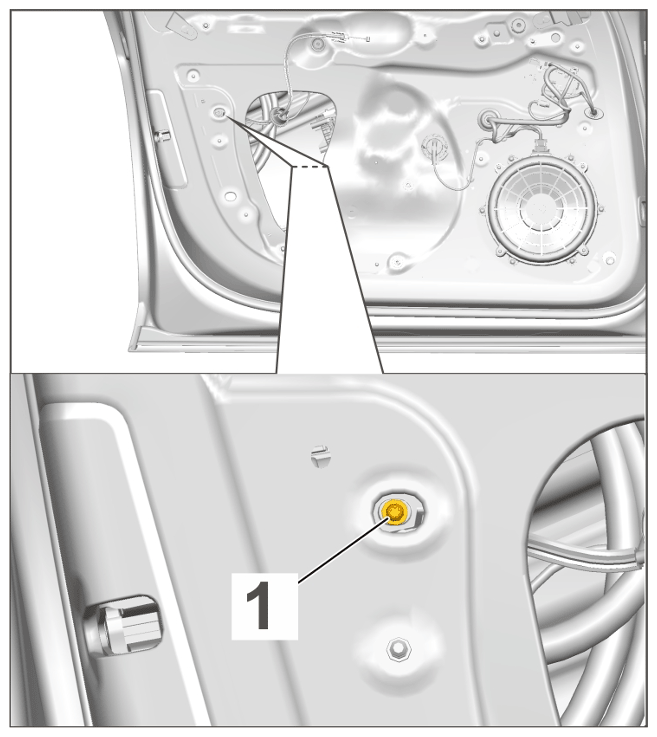

Adjusting bolt for door handle in service position	Pos. 1	Tightening torque	5 Nm (3.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door handle in service position

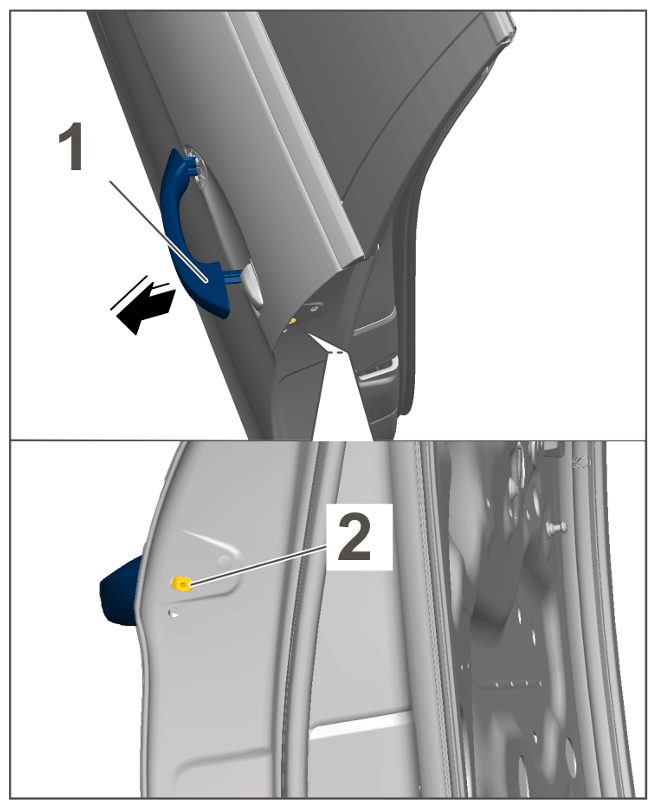

Tighten fastening screw for door handle in service position	Pos. 1	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

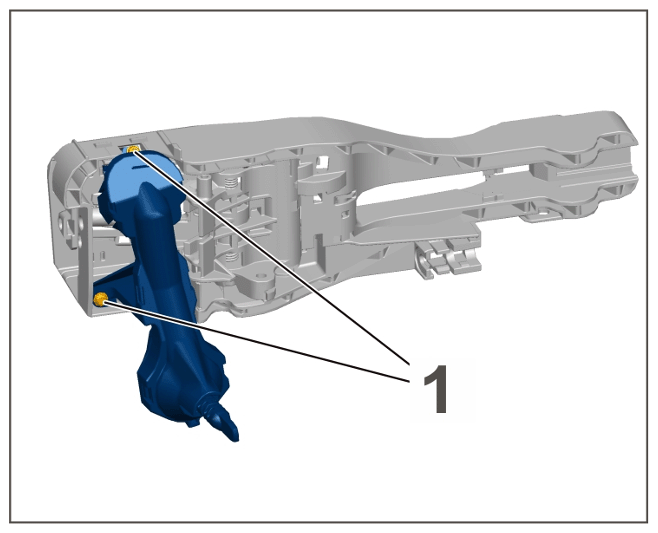

Deflection unit on door handle	Pos. 1	Tightening torque	1.3 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

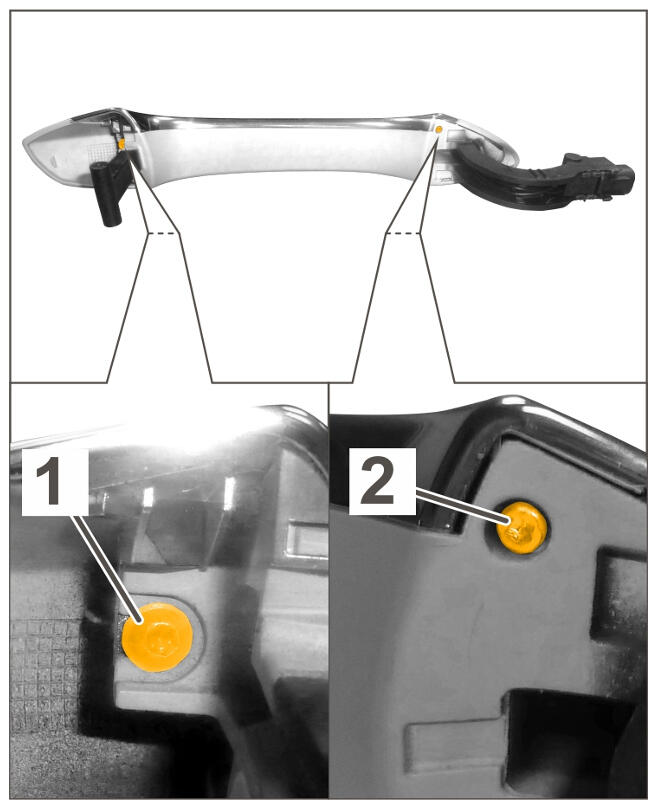

Screw trim panel	Pos. 1	Tightening torque	0.7 Nm (0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw trim panel	Pos. 2	Tightening torque	0.22 Nm (0.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

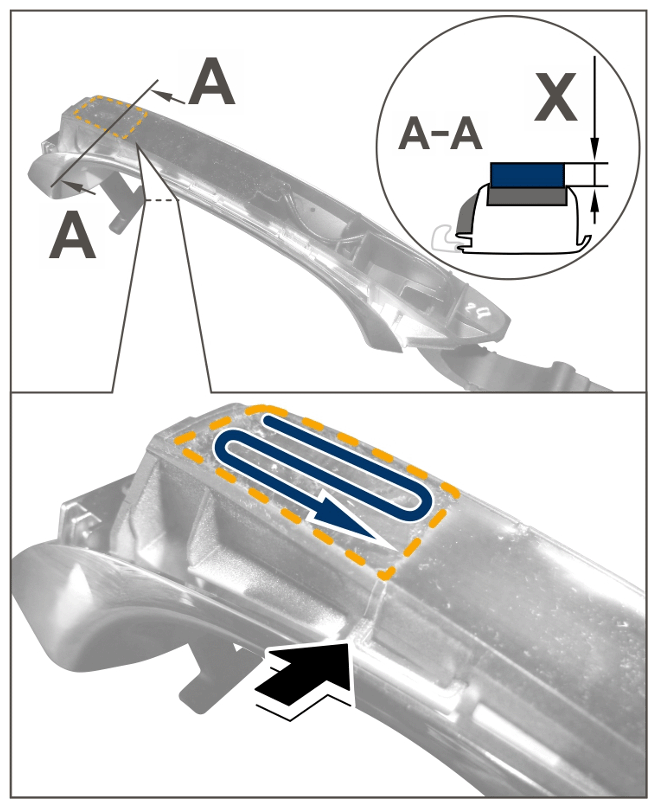

Door handle seal Kessy	Pos. X	Application depth	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door handle adhesive

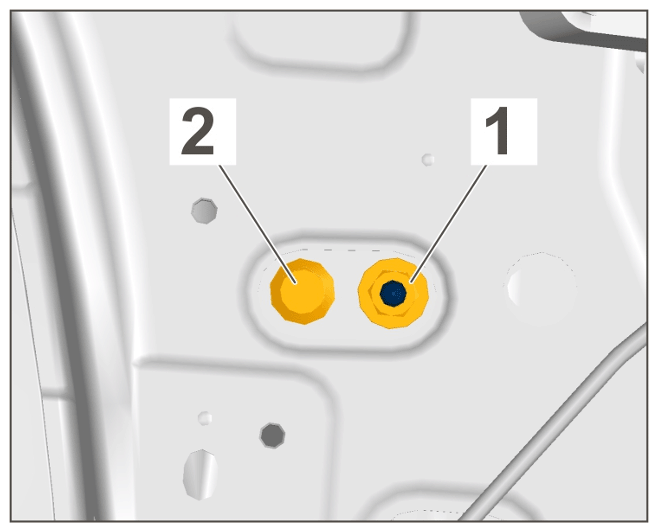

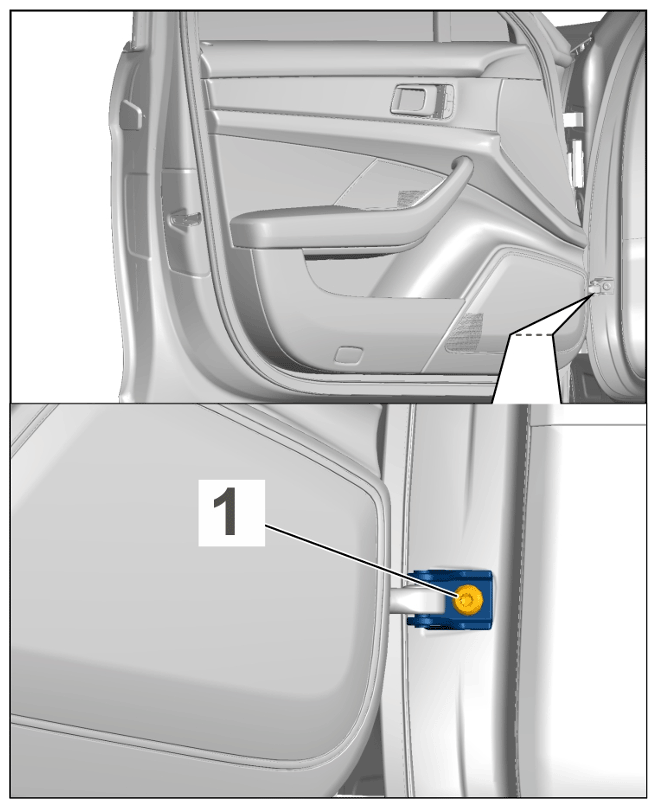

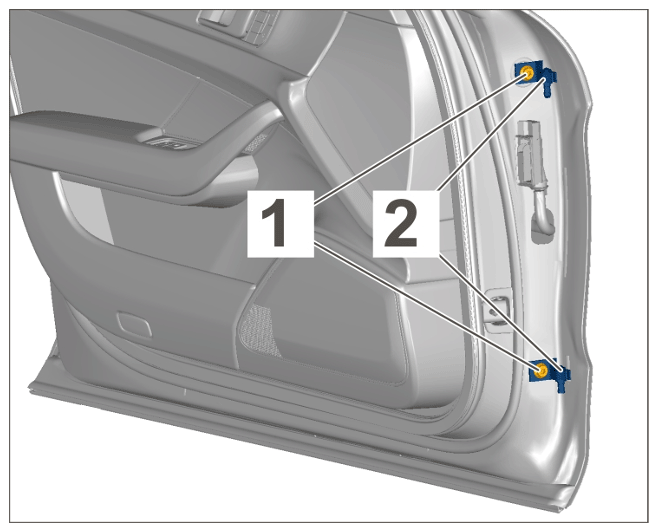

Fastening nut securing door hinge to body	Item 1	Tightening torque	60 Nm ((44 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)
Fastening screw securing door hinge to body	Item 2	Tightening torque	60 Nm ((44 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)
Fastening screw securing door hinge to door	Item 1	Tightening torque	55 Nm ((41 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on door side)
Fastening screw securing door hinge to door	Item 1	Tightening torque	55 Nm ((41 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on door side)
Fastening nut securing door hinge to body	Item 1	Tightening torque	60 Nm ((44 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)
Fastening screw securing door hinge to body	Item 2	Tightening torque	60 Nm ((44 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)
Fastening screws for door hinge	Item 2	Tightening torque	27 Nm ((20 ftlb.)	+/- 3.5 Nm ((2.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door hinge
Fastening screw for door arrester	Item 1	Tightening torque	33 Nm ((24 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for door arrester
Door lock to bodyshell	Item 1	Tightening torque	20 Nm ((15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

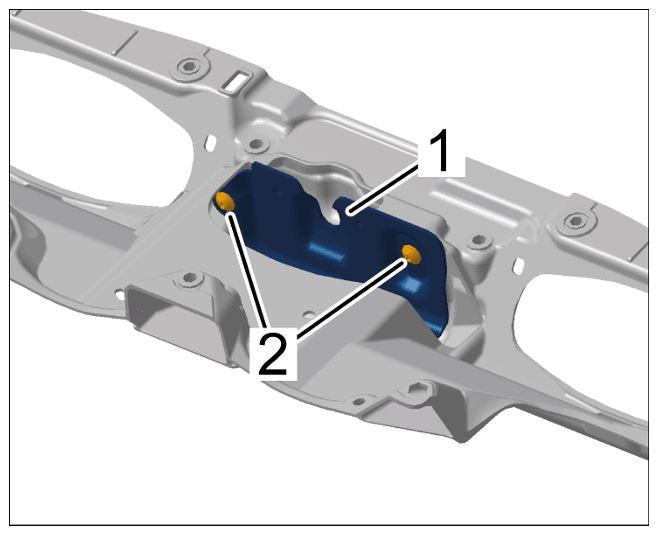

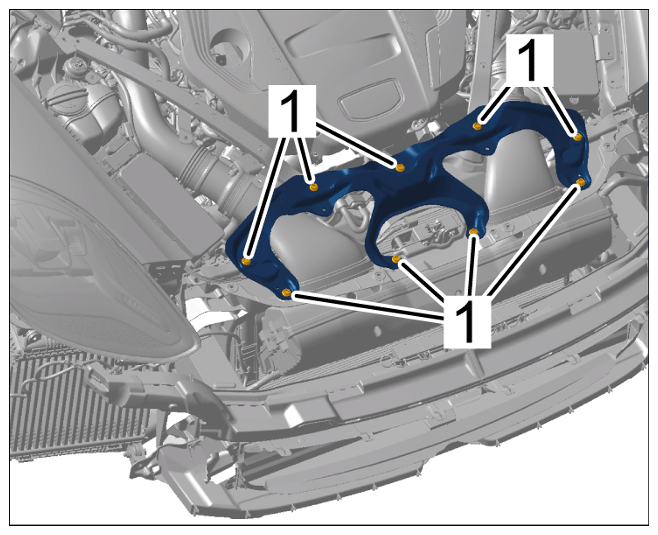

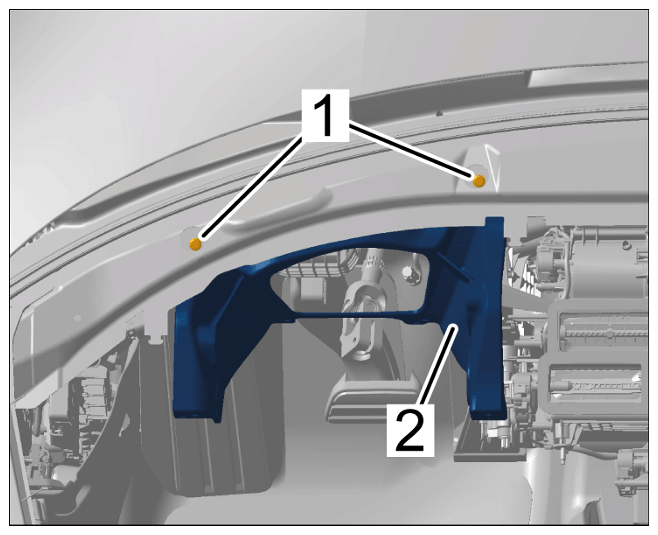

Screw securing reinforcement to module carrier	Item 1	Tightening torque	20 Nm ((15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Reinforcement on module carrier

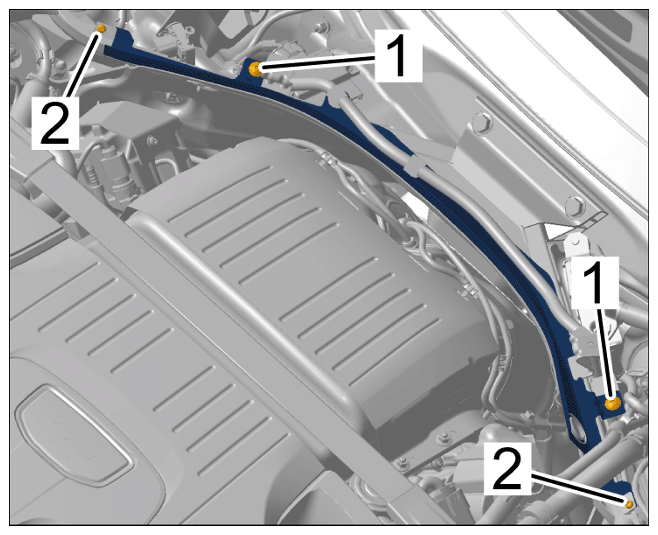

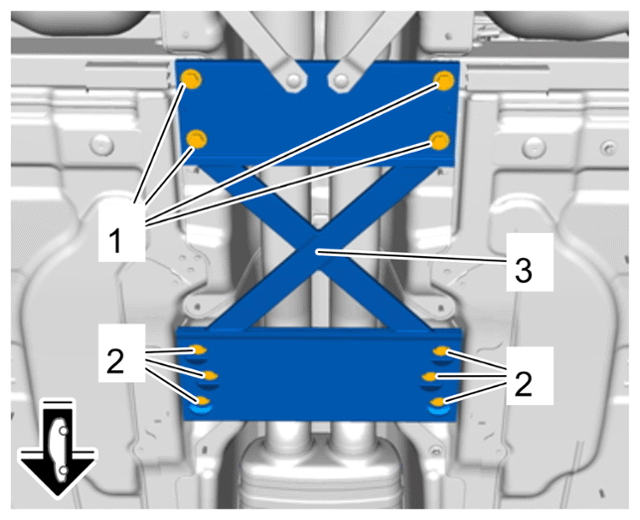

Screws for reinforcement strut on tunnel bridge	Items 1 and 2	Tightening torque	50 Nm ((37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for reinforcement strut on tunnel bridge

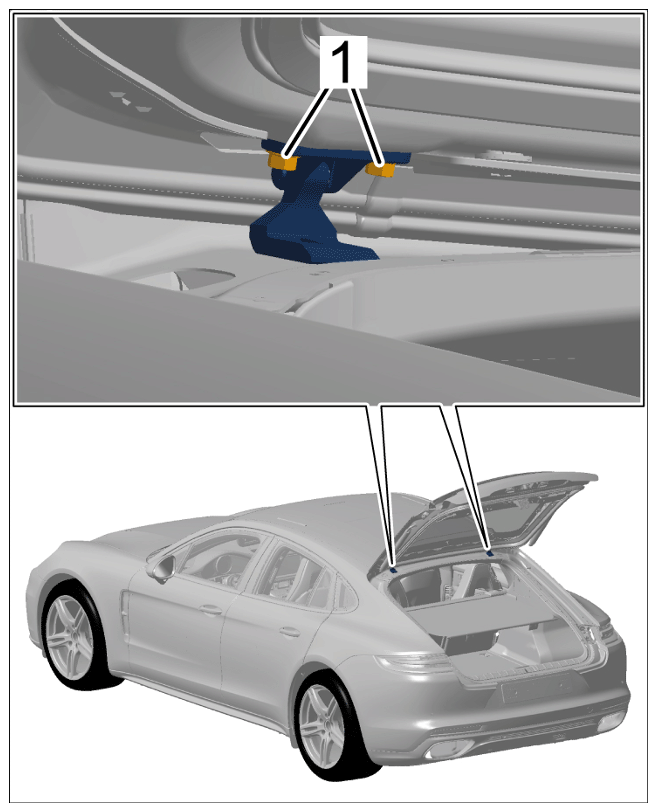

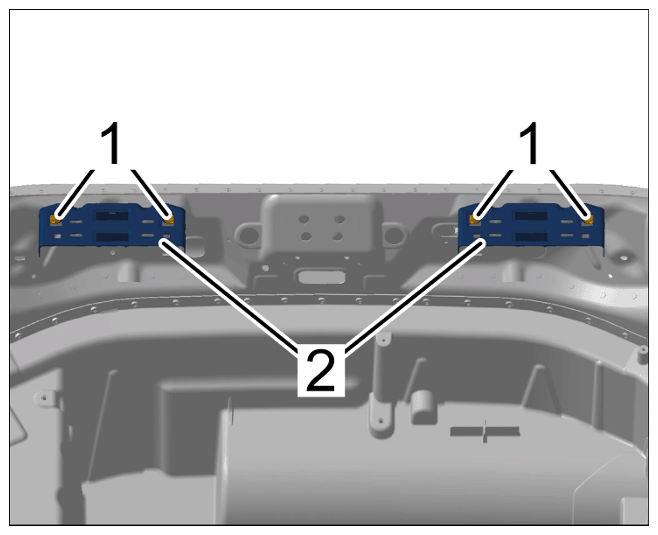

Screws securing tailgate hinge to rear lid	Item 1	Tightening torque	10 Nm (7.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing tailgate hinge to rear lid

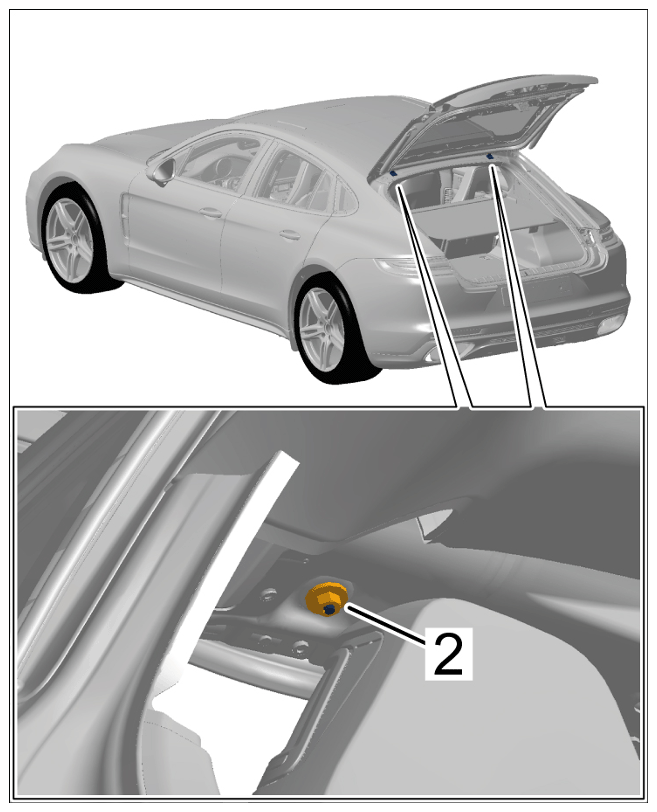

Nut on rear tailgate hinge	Item 2	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on rear tailgate hinge
Rear lid adjusting element screw	Item 1	Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for rear lid adjusting element

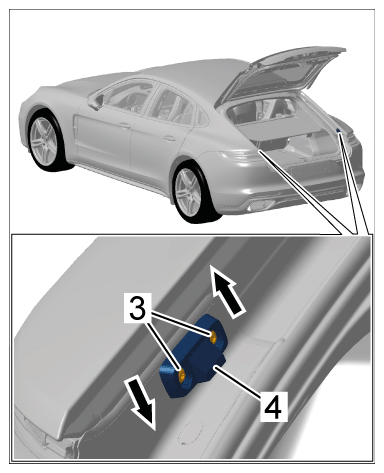

Rear cover adjuster screws	Item 3	Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening bolts
Rear cover ball pin	Item 3	Tightening torque	23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ball pin on rear lid

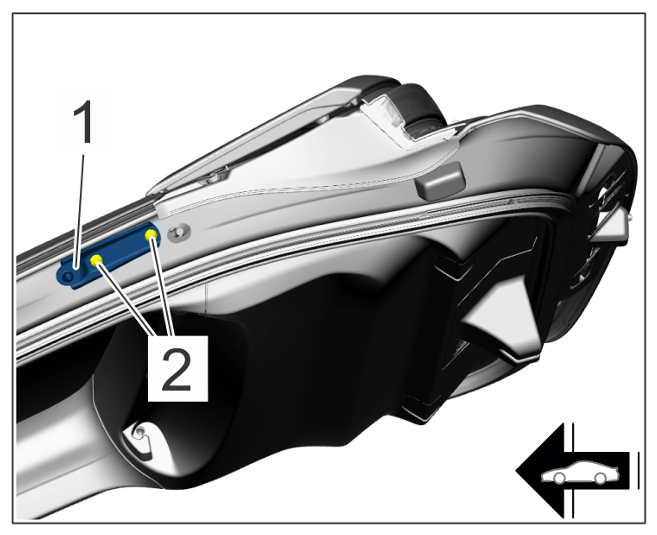

Screws securing ball joint holder to rear cover	Item 2	Tightening torque	10 Nm (7.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ball joint

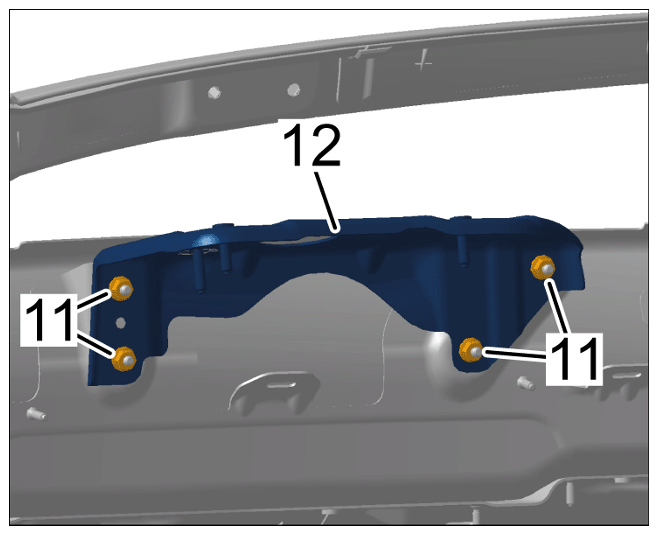

Nut on wiper motor holder	Item 11	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing retaining bracket for windscreen wiper motor

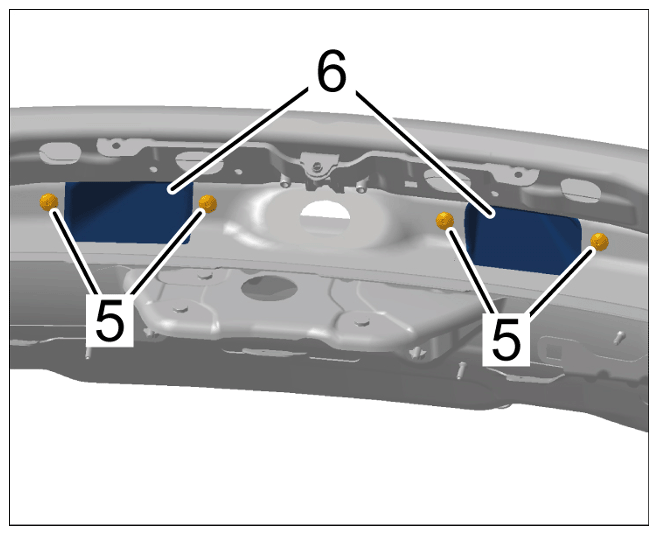

Screw for water drain sleeve on spoiler drive	Item 5	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for water drain sleeve on spoiler drive

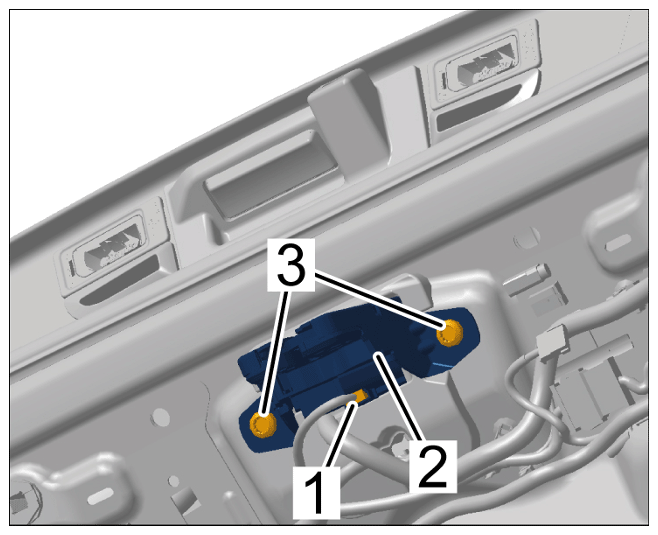

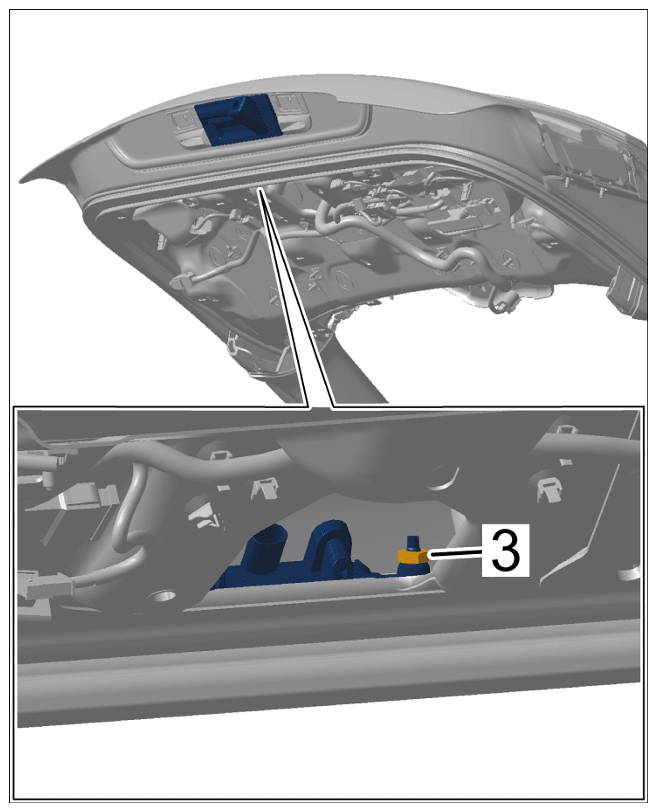

Nut on rear lid release	Item 3	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on rear lid release

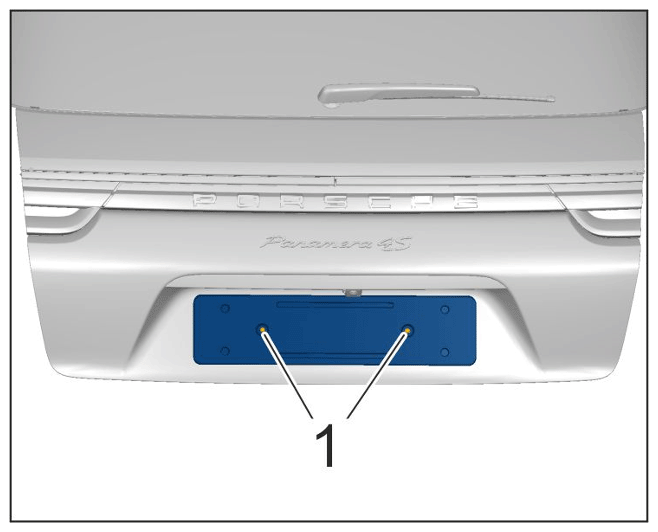

Number plate trim for Sport Turismo		Tightening torque	2.5 Nm (1.8 ftlb.)	+/- 10 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Number plate trim

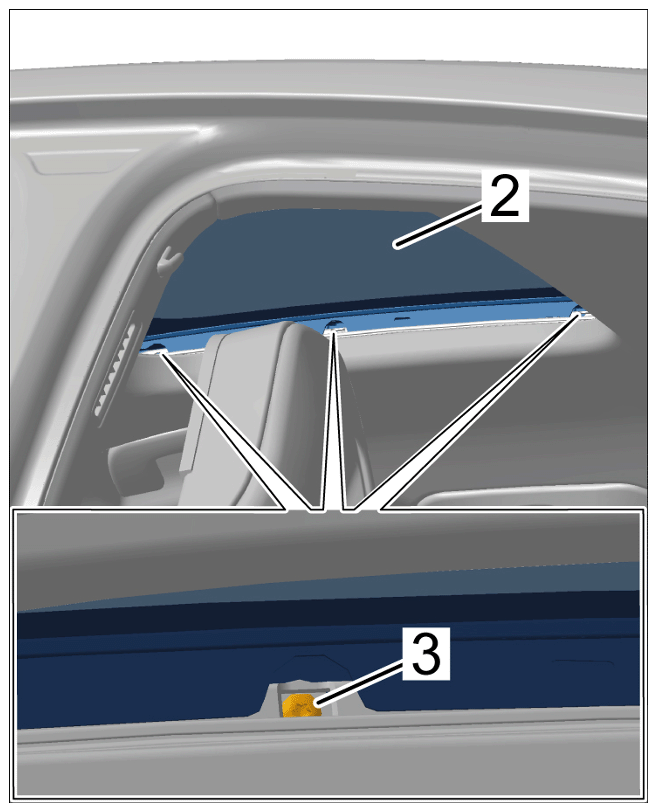

Screw securing sliding-roof panel to guide rail	Item 3	Tightening torque	0 Nm ((0 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing sliding-roof panel

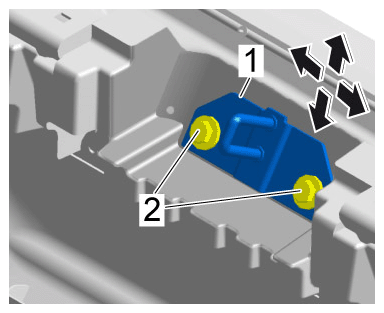

Screws on lower part of lock	Item 2	Tightening torque	20 Nm ((15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower part of lid lock
Screws on upper part of lock	Item 3	Tightening torque	20 Nm ((15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper part of lid lock

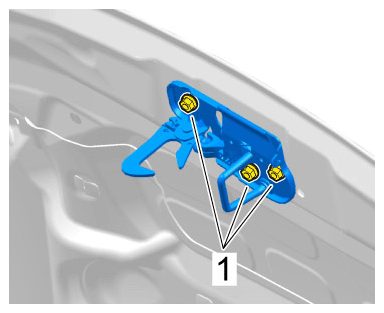

Nuts securing upper part of lock to front lid	Item 1	Tightening torque	12 Nm (8.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts securing upper part of lock to front lid

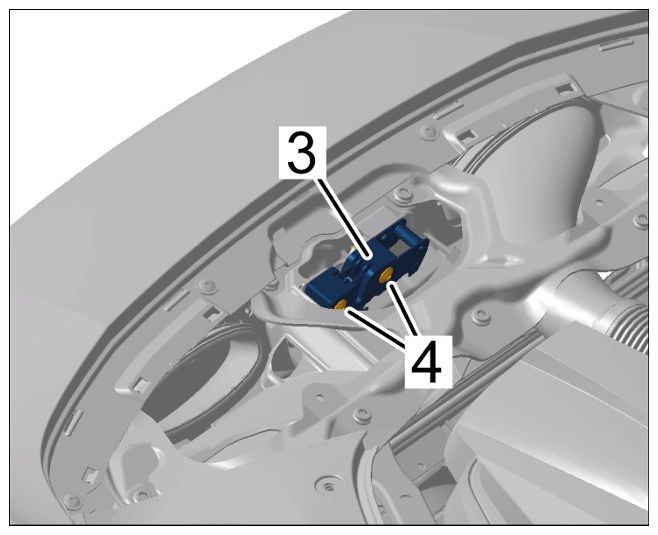

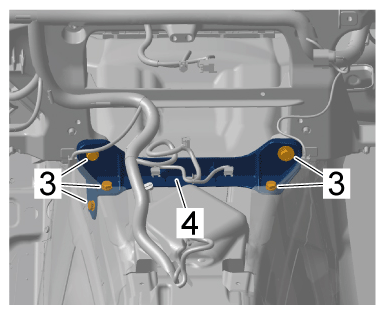

Screws securing front lock lower part to lock carrier	Item 4	Tightening torque	13.5 Nm (10 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing front lock lower part to lock carrier

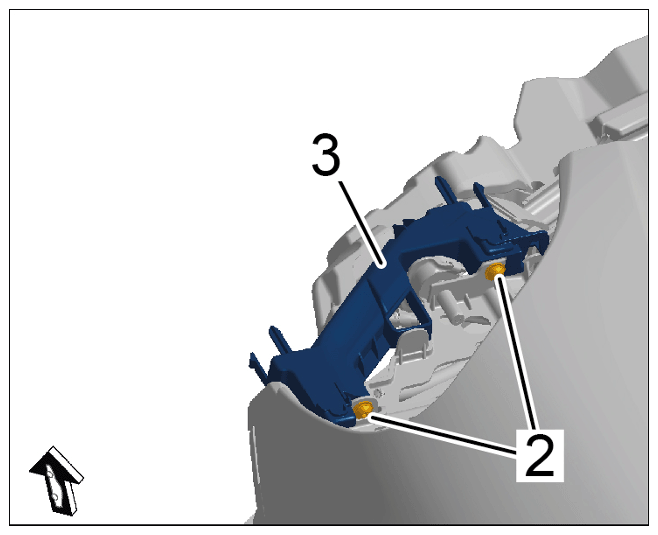

Screw securing lock reinforcement to lock carrier	Item 2	Tightening torque	13 Nm (9.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing panel on lower part of lid lock

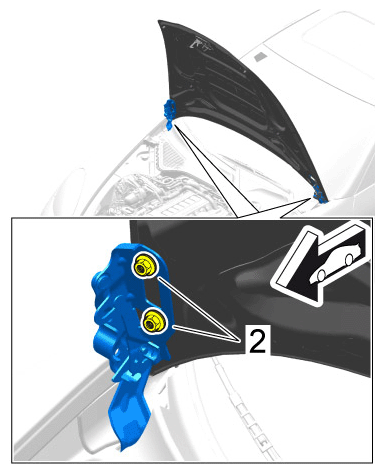

Nuts securing hinge to front cover	item 2	Tightening torque	20 Nm ((15 ftlb.) (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts securing hinge to front lid

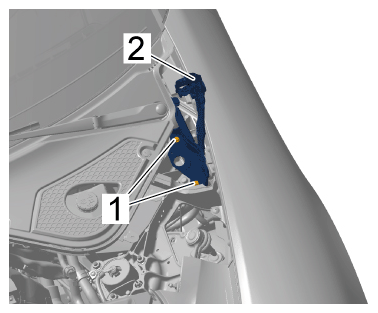

Screws securing hinge bracket to body	item 1	Tightening torque	23 Nm ((17 ftlb.) (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing hinge bracket to body

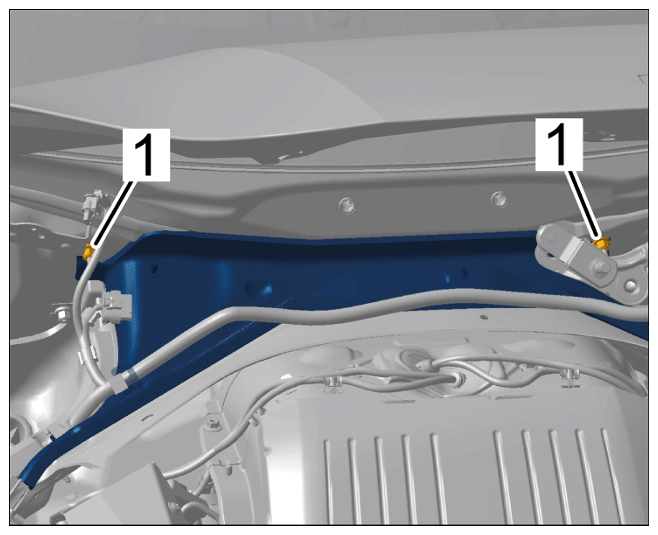

Screw securing upper part of plenum panel at the centre to A-strut	Item 1	Tightening torque	8 Nm ((6 ftlb.) +/- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for A-strut
Screw securing upper part of plenum panel at the side to centre plenum panel	Item 2	Tightening torque	4 Nm ((3 ftlb.) +/- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for A-strut

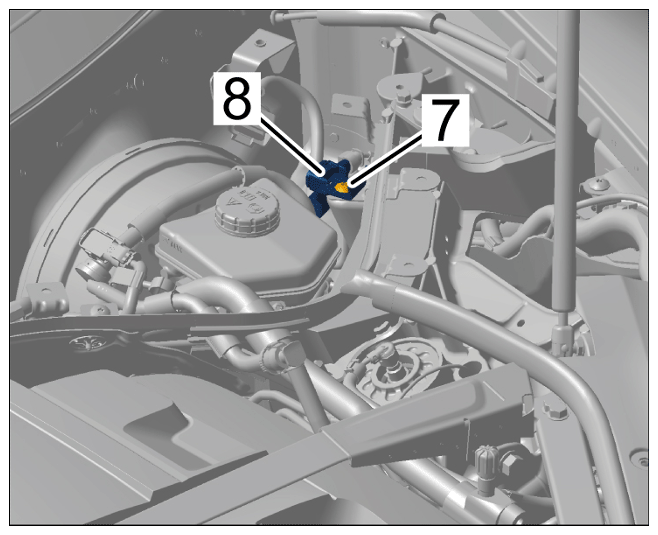

Screw securing upper part of plenum panel at the side to spring strut mount	Item 7	Tightening torque	8 Nm ((6 ftlb.) +/- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing side plenum panel to spring strut mount
Nut securing cross panel to firewall	Item 1	Tightening torque	3.5 Nm ((2.5 ftlb.)	+/- 10 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut securing cross panel to firewall

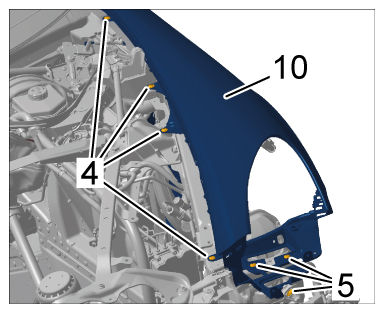

Screw securing front wing to bodyshell	Item 4	Tightening torque	8 Nm ((6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing
Screw securing front wing to lock carrier	Item 5	Tightening torque	8 Nm ((6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing

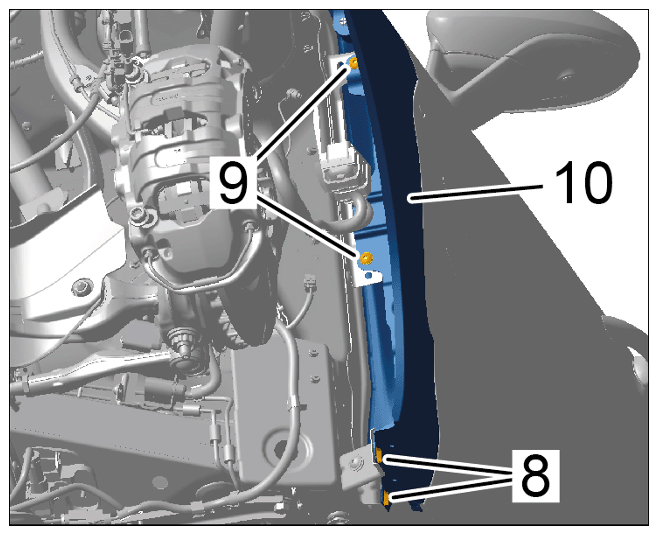

Screw securing front wing to A-pillar	Item 9	Tightening torque	8 Nm ((6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to A-pillar
Nut securing front wing to door sill	Item 8	Tightening torque	8 Nm ((6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to door sill
Screws securing headlight mounting to wing	Item 2	Tightening torque	5.5 Nm ((4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing headlight mounting to wing

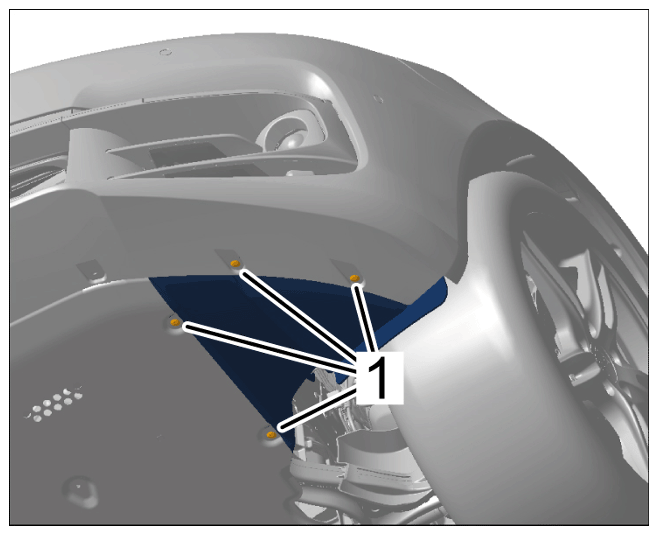

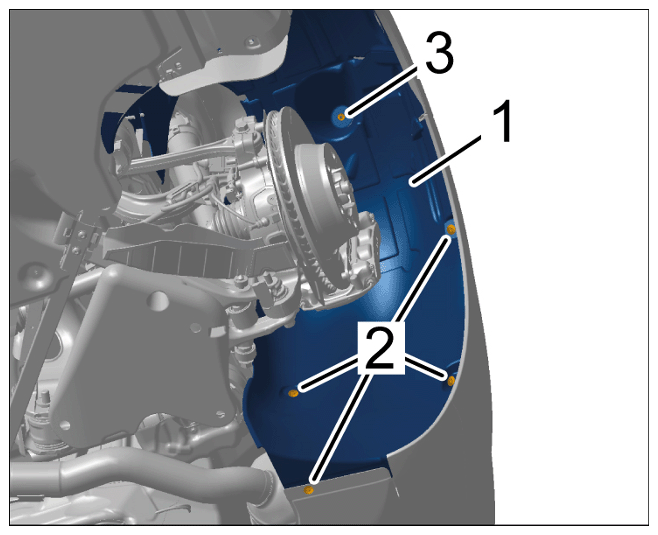

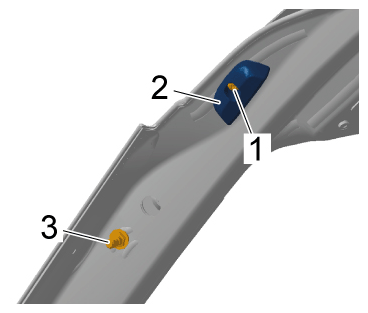

Screws on front part of front wheel housing liner, bottom	Item 1	Tightening torque	2.5 Nm ((1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on front part of front wheel housing liner at the bottom
Nut and screws on front part of front wheel housing liner	Items 2 and 3	Tightening torque	2.5 Nm ((1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front part of front wheel housing liner
Screws and nut	Items 1 and 2	Tightening torque	2.5 Nm ((1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear part of front wheel housing liner

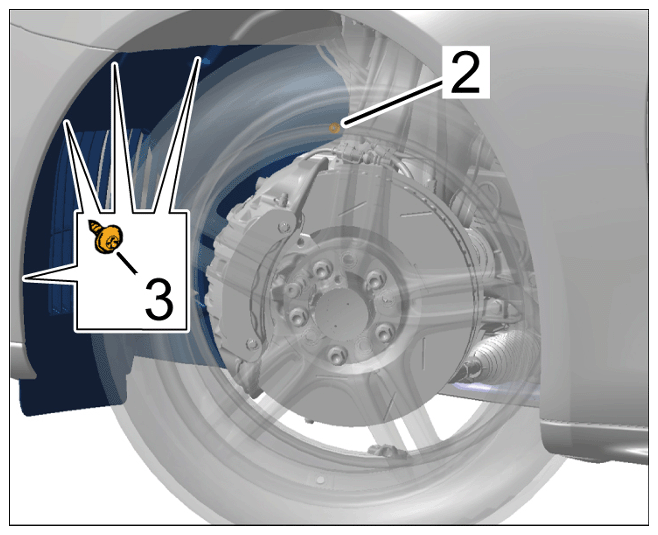

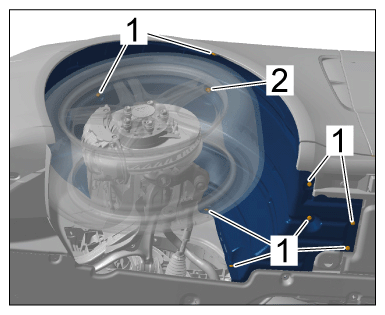

Nuts and screw on rear wheel housing liner	Items 2 and 3	Tightening torque	2.5 Nm ((1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear wheel housing liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear wheel housing liner

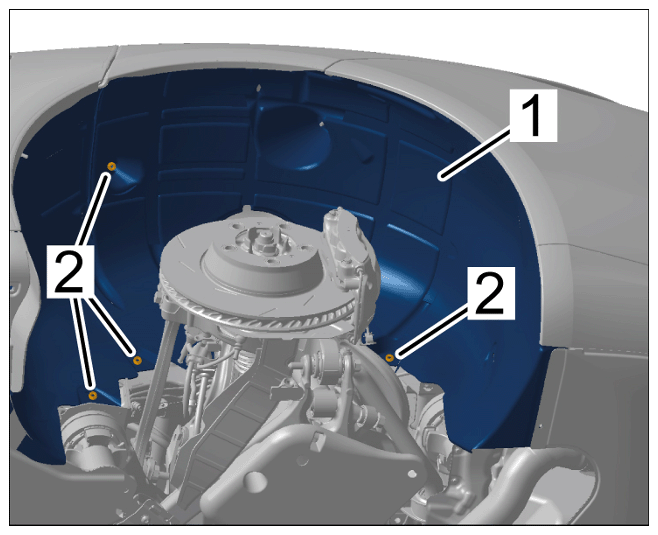

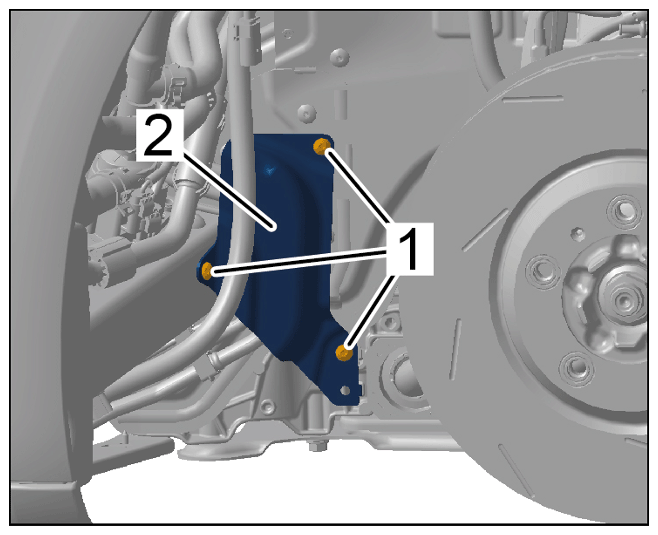

Screws for sheetmetal panel in wheel housing	Item 2	Tightening torque	8 Nm ((6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for sheetmetal panel in wheel housing

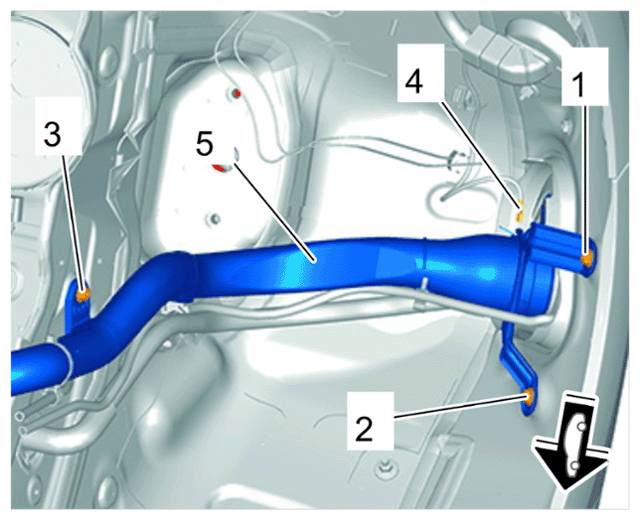

Fuel filler tube screws	item. 1; Item. 2; Item. 3	Tightening torque	8 Nm ((6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fuel filler tube holder

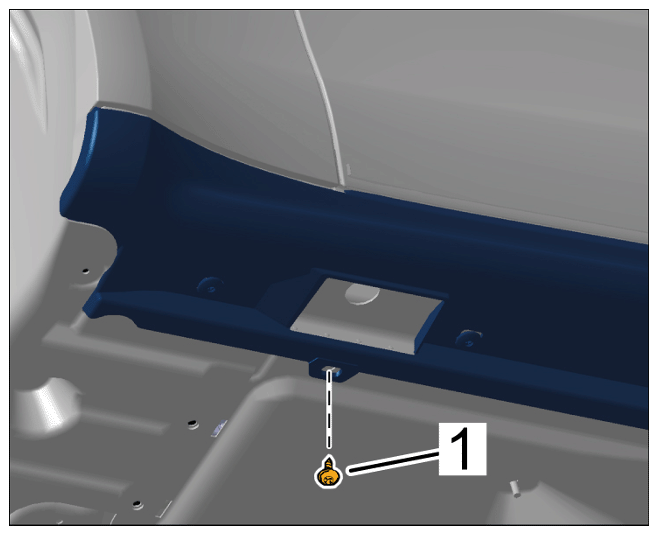

Screw securing side skirts to longitudinal member	Item 1	Tightening torque	2.5 Nm ((1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door entry guard

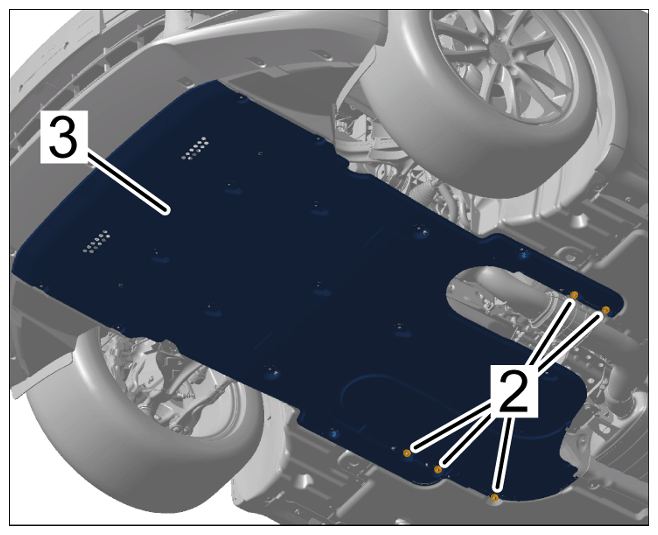

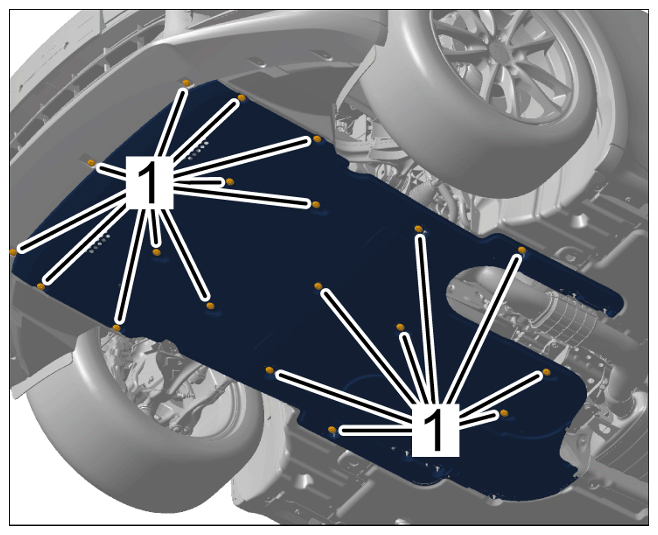

Screws for cover on front underbody	Item 1	Tightening torque	2.5 Nm ((1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for cover on front underbody
Nuts for cover on front underbody	Item 2	Tightening torque	2.5 Nm ((1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for cover on front underbody

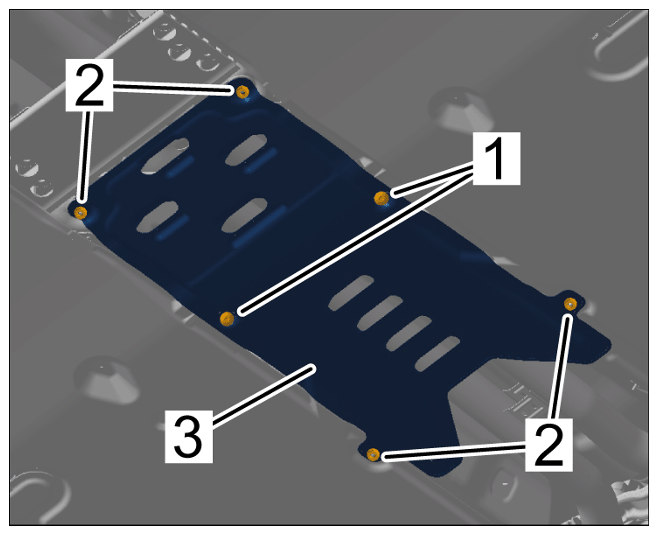

Screws for tunnel cover on centre underbody	Item 1	Tightening torque	2.5 Nm ((1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for tunnel cover on centre underbody cover
Nuts for tunnel cover on centre underbody cover	Item 2	Tightening torque	2.5 Nm ((1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for tunnel cover on centre underbody cover
Nuts for centre underbody cover (at the sides)	Item 4	Tightening torque	2.5 Nm ((1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for centre underbody cover (at the sides)
Screws for centre underbody cover (at the sides)	Item 5	Tightening torque	2.5 Nm ((1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for centre underbody cover (at the sides)

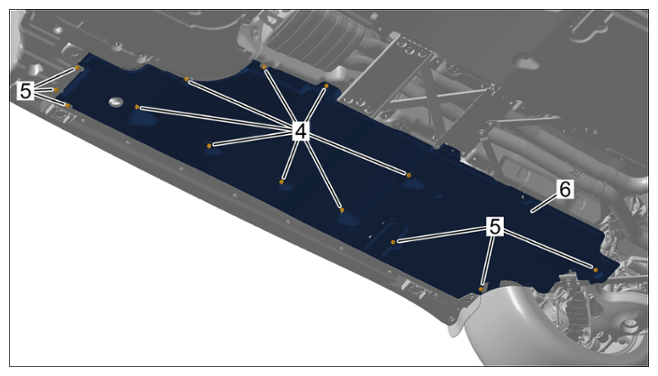

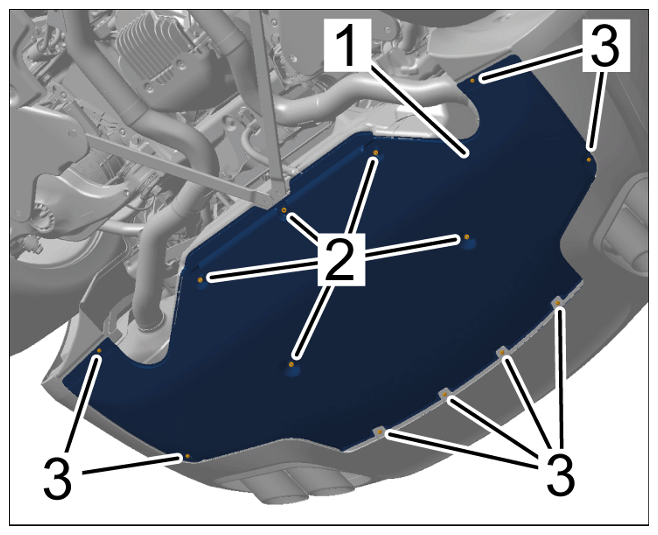

Nuts for rear underbody cover	Item 2	Tightening torque	2.5 Nm ((1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for rear underbody cover
Screws for rear underbody cover	Item 3	Tightening torque	2.5 Nm ((1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear underbody cover

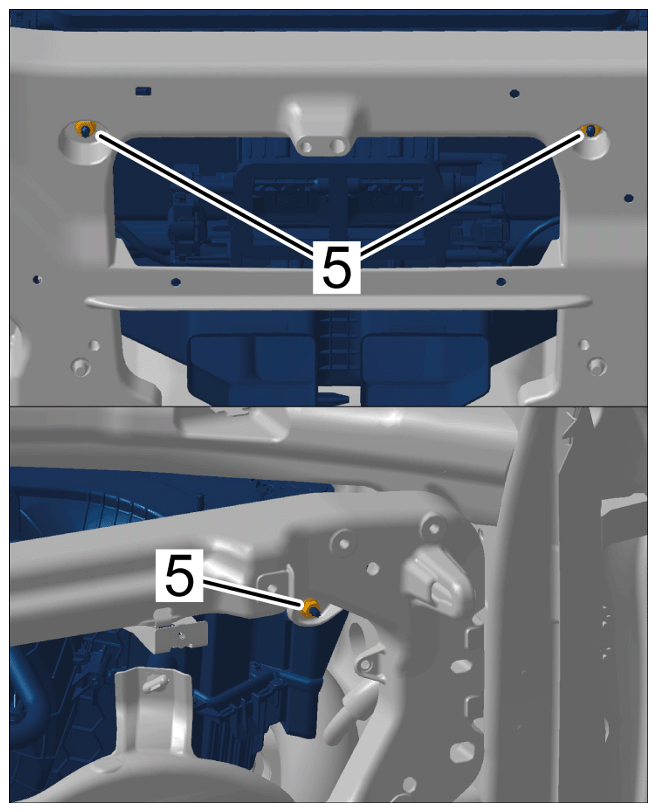

Nuts securing heating/fresh-air unit to dashboard bracket	Item 5	Tightening torque	8 Nm ((6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts securing heating/fresh-air unit to dashboard bracket
Screw securing centre support to dashboard bracket	Item 3	Tightening torque	20 Nm ((15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing centre support to dashboard bracket

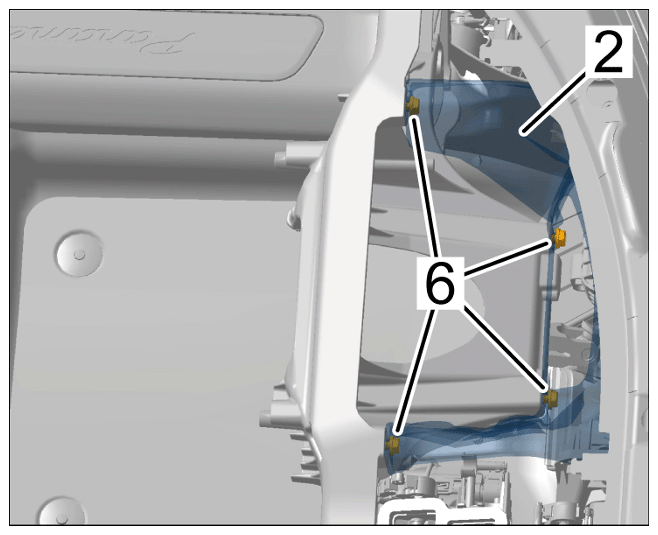

Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket)	Item 6	Tightening torque	20 Nm ((15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket)

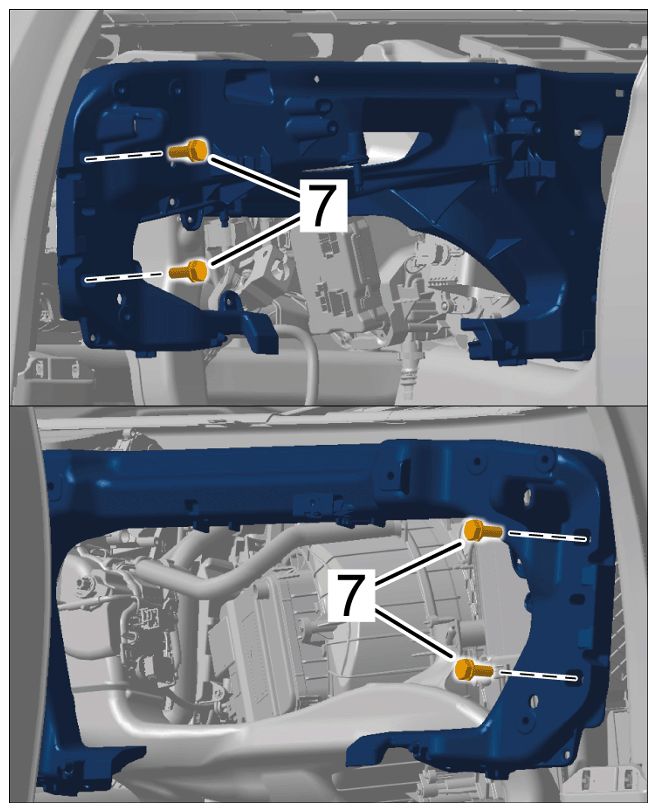

Screw on dashboard bracket (main bracket)	Item 7	Tightening torque	13 Nm ((9.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on dashboard bracket (main bracket)
Screw on dashboard bracket (front bracket)	Item 1	Tightening torque	16 Nm ((12 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on dashboard bracket (front bracket)

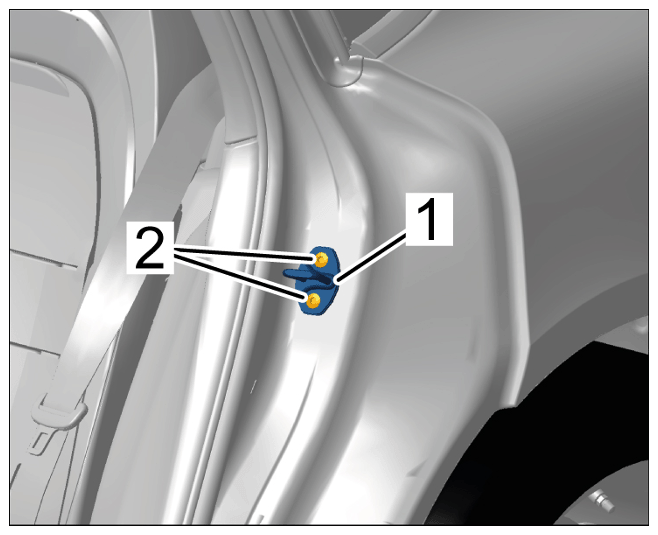

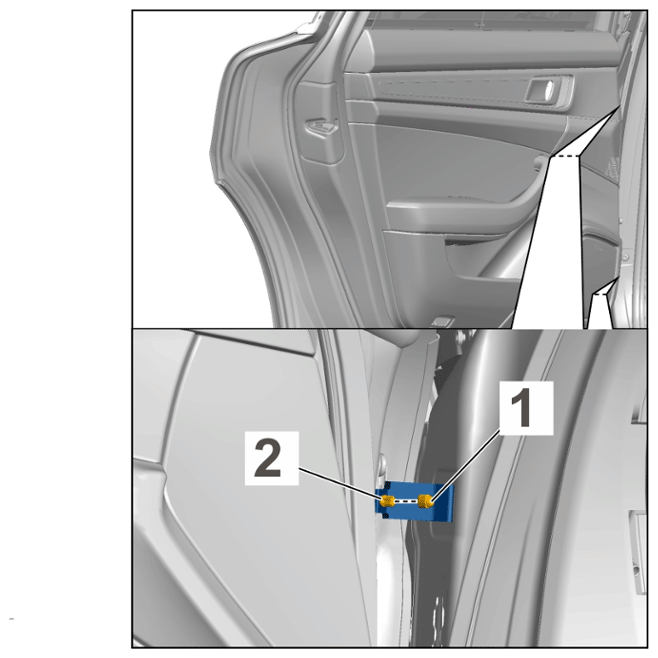

Screw on rear door lock peg	Item 2	Tightening torque	25 Nm ((19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear door lock peg

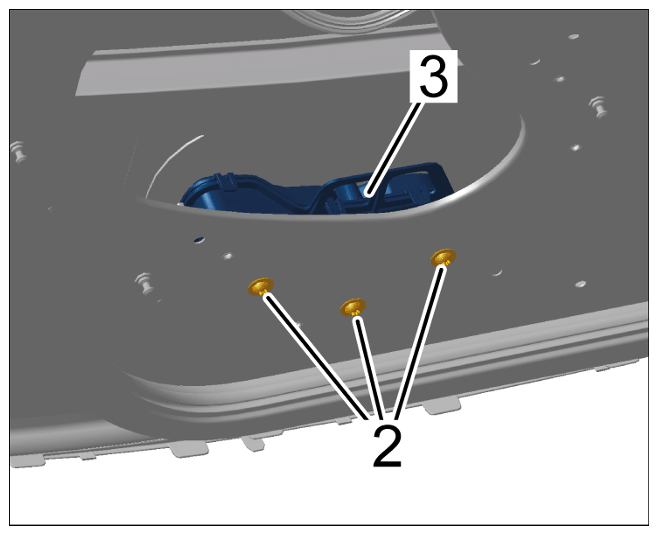

Screw securing closing aid motor to rear door	Item 2	Tightening torque	7.4 Nm ((5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing closing aid motor to rear door

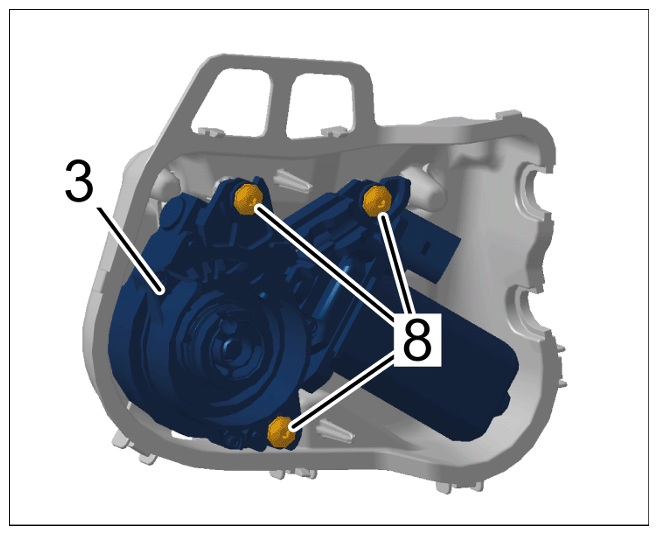

Screw for closing aid motor in housing	Item 8	Tightening torque	7.4 Nm ((5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing motor for closing aid

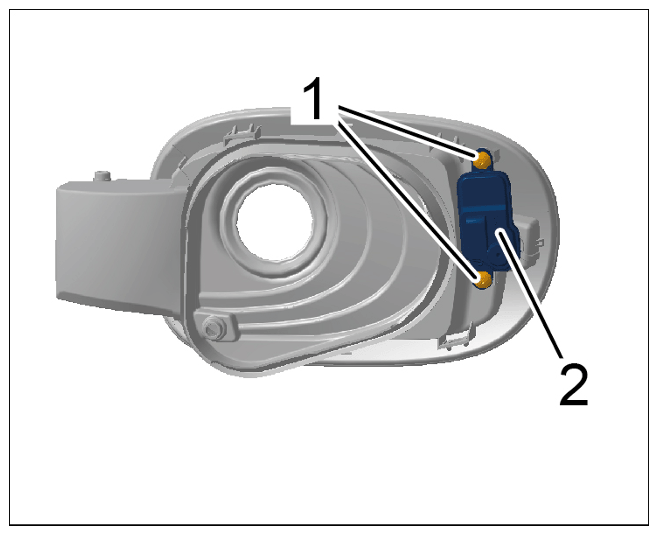

Screw securing filler flap switching element to filler flap	Item 1	Tightening torque	1.5 Nm ((1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing filler flap switching element to filler flap
Screws securing holder to lock carrier	Item 1	Tightening torque	8 Nm ((6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing holder to lock carrier
