Installing A-Pillar

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Tack on sheetmetal insert used as welding backing strip on the body.
> 5X00IN10 WELDING ALUMINIUM

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sheetmetal insert
Install A-pillar and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.

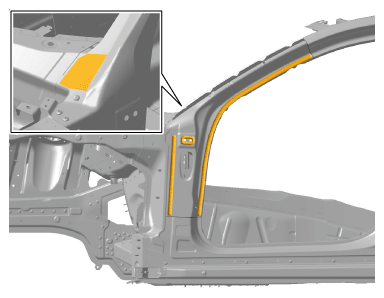

Apply adhesive on joint areas of the body. > Application depth 3 mm
Working with body structural adhesive

> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE - section on "Information"

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas

Information
- Apply adhesive evenly over the entire bonding surface.

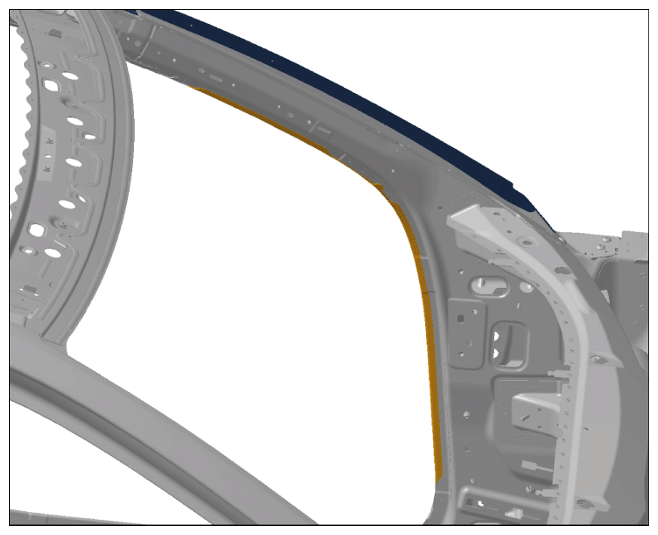

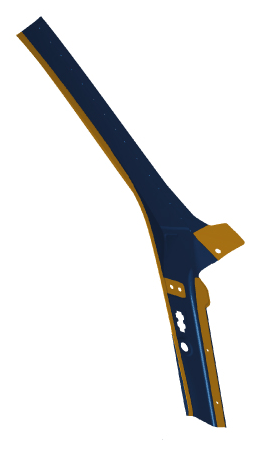

Apply adhesive on A-pillar. > Application depth 0.5 mm

Working with body structural adhesive

4.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A-pillar

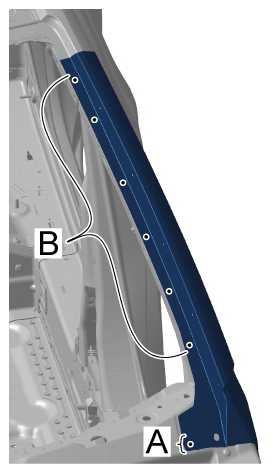

Rivet in the A-pillar in area -A- . > BLIND RIVET 999.190.229.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A-pillar
Resistance spot-weld the A-pillar in area -B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A-pillar

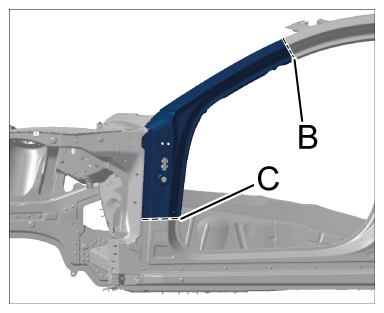

Apply an aluminium weld to the A-pillar -B and C- .
> Welding aluminium

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A-pillar

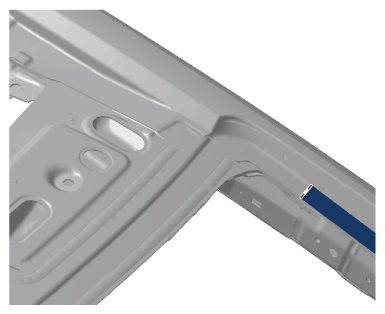

Apply a full weld to the insert at the front side using inert gas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side insert

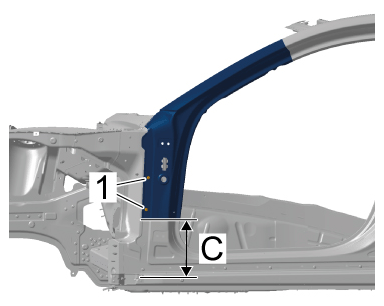

Screw in self-tapping screws -1- .
> 5X00IN24 SETTING SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screws

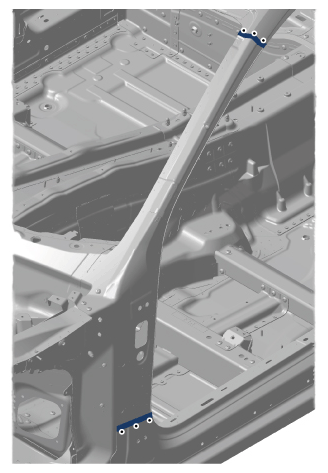

Bend over edges in the front door aperture using > VAS 6635/5 - Crimping pliers .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Edges in door aperture
