Removing Body Front Section

Information

Shown on the left side.

Right side same as left side.

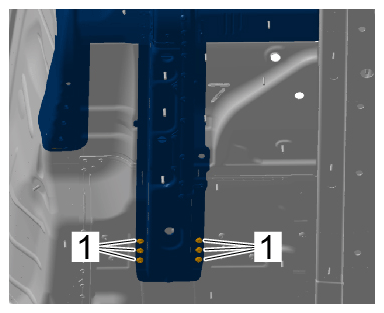

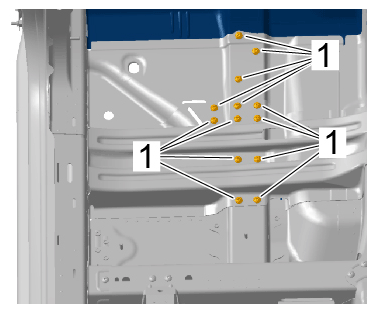

1. Unscrew self-tapping screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Self-tapping screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Self-tapping screws

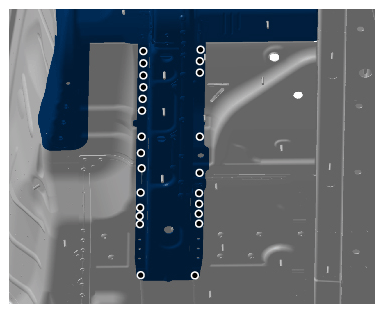

2. Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

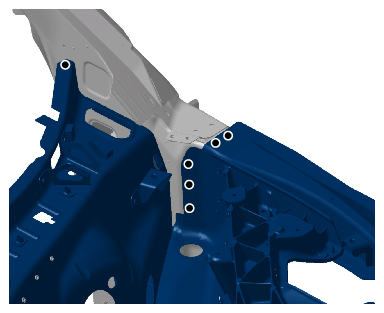

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Punch rivets

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Punch rivets

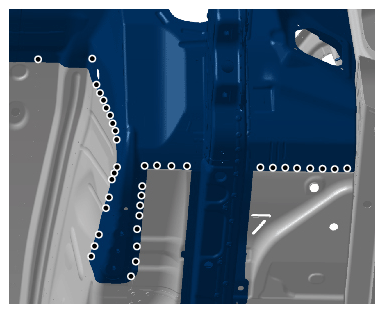

3. Drill out spotwelds.

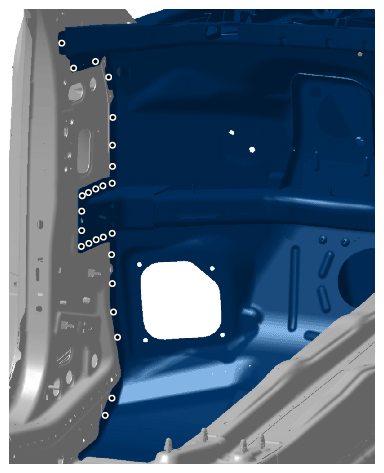

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spotwelds

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inner spotwelds

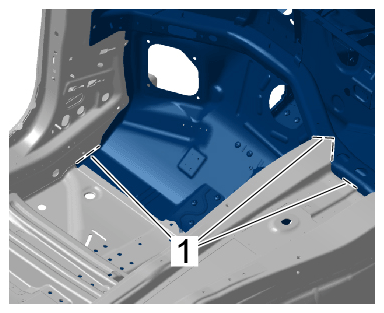

4. Grind down welded seams -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Welded seams

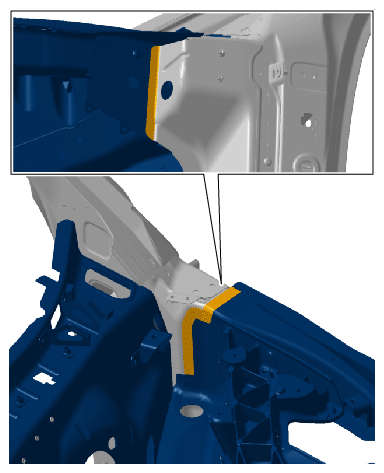

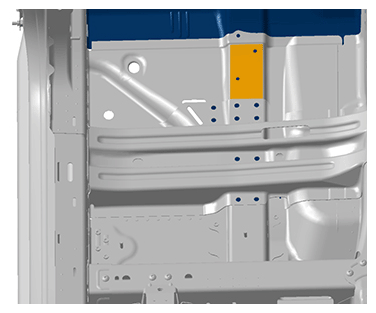

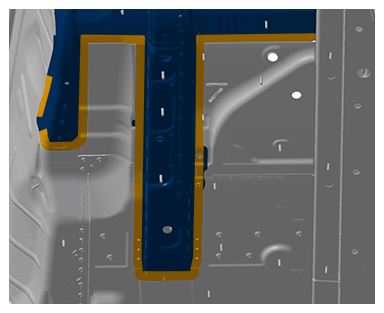

5. Heat bonding areas using > V.A.G 1416 - Hot-Air Blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

6. Remove body front section.
