Installing Cowl Panel Cover

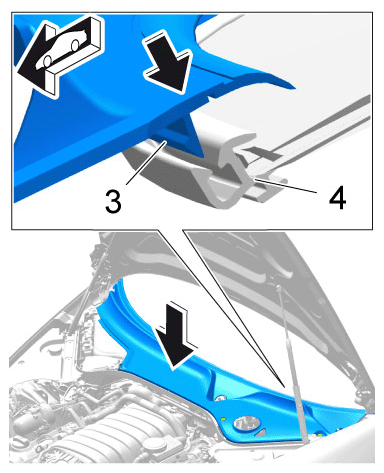

Insert cowl panel cover into the plenum panel and align it.
Engage locking lugs -3- on the cowl panel cover in the retaining strip on the windscreen -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cowl panel cover

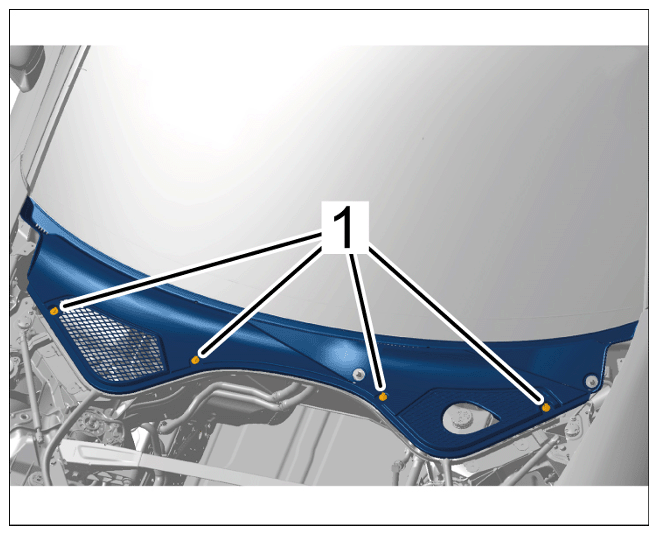

Press retaining lugs -1- for the cowl panel cover into the clips underneath.

Fig 1: Cowl Panel Cover Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining lugs for cowl panel cover
