Installing Front Part Of Front Wheel Housing Liner

  1. Position front part of front wheel housing liner.
  2. Screw in and tighten screws -3-  and nut -2-  in front part of wheel housing liner. > Tightening torque 2.5 Nm ((1.8 ftlb.)

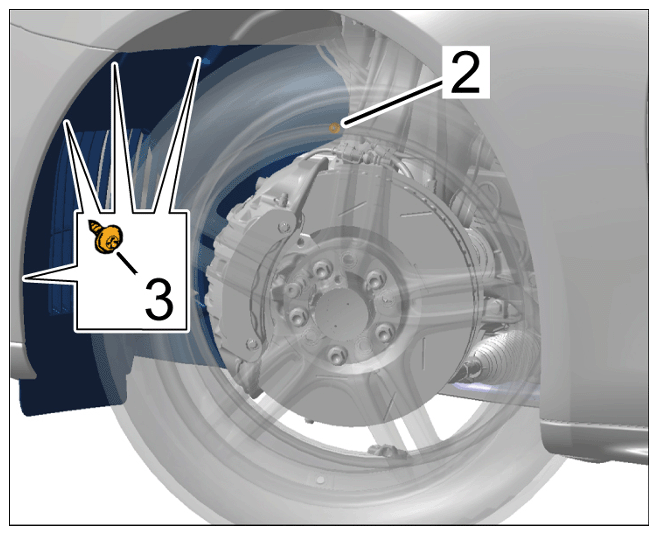

    G16368206Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws and nuts in front wheel housing liner

  3. Screw in and tighten screws -1-  in front part of front wheel housing liner at the bottom. > Tightening torque 2.5 Nm ((1.8 ftlb.)

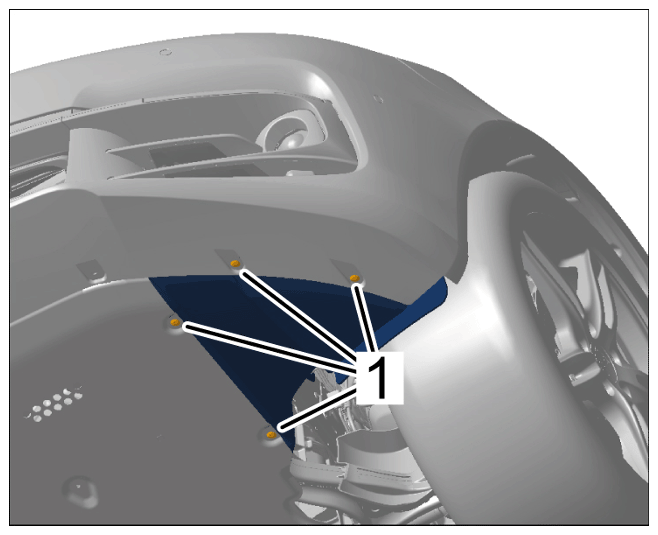

    G16368207Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws in front part of front wheel housing liner at the bottom
