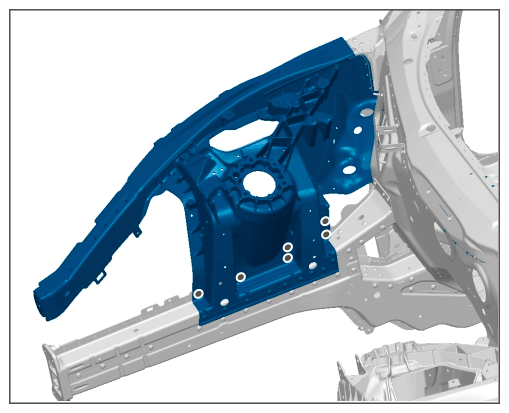

Installing Spring Strut Mount

1. Install spring strut mount and check that it fits perfectly.

   Information

   • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
   • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
   • Do not begin bonding work until all materials and tools necessary for later repair work are available.
2. Apply adhesive on the joint area of the body.

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

   Working with body structural adhesive

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

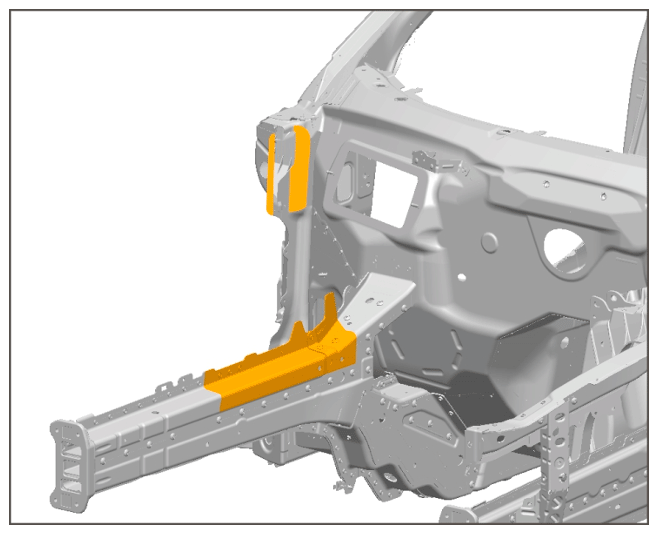

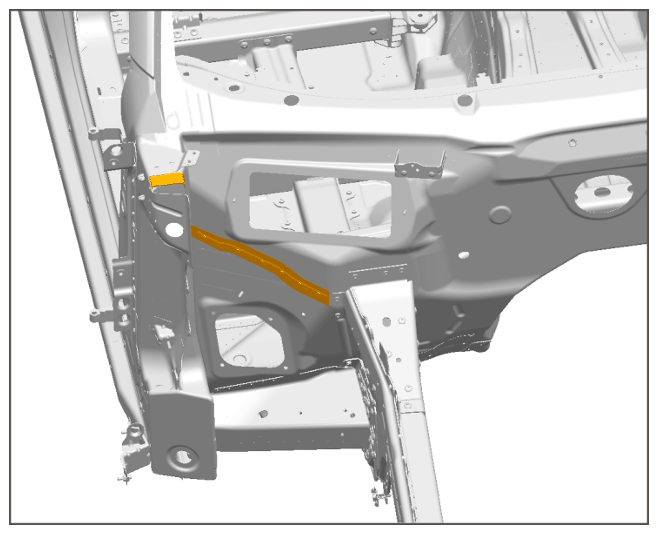

   Apply adhesive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

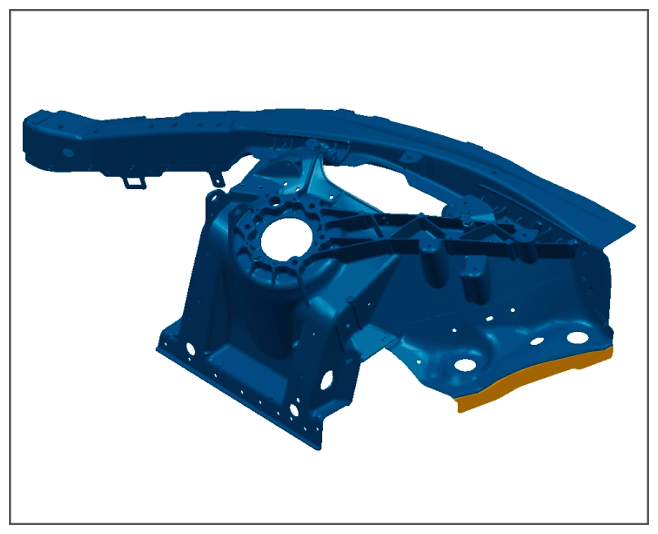

   Apply adhesive

3. Apply adhesive on spring strut mount.

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

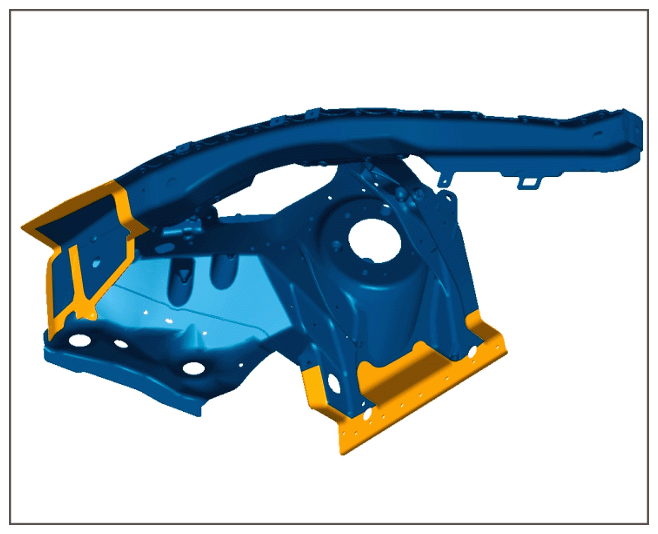

   Apply adhesive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Apply adhesive

   1. 3.1 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm
4. Rivet in spring strut mount. > BLIND RIVETS 999.190.227.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

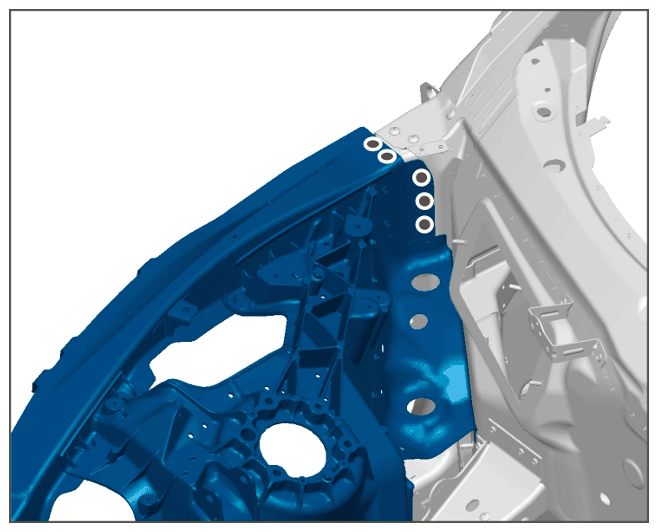

   Riveting in spring strut mount

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Riveting in spring strut mount

5. Rivet in spring strut mount. > BLIND RIVETS 999.190.229.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

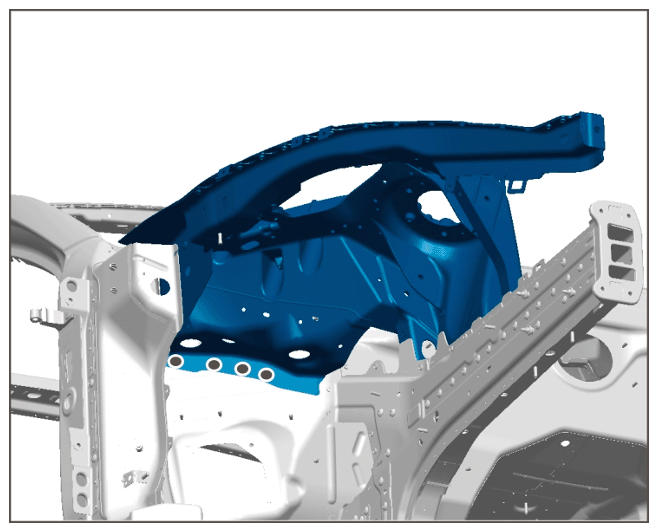

   Riveting in spring strut mount

6. Screw in self-tapping screws.

   > 5X00IN Setting self-tapping screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

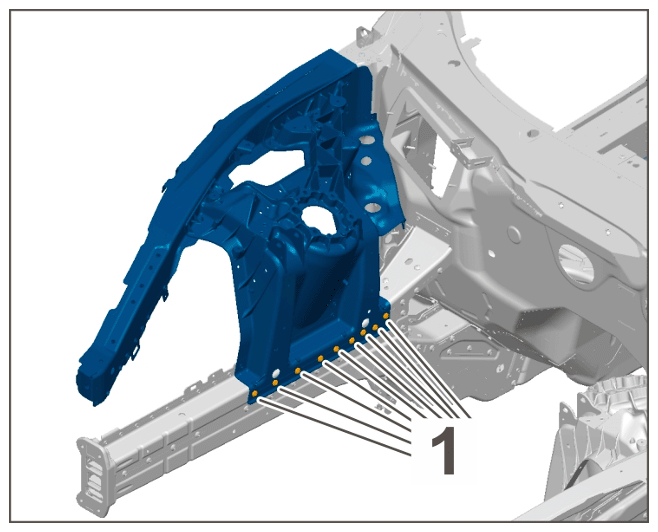

   Unscrewing self-tapping screws

7. Re-connect ground connection between the longitudinal member and spring strut mount by applying a full weld using inert gas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

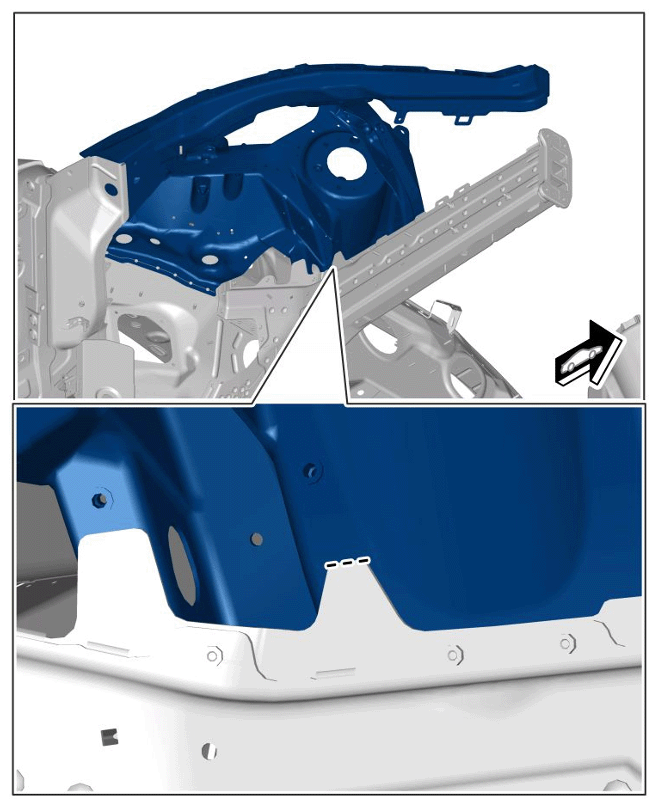

Re-connecting ground connection
