Removing Lock Carrier

Information

• Some repairs are shown only on one side of the vehicle.
• The steps are identical for the opposite side of the vehicle.

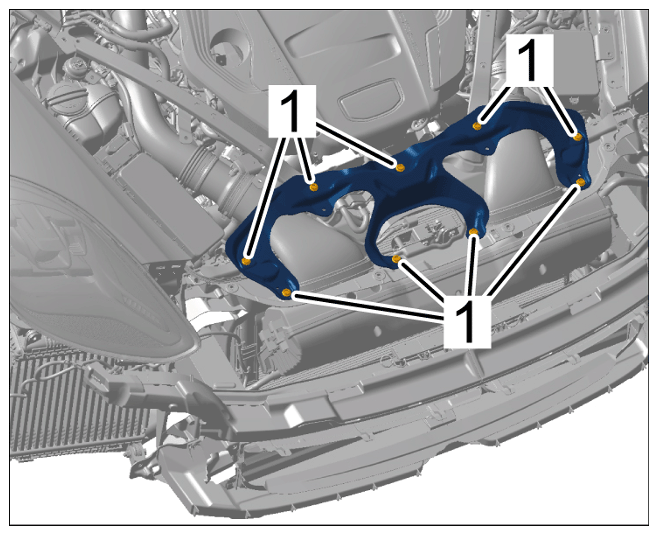

1. Unscrew screws -1-  and remove reinforcement.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing reinforcement

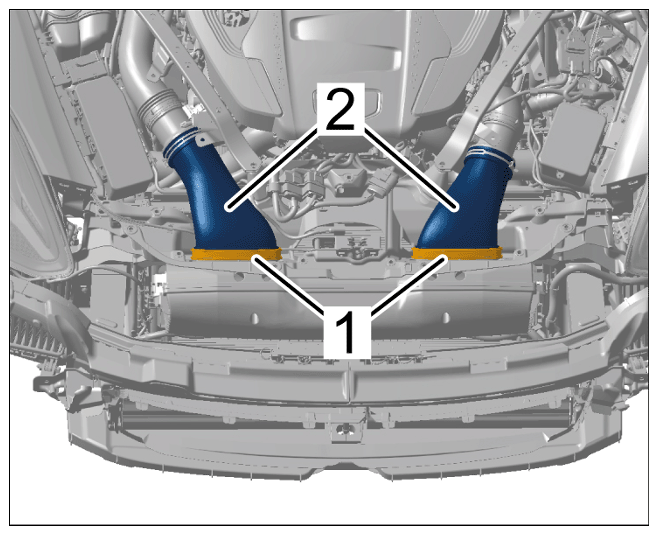

2. Loosen clamps -1-  and pull air ducts -2-  off the air cleaner housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening clamps

3. Disconnect electric plug connection at microswitch for lid lock.
4. Release and disconnect electric plug connections -1 and 2-  on the charge-air coolers at the left and right.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and pulling off electric plug connection

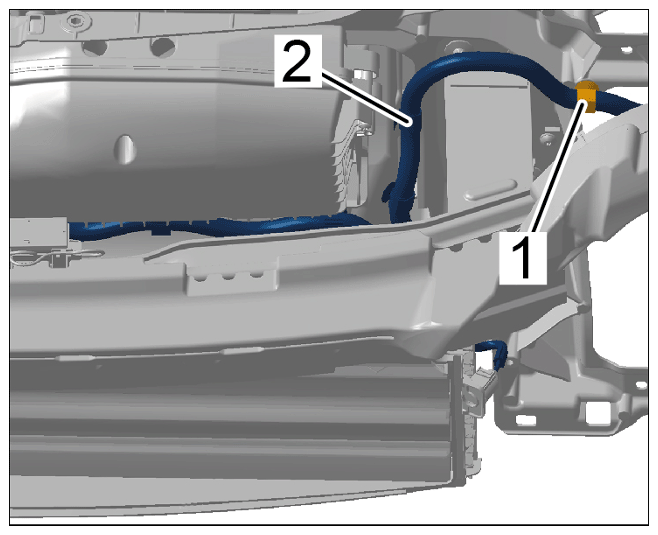

5. Unclip line bracket -1-  at the left and right and move electric wire harness -2-  towards the center of the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting electric wire harness

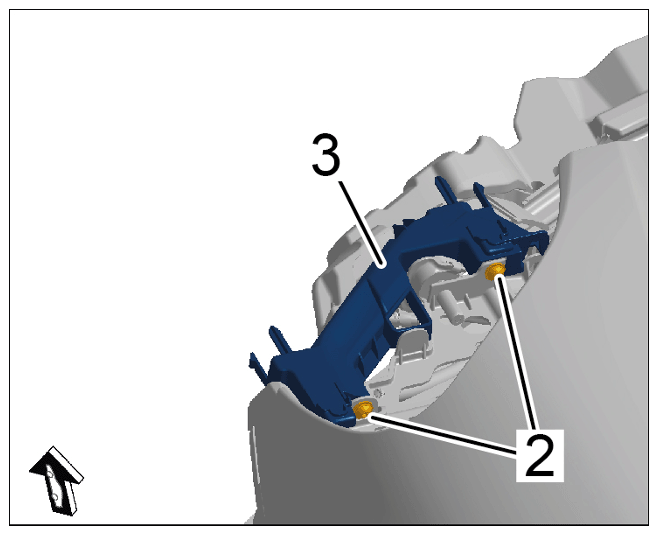

6. Unscrew screws -2-  and remove headlight mounting -3-  at the left and right.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing headlight mounting

7. Secure radiator assembly on the vehicle to prevent it from falling down.

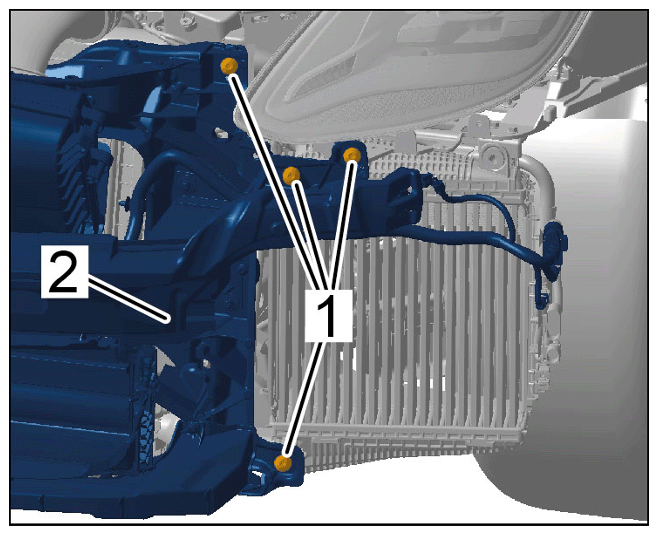

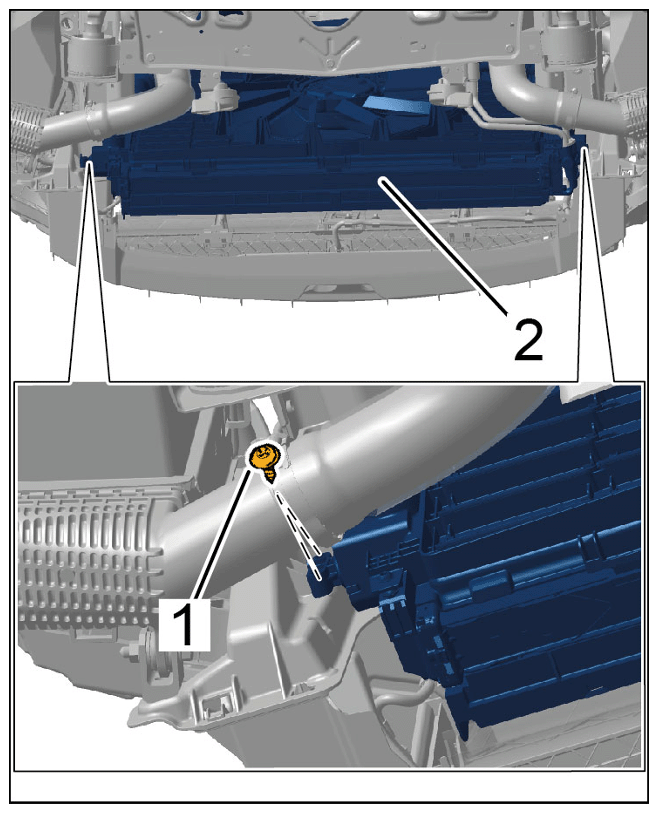

8. Unscrew screws -1-  at the left and right on the radiator assembly -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening radiator assembly

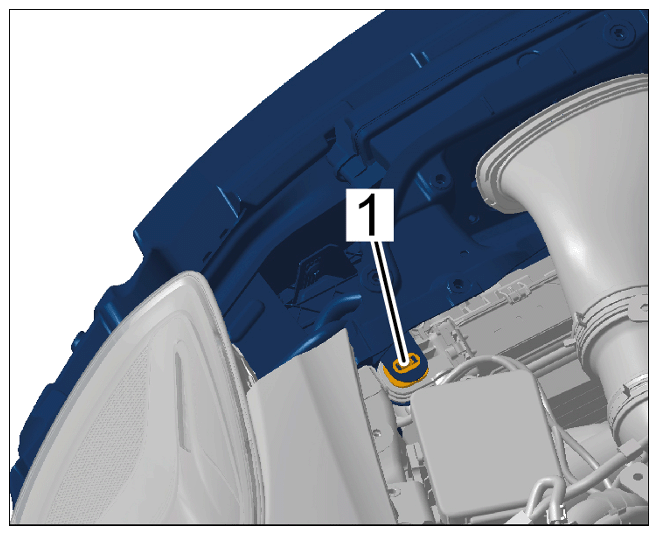

9. Unclip lock -1-  on radiator assembly at the left and right.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing fuse

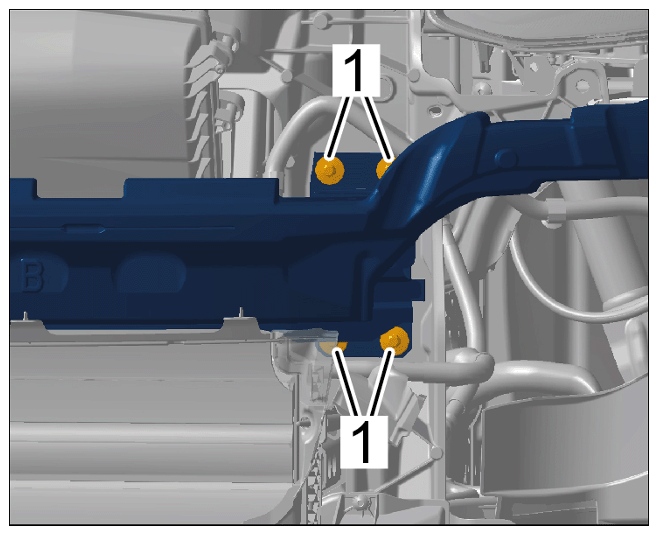

10. Unscrew screws -1-  on the lock carrier at the left and right.
    Fig 1: Lock Carrier Component Location

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening lock carrier

    Information

    • The help of another person is required.
11. Unscrew screws -1-  on the front bumper at the left and right and remove lock carrier.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Detaching bumper
