Installing Air Bellows

NOTIFICATION

Air springs can become kinked/fall out

• Risk of damage to air springs

  → Deactivate the levelling system before raising the vehicle.

  → Check the bellows before lowering the vehicle.

Information

Recommendation for workshops replacing shock absorbers for workshops:

• Dampers can be replaced separately up to a mileage of 30, 000 km or 3 years.
• If the mileage is > 30, 000 km or the components are more than 3 years old, we recommend replacing them in pairs.

Information

Check the following before installing the air line:

• Check that the cutting ring -1-  and Voss threaded joint -2-  are on the air line -3-  (not relevant if the air spring bellows was replaced and the Voss threaded joint that is pre-fitted on the air spring bellows is used).
• Check that the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking air line

Only one marking -1-  on the air line should be visible.

Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking that air line is fitted correctly

Information

To prevent damage to the air suspension bellows, pay particular attention to the following points when handling air suspension bellows:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

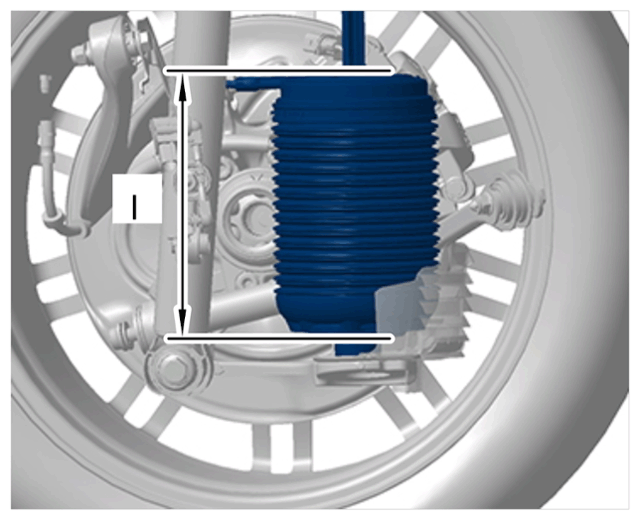

Length l of air suspension bellows

• The air spring bellows must never be bled completely. This applies to both installed and removed air spring bellows.
• Air spring bellows must only be bled as described under

  > 430117 - BLEEDING AND FILLING THE LEVELLING SYSTEM

• An air suspension bellows is depressurised if the pressure is less than 1.5 bar.
• The air suspension bellows must not be pulled apart.
• The air suspension bellows must not be bent.
• The air suspension bellows must not be carried at the insertion pin.
• The air suspension bellows must not be squeezed together to a length l less than 220 mm.
• The vehicle must never be lowered when the levelling system is empty.
• Air suspension bellows must be installed in the vehicle within one year.

1. Installation is performed in reverse order. Pay particular attention to the following:

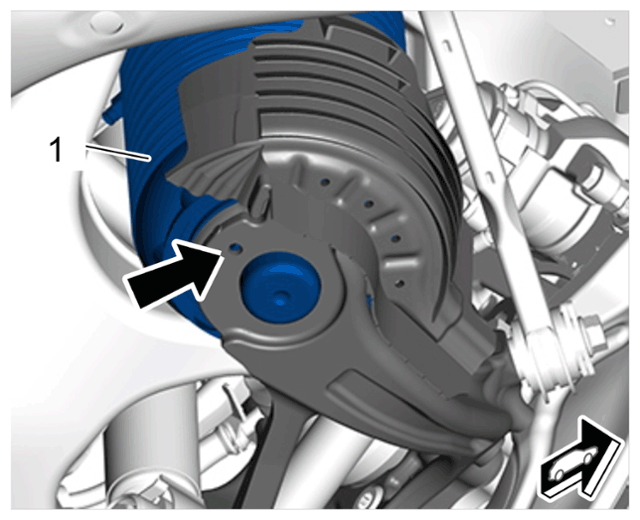

   1. 1.1 Ensure correct seating -Arrow-  of the air bellows -1-  in the supports.

      Air bellows must not be bent or twisted!

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Seating of air bellows

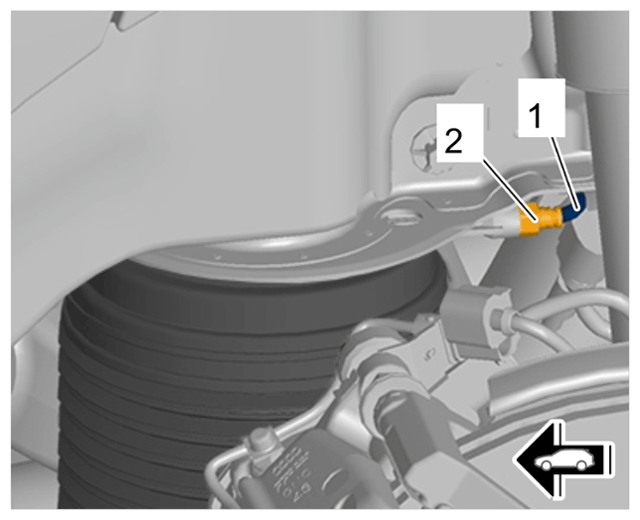

   2. 1.2 Tighten union nut securing air line -2-  to air bellows.

      > Tightening - torque 3 Nm (2 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Air line for air bellows
