Height Measurement Point On Front Axle

Information

Check the following at the height measuring point on the front axle:

• Lower edge of the wing is covered by the front lid.
• The height on the front axle must only be measured when the front lid is open.

The distance between the lower edge of the wing and upper edge of the measured-value pickup -X-  is measured.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

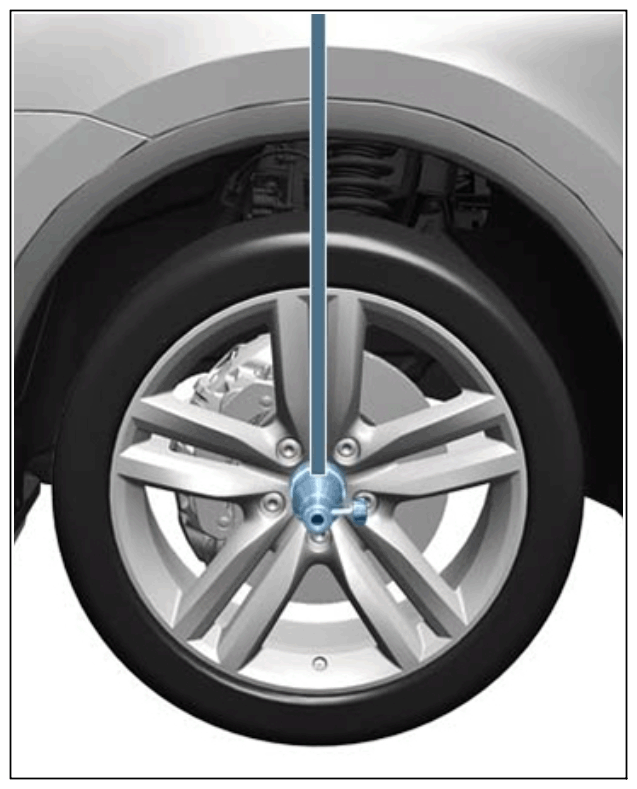

Dimension = upper edge of measured-value pickup to lower edge of wing, shown as an example
