Installing Cylinder Head Cover - Left Cylinder Bank

WARNING: This page is about a different variant/trim than selected.

Replace seal.
Oil the running surfaces of the camshafts.
Check that hydraulic tappets and valve levers are fitted correctly.
Information
- The liquid sealant Loctite 5970-BM must be used.
- The bead of sealant you apply must not be thicker than the prescribed thickness. Excess sealant can block the lubrication system.
- Sealant must not get into the threaded bores
- The cylinder head cover must be installed within 5 minutes of applying the sealant

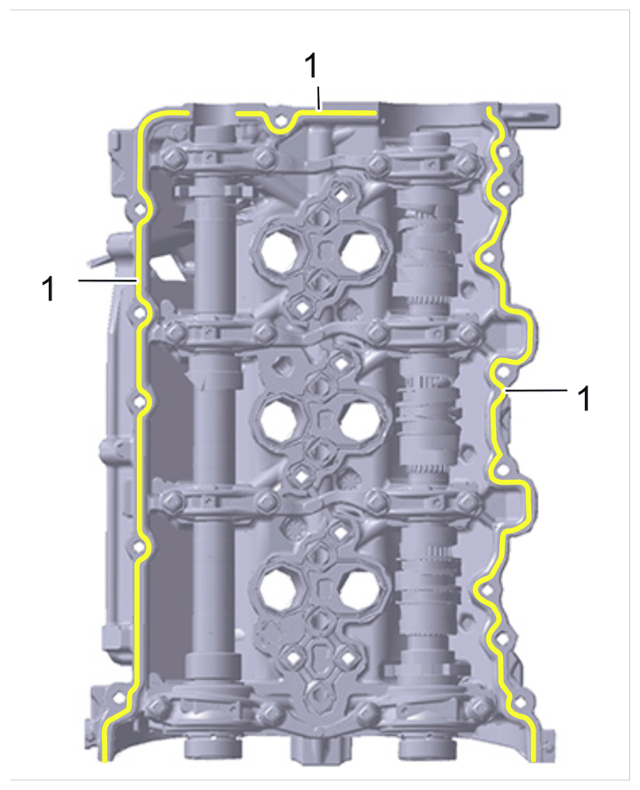

Carefully apply continuous beads of sealant -1- with a thickness of 3 mm all the way around on the sealing faces of the cylinder head cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying sealant on left cylinder head cover
Install cylinder head cover -20- .

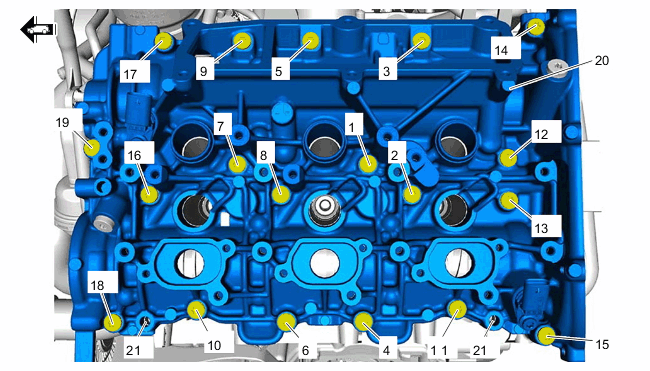

Fig 1: Cylinder Head Cover Screws Tightening Sequence (Left Cylinder Bank)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cylinder head cover on left cylinder bank
1. 5.1 Insert > T40116 - locating pins through the bores in the cylinder head cover -20- and screw them into the cylinder head.
2. 5.2 Position cylinder head cover -20- on > T40116 - locating pins on the cylinder head.
3. 5.3 Screw in and tighten new screws on cylinder head cover -1 to 19- .
  - Initial tightening 8 Nm (6 ftlb.)
  - Torque angle + 90°

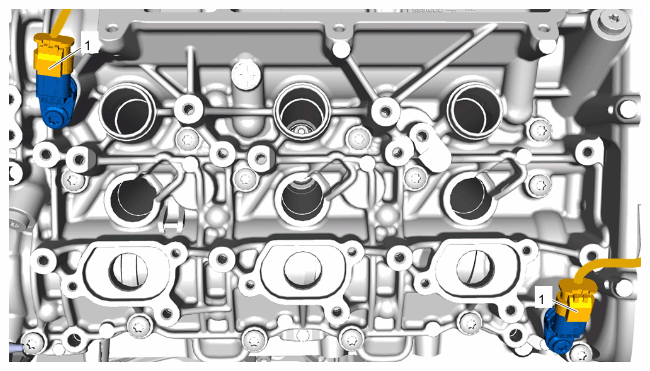

Connect and lock cable plugs for camshaft sensors -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plugs for camshaft sensors
Only for vehicles with particle filter:

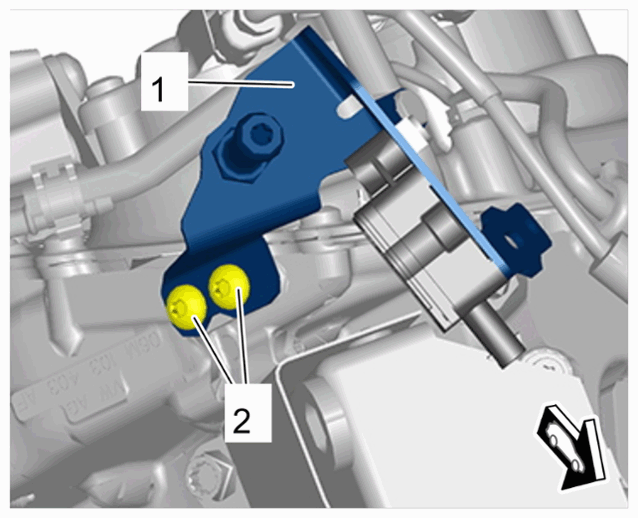

Secure differential pressure sensor holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Differential pressure sensor holder
1. 7.1 Fit differential pressure sensor holder -1- .
2. 7.2 Screw in and tighten screws on differential pressure sensor holder -2- .
  - Tightening torque 9 Nm (6.5 ftlb.)
