Remove The Control Chain
NOTIFICATION
Timing not set correctly
- Risk of engine damage
- Rough running engine
- Loss of engine power
- → Do not use force when fitting the staking tool.
- → Make sure that the gap is equal on both sides.
- → When inserting the staking tools, do not use force to turn the camshafts against any resistance.
- → The engine must be exactly at top dead centre.
- → The opposite cylinder must be at ignition TDC.

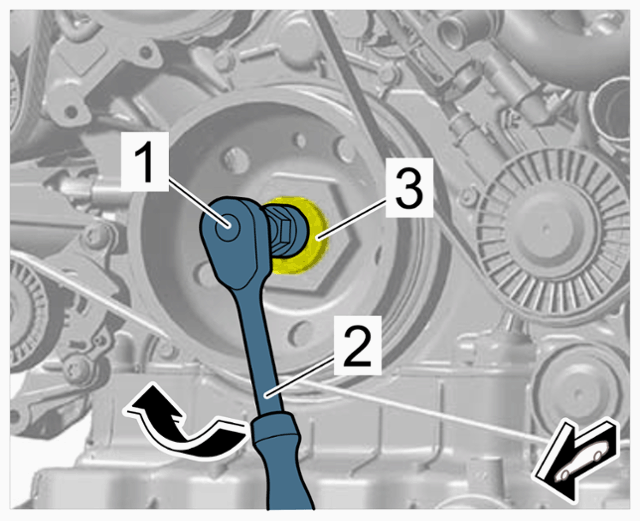

- T40263 - Wrench, SW21-2-
and >
T40314 - adapter-1-
must be fitted on the crankshaft -3-
.
Tools on crankshaft
- Use >
T40263 - wrench, SW21
and >
T40314 - adapter

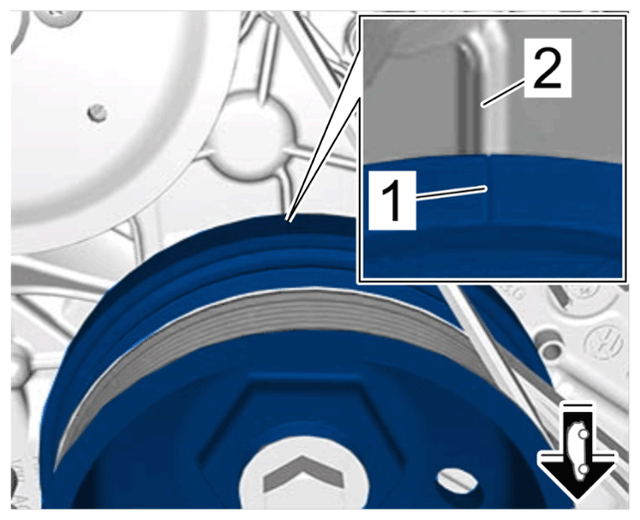

to turn the crankshaft clockwise until the marking on the vibration damper -1-
is at TDC -2-
.
TDC marking on vibration damper

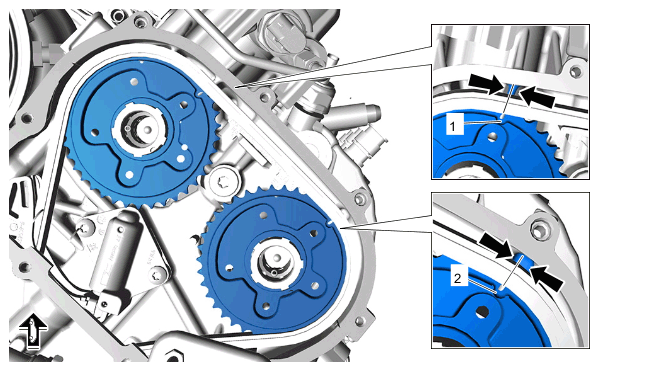

- Check that the markings on the camshaft actuators (cylinder bank 1) -1 and 2-
are aligned with the reference points -Arrows-
on the camshaft housing. If necessary: Turn the crankshaft one turn further until it is back at TDC.
Markings on camshaft actuator (cylinder bank 1)

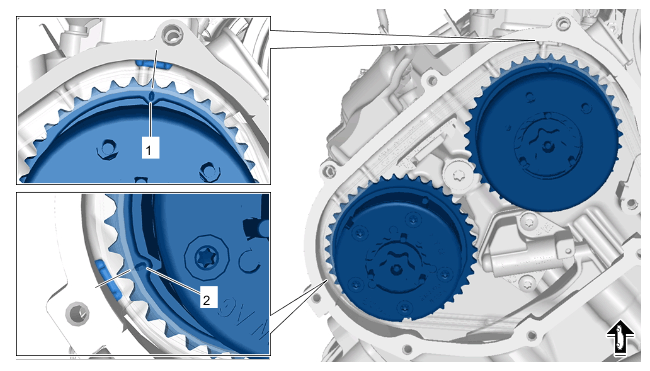

- The markings on the camshaft actuators (cylinder bank 2) -1 and 2-
must be aligned with the reference points -Lines-
on the camshaft housing.
Markings on camshaft actuator (cylinder bank 2)

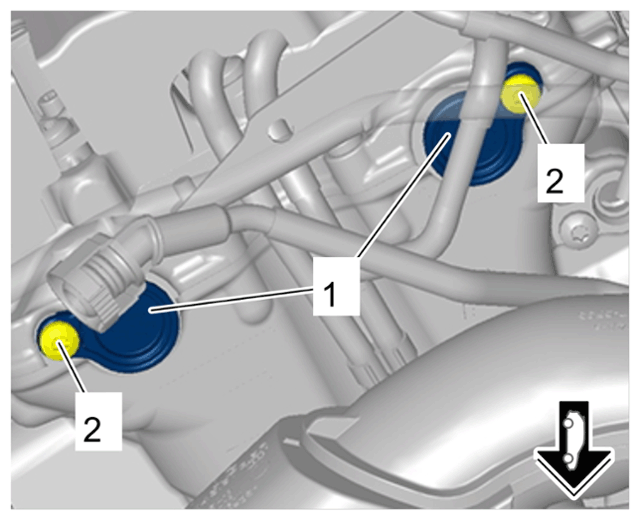

- Remove stoppers on camshafts -1-
.
- 5.1 Unscrew screws on stoppers on camshafts -2- .
- 5.2 Remove stoppers -1- .
Stoppers on camshafts
Information
The camshaft clamp must be easy to insert and must not be fitted using a striking tool.

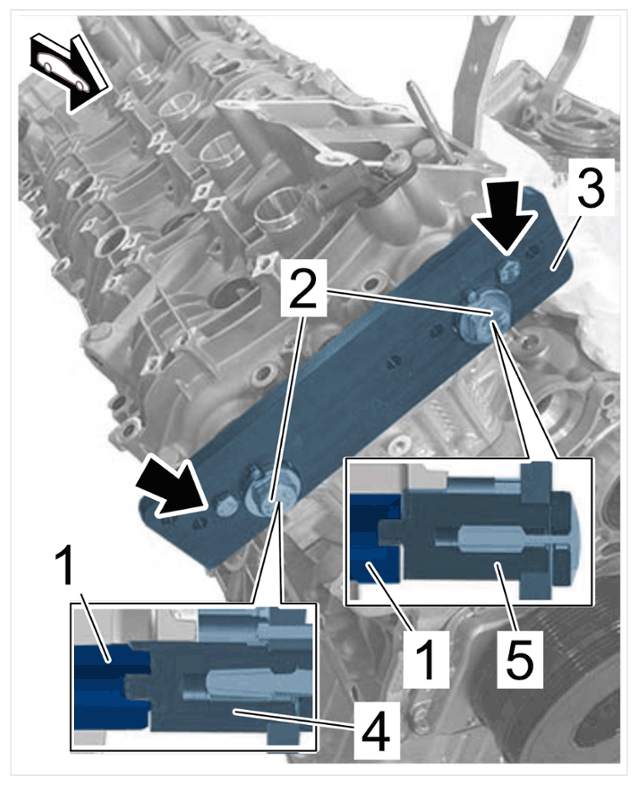

- Insert >
T40331 - camshaft clamp-2 to 5-
.
- 6.1 Tightening adapter for camshaft clamp T40331/2 on camshaft housing 9 Nm
- 6.2
Insert camshaft clamp T40331/1 -3-
on the right cylinder bank 2 with the inscription "B" facing away from the engine.
Turn the crankshaft back and forth slightly to do this, if necessary.
- 6.3
Insert camshaft clamp T40331/1 -3-
on the right cylinder bank 1 with the inscription "B" facing away from the engine.
Turn the crankshaft back and forth slightly to do this, if necessary.
- 6.4 On the right cylinder bank 1, secure camshaft clamps T40331/1, T40331/8 and T40331/5 -3 - to 5- using T40331/9 -2- .
- 6.5 On the right cylinder bank 2, secure camshaft clamps T40331/1, T40331/8 and T40331/5 -3 - to 5- using T40331/9 -2- .
- 6.6 Tighten screws on the camshaft clamps -Arrows- Nm .
Camshaft clamp
- Secure the crankshaft.

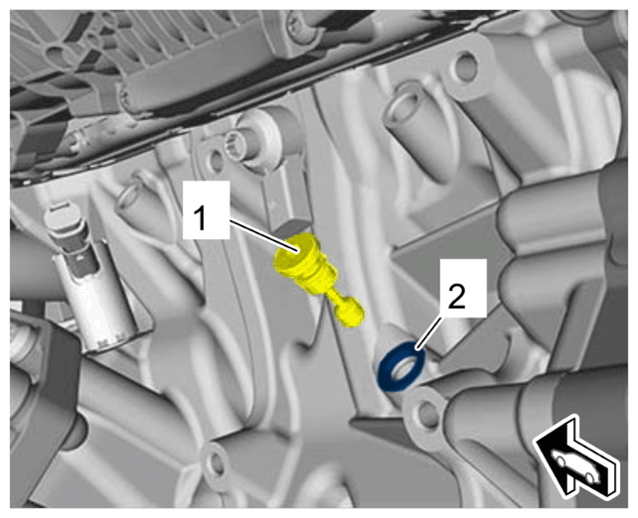

- 7.1 Unscrew screw plug -1- from bore -2- .
- 7.2
Screw >
T40069 - locking pin
into the bore -2-
by hand.
Turn the crankshaft back and forth slightly to do this, if necessary.
- 7.3 Tighten > T40069 - fastening screw. 20 - N.m
Securing crankshaft
Information

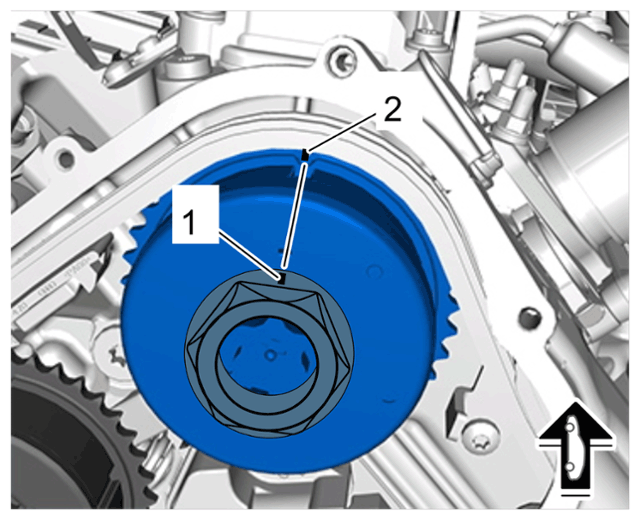

The > T90001 - counterhold tool can only be inserted at one position. To do this, the markings -1 and 2- on the camshaft actuator and chain housing must be aligned.
T90001 on camshaft actuator

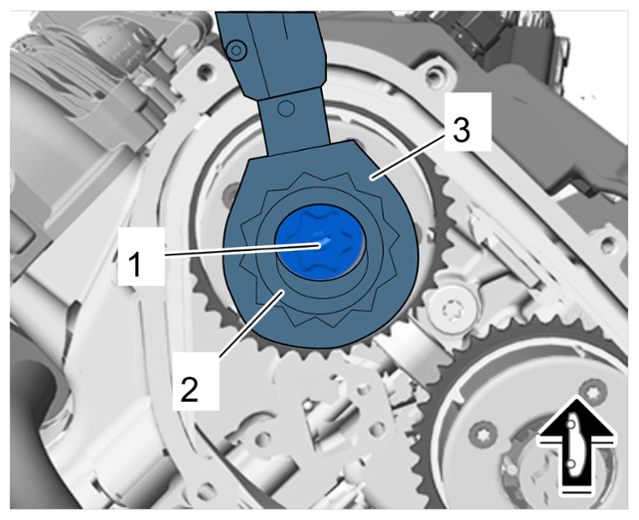

- Fit > VAS 261 001 - ring spanner insert, a/f 41
with > T90001 - counter-hold tool
on the camshaft actuator. > T90001 on camshaft actuator
T90001 on camshaft actuator
- Release camshaft actuator -1-
.
- 9.1
Counter the camshaft actuator -1-
using > VAS 261 001 - ring spanner insert, a/f 41-2-
and > T90001 -counterhold tool
and loosen using > T90000 - socket E24-3-
.
Do not unscrew the camshaft actuator -1- from the camshaft.
- 9.2
Mark camshaft actuators and camshafts for re-installation using a coloured marker.
Camshaft actuator
- 9.1
Counter the camshaft actuator -1-
using > VAS 261 001 - ring spanner insert, a/f 41-2-
and > T90001 -counterhold tool
and loosen using > T90000 - socket E24-3-
.

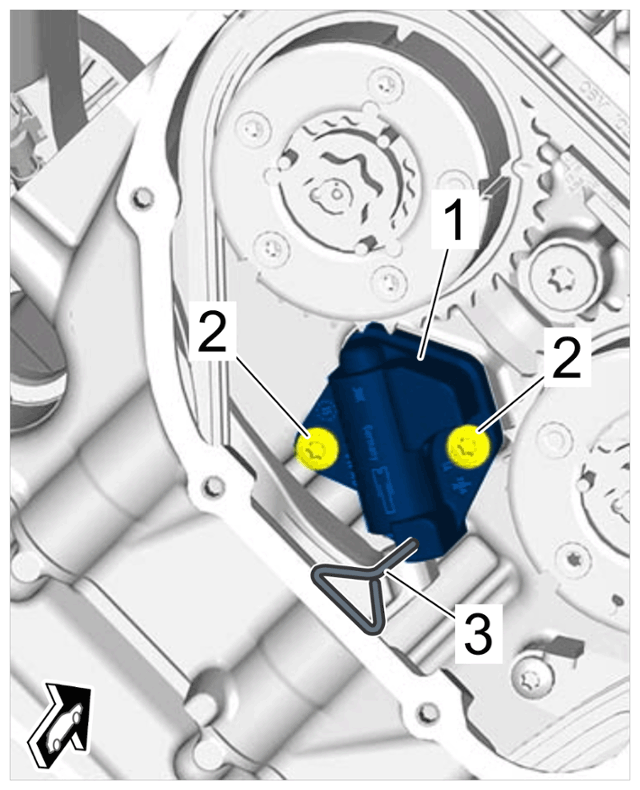

- Lock both chain tensioners -1-
.
Information
The chain tensioner piston is oil-damped and can only be pressed back slowly and with constant pressure.
- 10.1 Press the chain tensioner piston -1- back fully using a screwdriver.
- 10.2 Fix the chain tensioner -1- in place using > T03006 - locking pin-3- .
Securing the chain tensioner
- Unscrew control valves and remove camshafts actuators.

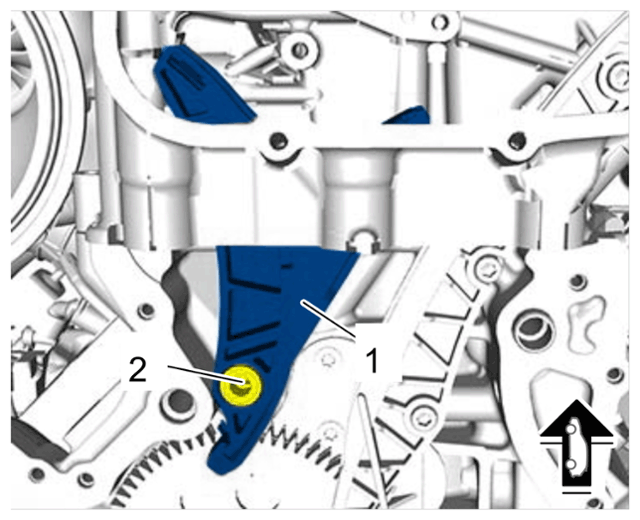

- Remove tensioning rail -1-
.
- 12.1 Unscrew bearing pin for tensioning rail -2- .
- 12.2 Remove tensioning rail -1- .
Tensioning rail for cylinder bank 1
- Remove timing chains together with tensioning rail.
