Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Front level sensor to frontaxle carrier	M8 thread	Tightening torque	20 Nm (15 ftlb.)
Screw securing support to lock carrier	Item 1	Tightening torque	3.6 Nm (2.6 ftlb.)

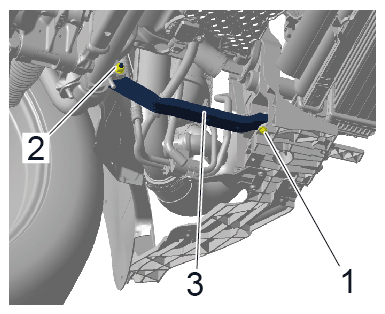

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Support
Nut securing support to lock carrier	Item 2	Tightening torque	23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Support
Fastening screws	Heat shield to frontaxle carrier	Tightening torque	9 Nm (6.5 ftlb.)
Fastening screw	Heat shield to frontaxle carrier	Tightening torque	20 Nm (15 ftlb.)
Fastening screws	Retainer plate to frontaxle carrier	Tightening torque	30 Nm (22 ftlb.)
Fastening screw	Step 1, frontaxle carrier to body	Initial tightening	115 Nm (85 ftlb.)
Fastening screw	Step 2, frontaxle carrier to body	Final tightening	+ 90°
Fastening screw	Step 1, frontaxle carrier to body	Initial tightening	115 Nm (85 ftlb.)
Fastening screw	Step 2, frontaxle carrier to body	Final tightening	+ 90°
Fastening screws	Engine mount to frontaxle carrier	Tightening torque	55 Nm (41 ftlb.)
Lower control arm to frontaxle carrier	M12 thread/always use new screws or bolts and nuts following removal	Initial tightening	70 Nm (52 ftlb.)
Lower control arm to frontaxle carrier	M12 thread/always use new screws or bolts and nuts following removal	Final tightening	+ 180°
Fastening nut for ground line in front right wheel housing	Item 2	Tightening torque	9 Nm (6.5 ftlb.)

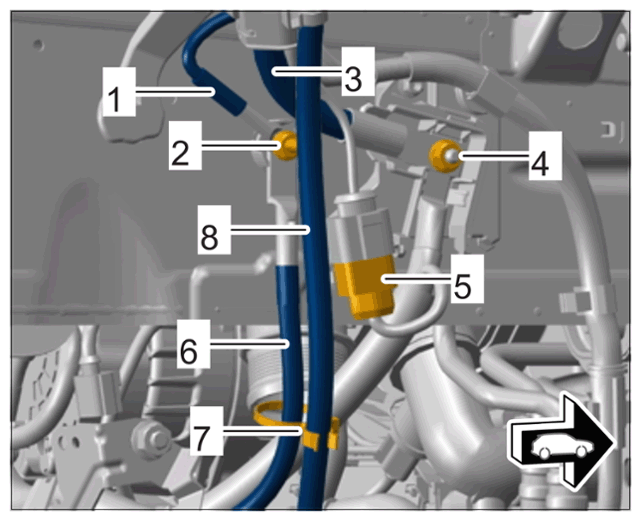

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line in front right wheel housing
Fastening nut for ground line in front right wheel housing	Item 4	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line in front right wheel housing
