Removing Control Unit For Fuel Pump

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Remove the ignition key and switch off load before disconnecting or removing load.

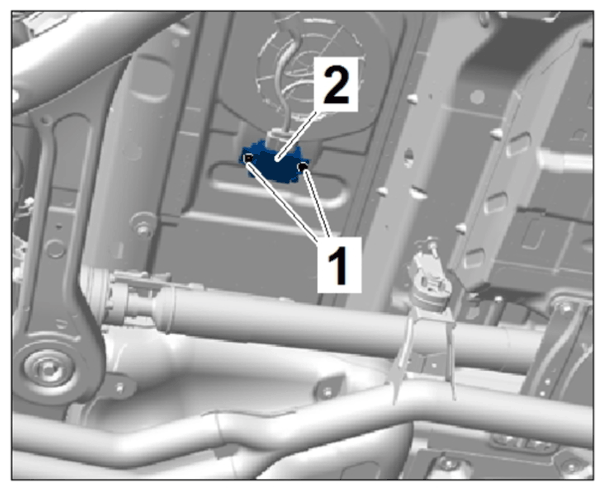

1. Screw off fastening nuts -1-  and remove control unit for fuel pump -2-  from the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Control unit for fuel pump

   Information

   Always comply with the regulations for handling ESD-sensitive components!

   • Always wear approved work clothes and shoes when carrying out assembly work.
   • Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
   • Do not touch electric pins and plug contacts.

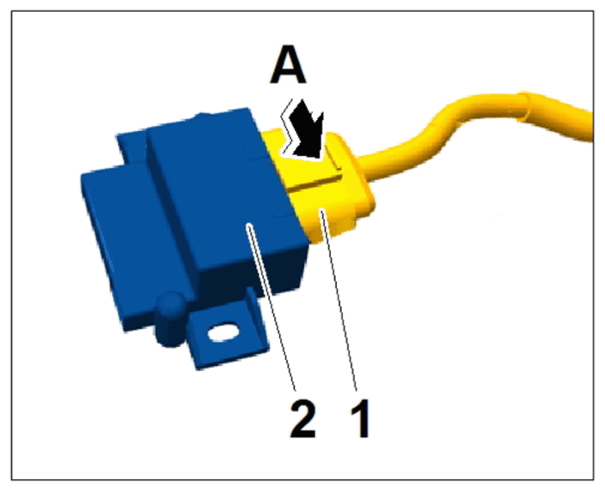

2. Release electric plug connection -1-  (-arrow A-  ) and disconnect it from the fuel pump control unit -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection
