Installing Control Unit For Fuel Pump

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Installation is performed in reverse order. Pay particular attention to the following: Tighten fastening nuts -1-  to > Tightening - torque 8 Nm (6 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

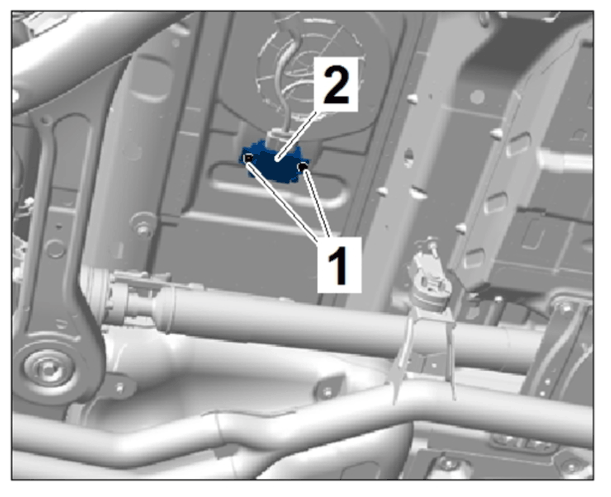

   Control unit for fuel pump
