Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing lock peg to B-pillar Item 2 Tightening torque 25 Nm (19 ftlb.)

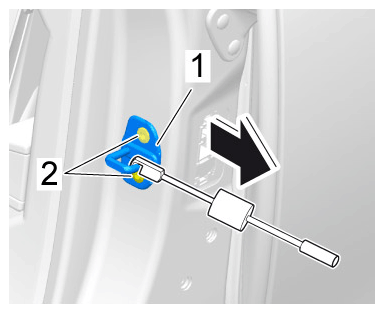

G15159183Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock peg (striker pin)
