Technical Values: Overview
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

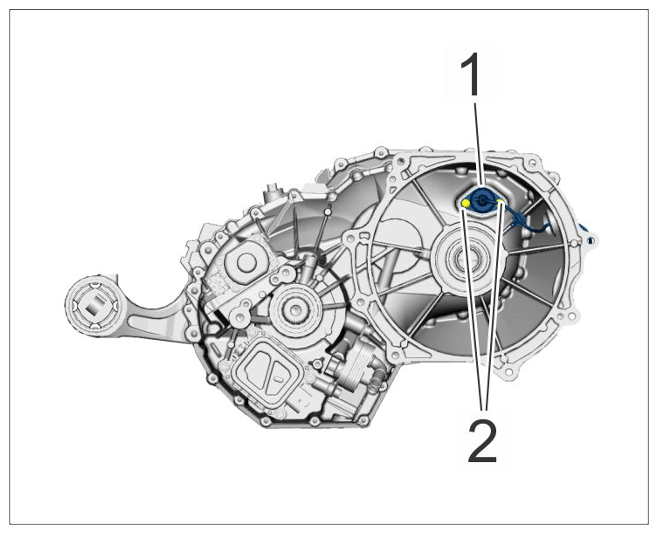

| position sensor on transmission | Screws M5 - Item 2 | Tightening torque | 6 Nm (1.5 ftlb.) | ||
| speed sensor on transmission | Screws M6 - Item 4 | Tightening torque | 8 Nm (3 ftlb.) | ||
| Temperature sensor (Gear sump) at the transmission | Screws M6 - Item 6 | Tightening torque | 8 Nm (4.5 ftlb.) | ||
| Position sensor (bottom) on transmission | Screws M5 - Item 8 | Tightening torque | 6 Nm (4.5 ftlb.) | ||
| Transmission slide/cable to housing | Screws M6 - Item 2 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Solenoid for transmission |
|||||
