Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Servo motor to automatic transmission Screw, M8 x 20 - Item 2 Tightening torque 20 Nm (15 ftlb.)

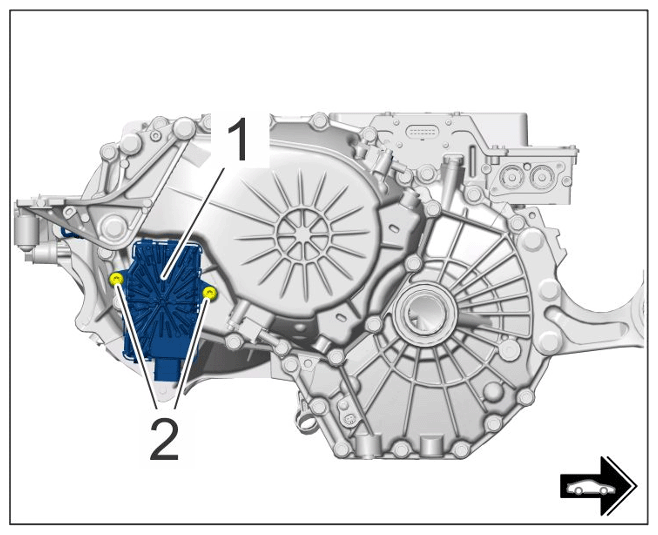

G15552274Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on servo motor
external current supply charging device current 90 A
