Replacing Radial Shaft Seal

1. Replace radial shaft seal -1-  if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

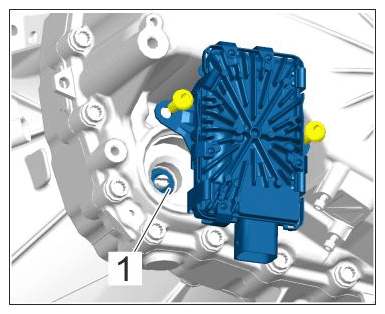

Radial shaft seal on gear actuator

Information

• Be careful when spot drilling the seal to avoid damaging the housing  .
• Carefully remove drill chips and dirt  .

1. 1.1 Remove old radial shaft seal -1-  using > VAS 6965 - puller set  .
2. 1.2 Coat the outside of the new radial shaft seal -1-  with transmission oil and tap it in fully using > T90018 - pressure piece  .
