Installing Servo Motor

Information

Use new safety screws PAF009212  during re-installation.

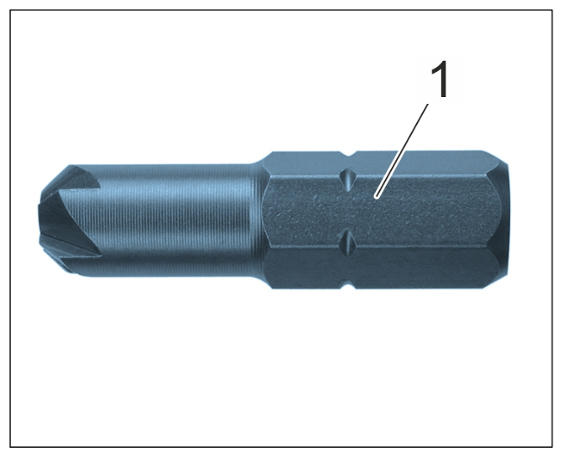

Tighten the safety screws with a > VAS 262 021 - bit insert-1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Grease new O-rings with Syntheso Glep.

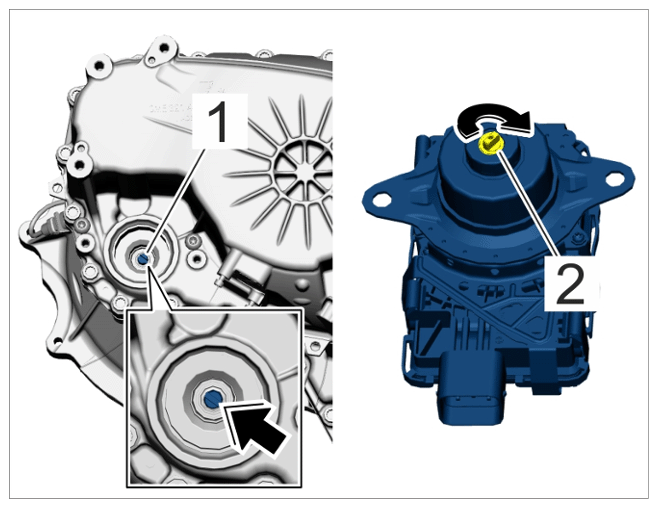

2. Check the position of the groove -1-  in the transmission -Arrow-  and position the servo motor driver -2-  as required.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Positioning servo motor driver

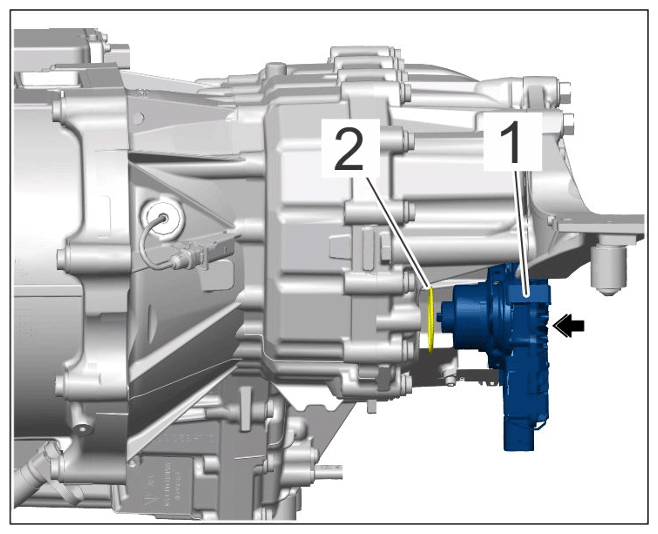

3. Insert servo motor -1-  (-Arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Servo motor with O-ring (installation)

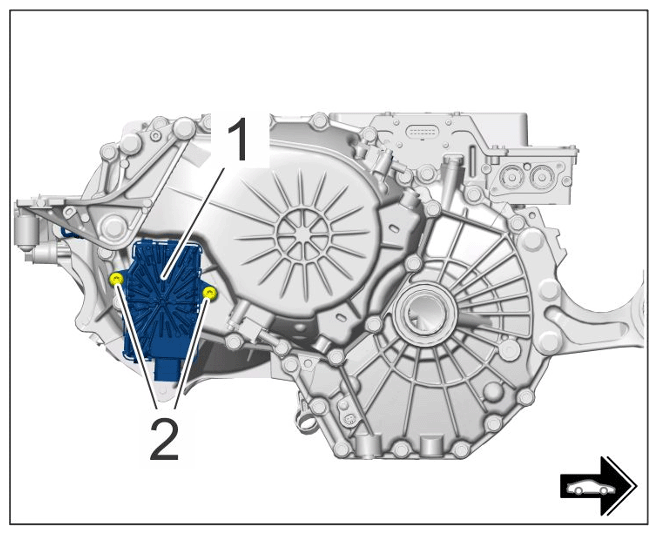

4. Secure servo motor -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on servo motor

1. 4.1 Hold servo motor -1-  in installation position.
2. 4.2 Fit new screws -2-  and tighten using > VAS 262 021 - bit  .

   > Tightening torque 20 Nm (15 ftlb.)

3. 4.3 Connect cable plug and check that it is seated securely.
